Futaba S-U301 Standard Digital Servo PWM/S.BUS2 3.9kg/0.16s 4.8V - 7.4V

Save 15%
FutabaSKU: FUT05102673-1

Price:
Sale price£22.49 Regular price£26.50
Stock:
In stock (7 units), ready to be shipped
 More payment options

Description

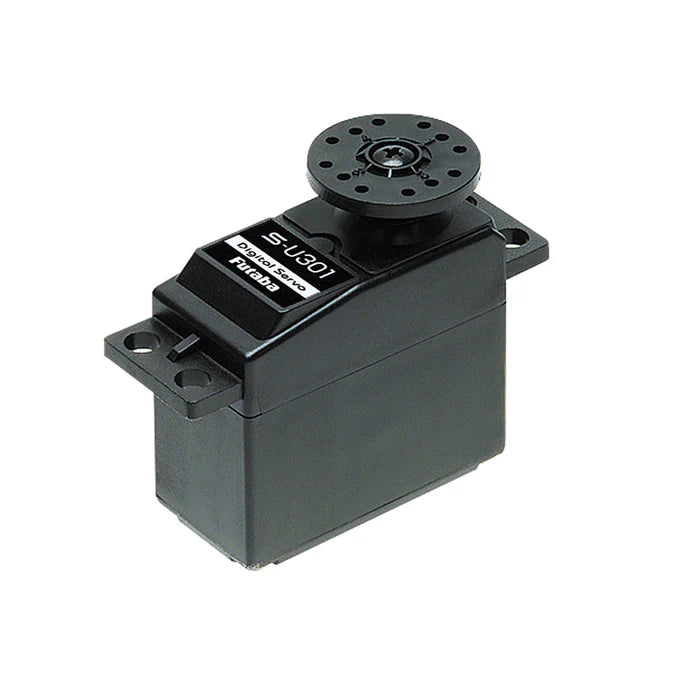

Futaba S-U301 Standard Digital Servo PWM/S.BUS2 3.9kg/0.16s 4.8V - 7.4V FUT05102673-1

The S-U301 Standard Digital Servo supports PWM/S.BUS2 with 3.9kgf·cm torque and 0.16s/60° speed at 7.4V. It measures 40.5×20.0×36.1mm, weighs 36g, and operates between 4.8V and 7.4V.

The S-U301 is FUTABA's HV S.BUS2 standard servo for use in simple application areas such as RC cars, boats and model aircraft. Here you get the legendary FUTABA quality at a highly attractive price. The powerful universal servo has S.BUS2 technology and can be fully programmed. The previous types S3001, S3151 and S3073HV will be replaced by the FUTABA S-U301 Servo.

FEATURES:
· Powerful S.BUS2 digital servo with plastic gear
· Robust plastic housing
· High resolution
· High repeat accuracy
· Low-wear potentiometer with indirect drive

What's in the Box:
  • S-U301 Standard Digital Servo
  • Horns
  • Mounting Hardware
  • Command Protocol - PWM, S.BUS, S.BUS2
  • Size - Standard
  • Dimensions - 40.5×20×36.1mm
  • Circuit - Digital
  • Weight - 36 g
  • Voltage Range - 4.8V - 7.4V
  • Max Torque (kg/cm) - 3.9
  • Max Speed (sec/60°) - 0.16
  • Spline - 25T (Ø6mm)
  • Motor - Cored
  • Gears - Resin
  • Motor Detail - 3-Pole Cored
