Name: Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V FUT05102750-3
Brand: Futaba
SKU: FUT05102750-3
Price: 116.99 GBP
Availability: InStock

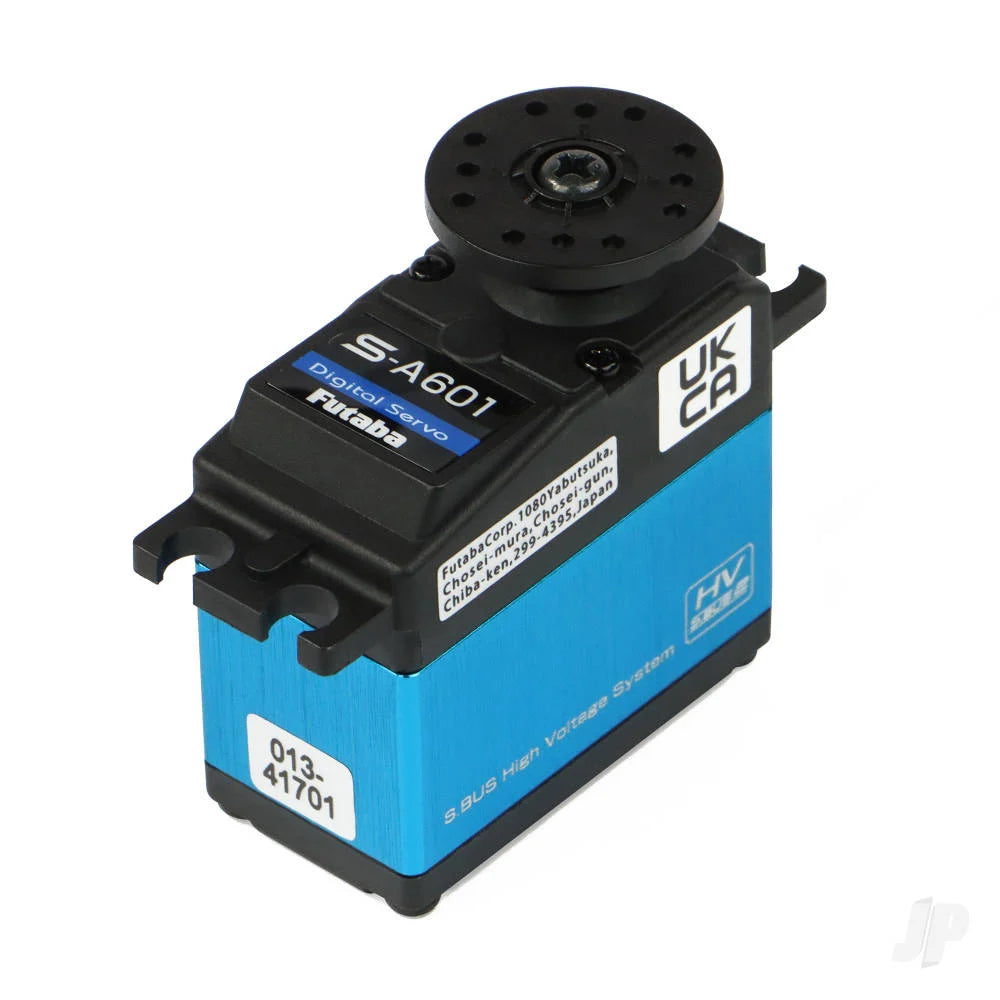

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V FUT05102750-3

Roll over image to zoom in Click on image to zoom

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V FUT05102750-3

With an incredible 41 kg.cm of torque at 7.4V the S-A601 offers, arguably, the perfect balance between, size, torque, cost and quality. Dual ball raced with metal gears and an anodised metal case centre, the 601 is programmable, supports S.Bus2 and features soft start technology. Favoured by pilots of large scale aircraft who demand a robust and responsive control system, the S-A601, with its S.Bus2 compatibility, allows easy programming, clean wiring integration and ultimate peace of mind.

Features

High torque
High voltage
Supports S.Bus2
Soft start
Dual ball raced
Programmable
Standard case size

1x S-A601 Coreless Digital Servo

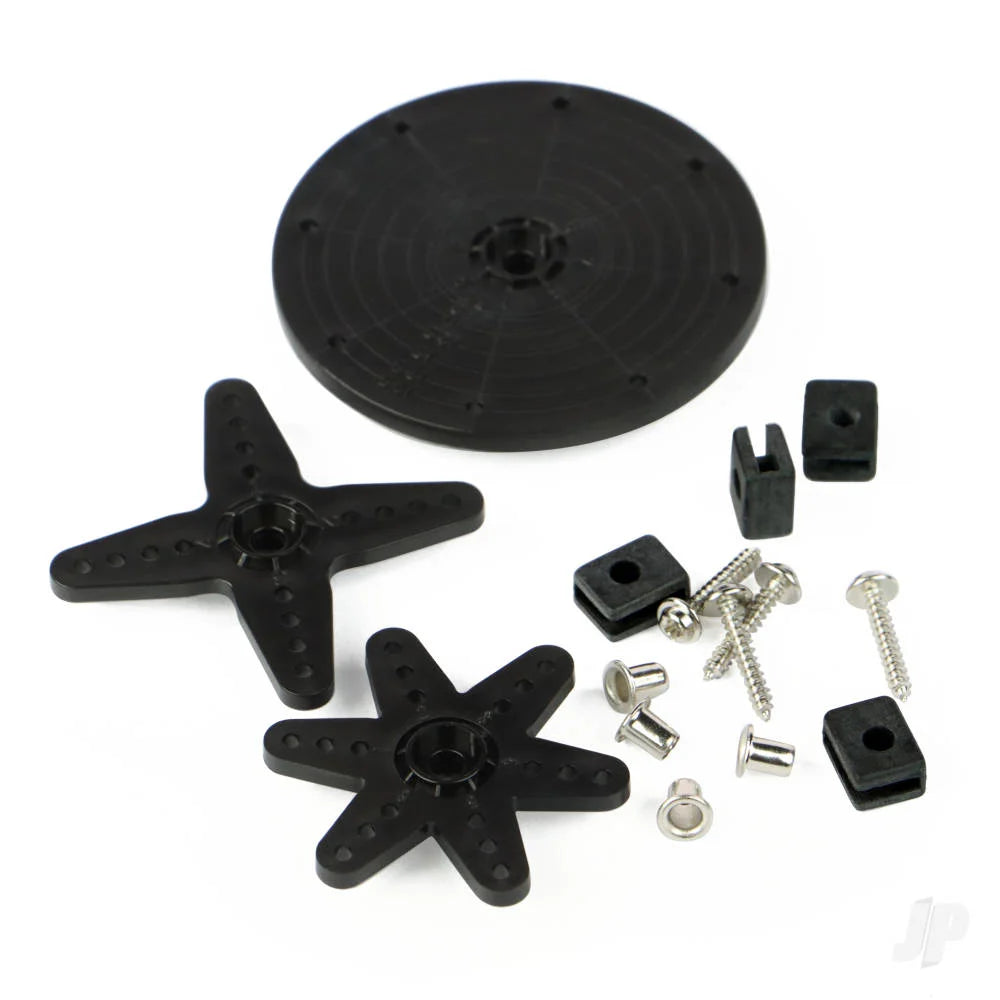

1x Horn and mounting screw set
1x Instruction sheet
1x Channel ID decal sheet

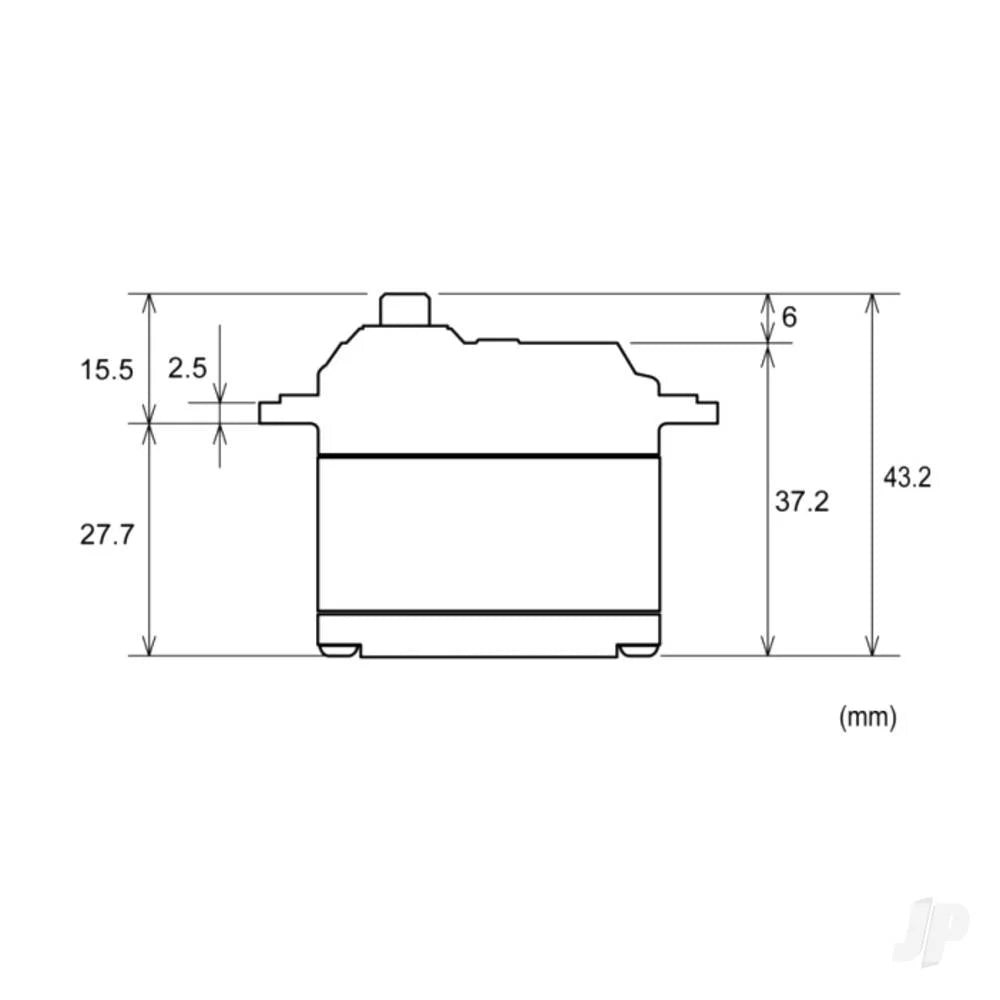

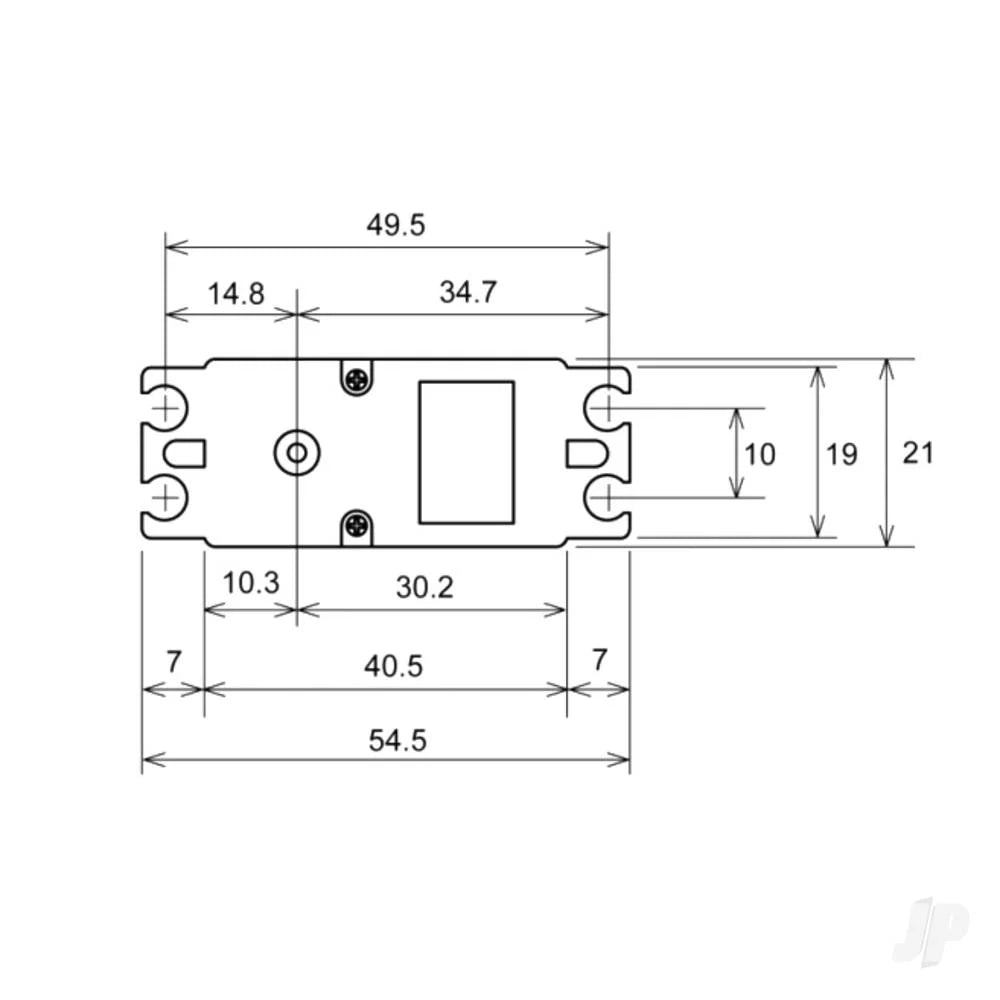

L × W × H	40.5 × 21 × 37.2mm / 1.59 × 0.82 × 1.47in
Weight	74g / 2.61oz
Speed (sec/60°)	0.11s @7.4V
Torque	41kg·cm @7.4V
Size	Standard
Colour	Black / Blue
Material	Plastic
Case Type	Metal / Engineering Plastic
Colour Family	Blue
Bearing	Dual Ball Bearing
Gear Type	Metal
Motor Type	Coreless
Control Circuit	Digital
Network Protocol	PWM, S.Bus2
Operating Voltage	4.8-8.4
Spline Size	25T (Ø6mm)
Programmable	Yes

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V FUT05102750-3

Description

Futaba S-A601 Coreless Digital Servo PWM/S.Bus2 41kg 0.11s 4.8 - 7.4V FUT05102750-3

Features

Contents
