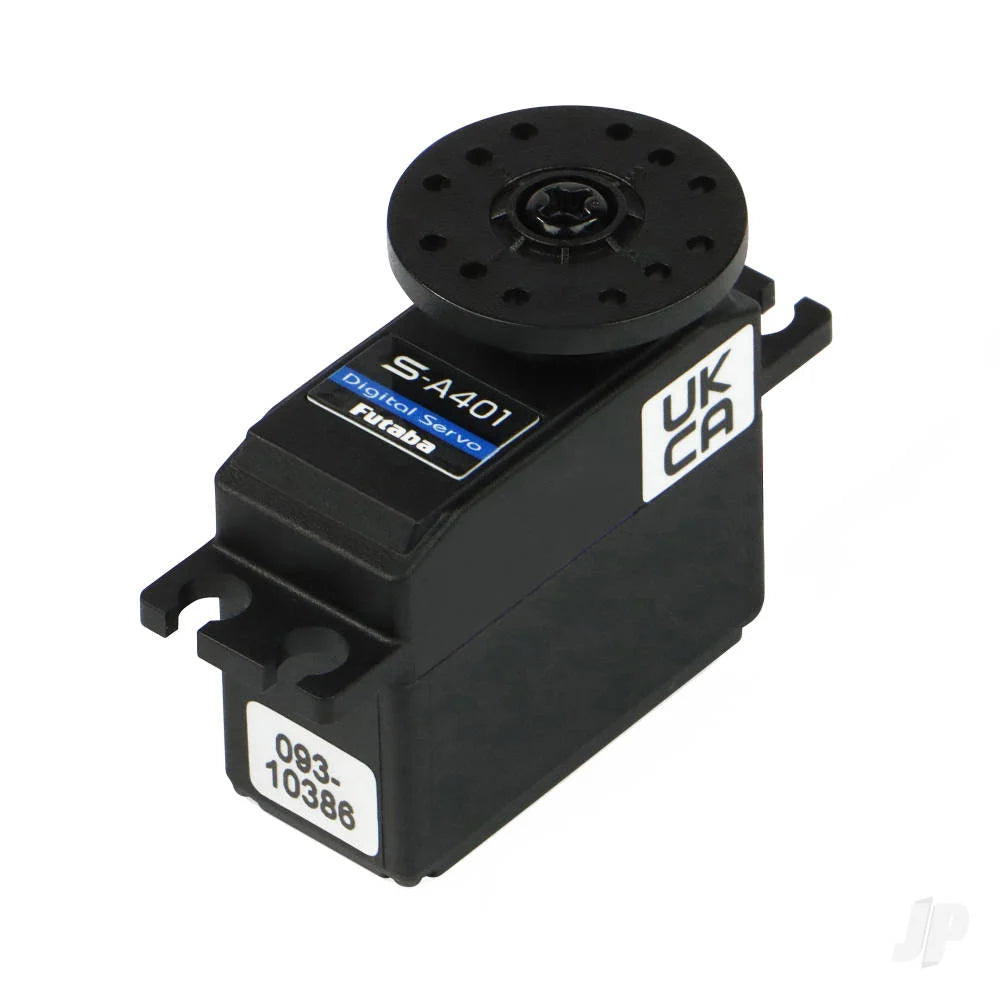

Name: Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V FUT05102764-3
Brand: Futaba
SKU: FUT05102764-3
Price: 85.99 GBP
Availability: InStock

Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V FUT05102764-3

Roll over image to zoom in Click on image to zoom

Futaba S-A401 Mini Coreless Digital Servo PWM/S.Bus2 5.7kg 0.10s 6.0V - 7.4V FUT05102764-3

With an emphasis on its modest size coupled with hugely respectable torque and speed ratings the S-A401 is the sort of servo you buy when you're looking for a fit-n-forget installation that'll still be doing its thing decades into the future. It's a servo that'll reward your investment with precision, silky-smooth operation and outstanding durability.

Features

High voltage
Metal gear
Aluminium spline
S.Bus2 compatible
Coreless motor
Twin bearing supported shaft
Programmable
Soft Start

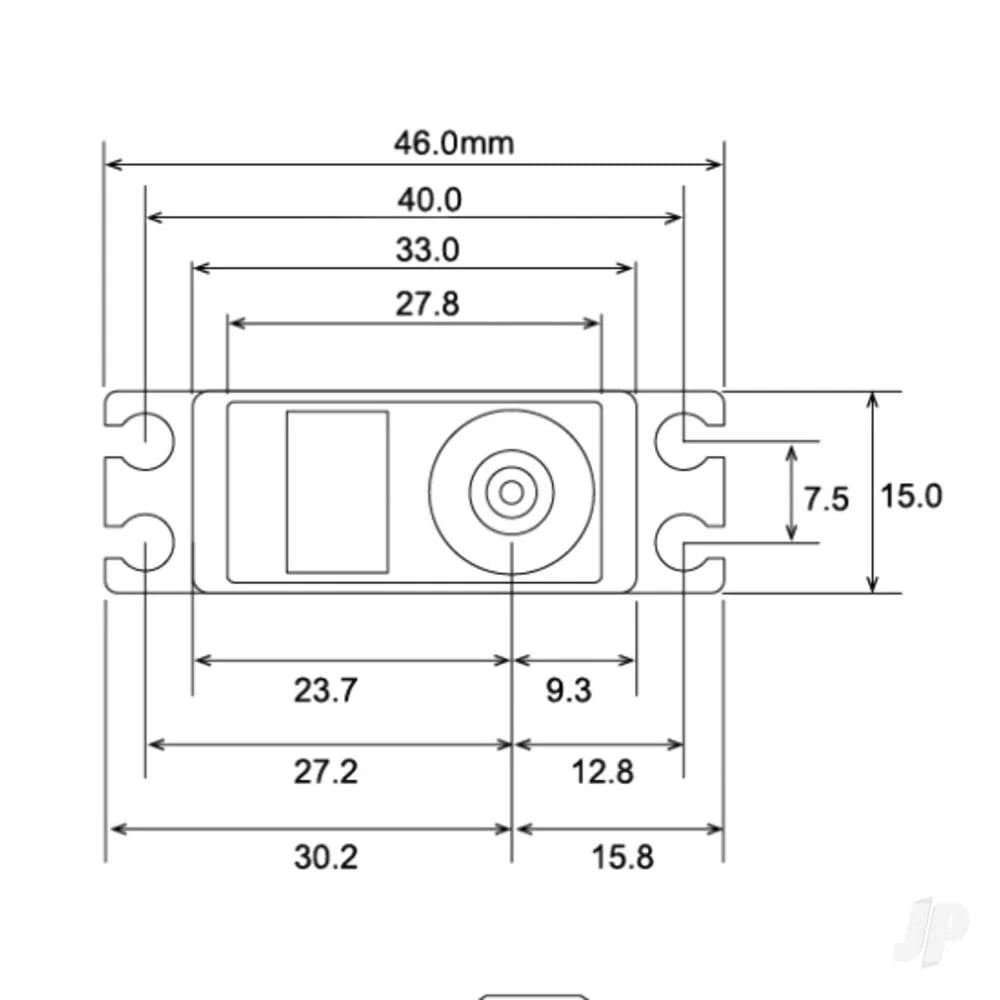

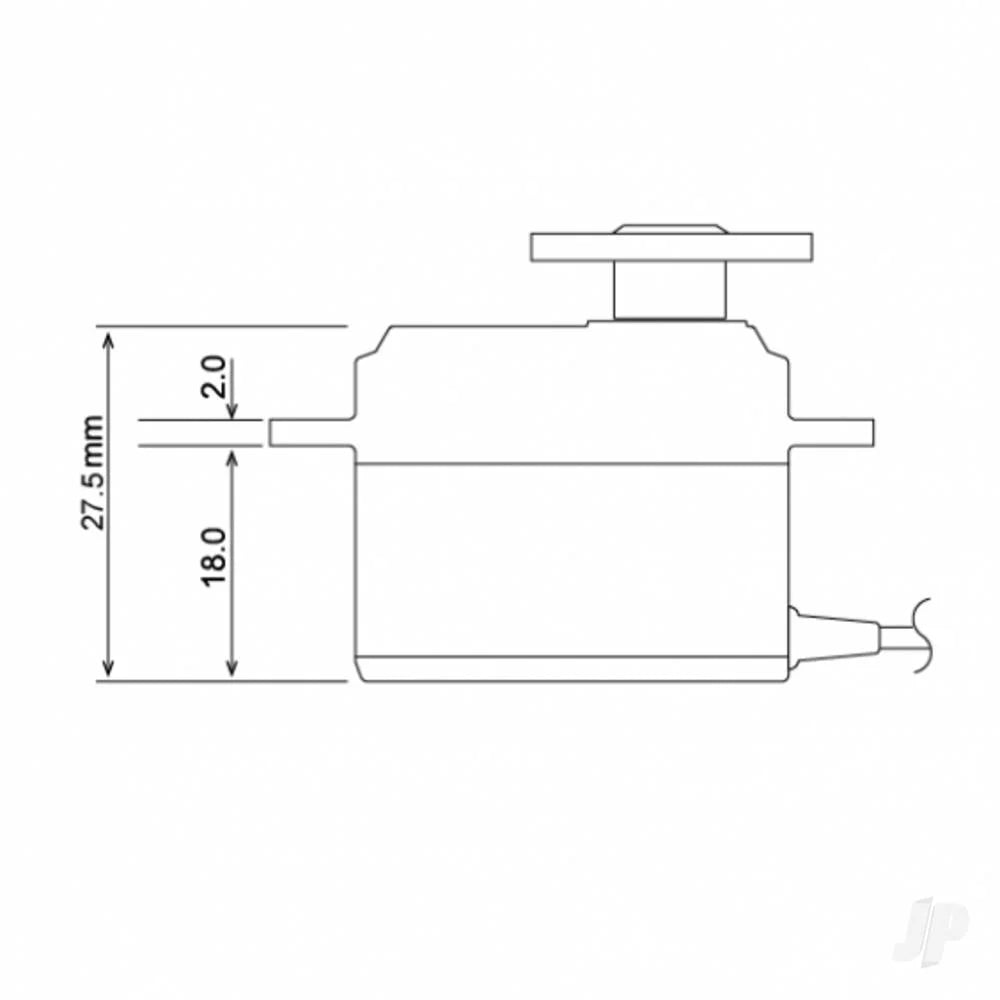

L × W × H	33 × 15.0 × 25.5mm / 1.30 × 0.59 × 1.08in
Weight	27g / 0.95oz
Speed (sec/60°)	0.12s @6.0V / 0.10s @7.4V
Torque	4.5kg·cm @6.0V / 5.7kg·cm @7.4V
Size	Mini
Colour	Black
Material	Plastic
Colour Family	Black
Gear Type	Metal
Motor Type	Coreless
Control Circuit	Digital
Gear Description	Metal 2-4 stage gear. Aluminium final stage gear
Network Protocol	PWM, S.Bus2
Operating Voltage	4.0 - 8.4
Spline Size	25T (Ø6mm)
