Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3
Roll over image to zoom in Click on image to zoom
Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3

Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg/0.13s 4.8V - 7.4V

Save 10%
FutabaSKU: FUT05102733-3
Price:
£49.48 £54.99
Stock:
Only 2 units left
 More payment options

Description

Futaba S-A301 Standard Digital Servo PWM/S.BUS2 9kg 0.13s 4.8V - 7.4V FUT05102733-3

Digital coreless standard servo for aircraft. Supports S.BUS2

Key Features:

  • Size: 40×20×38.1mm
  • Weight: 47g
  • Torque: 9.0kgf cm (7.4V) / 8.5kgf cm (6.6V)
  • Speed: 0.13sec/60° (7.4V) / 0.14sec/60° (6.6V)

What's in the Box:

  • S-A301 Standard Digital Servo
  • Horns
  • Mounting Hardware
  • Command Protocol - PWM, S.BUS, S.BUS2
  • Size - Standard

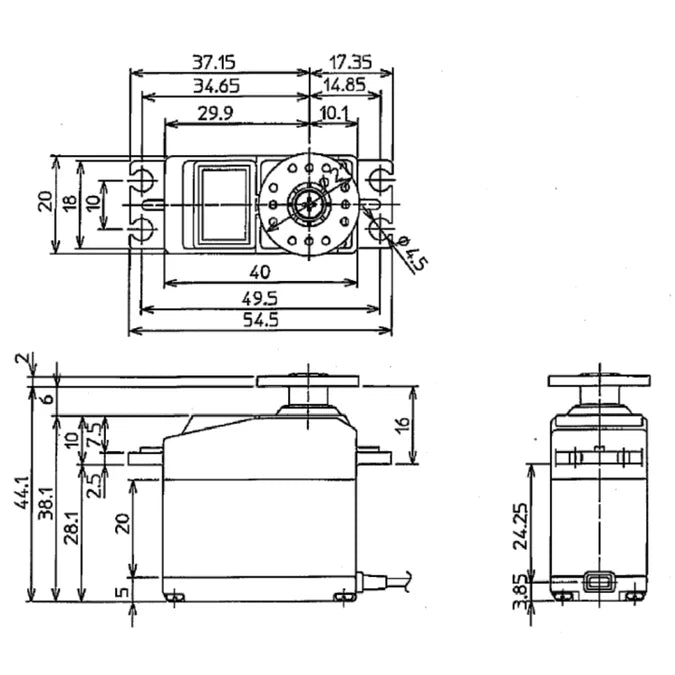

  • Dimensions - 40×20×38.1mm
  • Circuit - Digital
  • Weight - 47 g
  • Voltage Range - 4.8V - 7.4V
  • Max Torque (kg/cm) - 9
  • Max Speed (sec/60°) - 0.13
  • Spline - 25T (Ø6mm)
  • Motor - Coreless
  • Gears - Metal
  • Gear Detail - Metal 2-3 stage gear. Aluminium final stage gear
