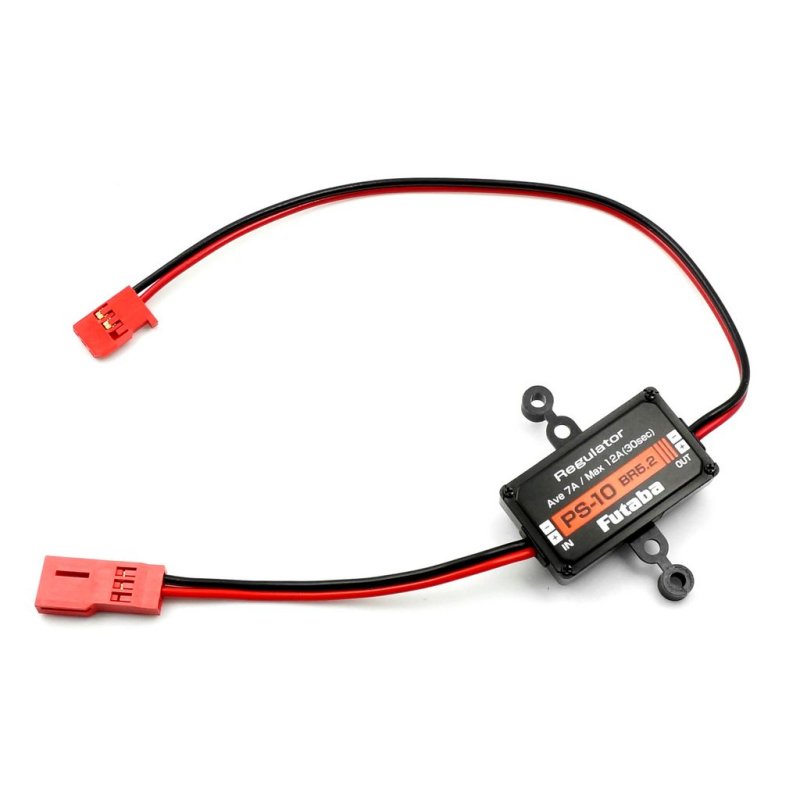

Futaba Receiver Power Regulator (10 Amps) RPS-10
Perfect for those wanting to take advantage of the light weight and high capacities of the latest Li-Po and Li-Fe battery packs, but running 4.8-6.0v receivers and servos, the new PS-10 voltage regulator from Futaba converts input voltages from 6.0v to 12.6v to a constant 5.2v output to the receiver/servos, with a maximum continuous current of 7.0 Amps and peak of 13.0Amps.
A bonus is the increase in receiver/servo reliability due to the non varying nature of the output voltage, eliminating the high initial peak voltage of a freshly charged battery.
Specifications
-
Item Futaba PS-10 voltage regulator for servo and RX
-
Material Not specified
-
Model Number FURPS10
-
Compatibility RC servos and receivers
-
Output Voltage 5.2V regulated
-
Max Current 7A
-
Input Voltage Range 6V - 12.6V
