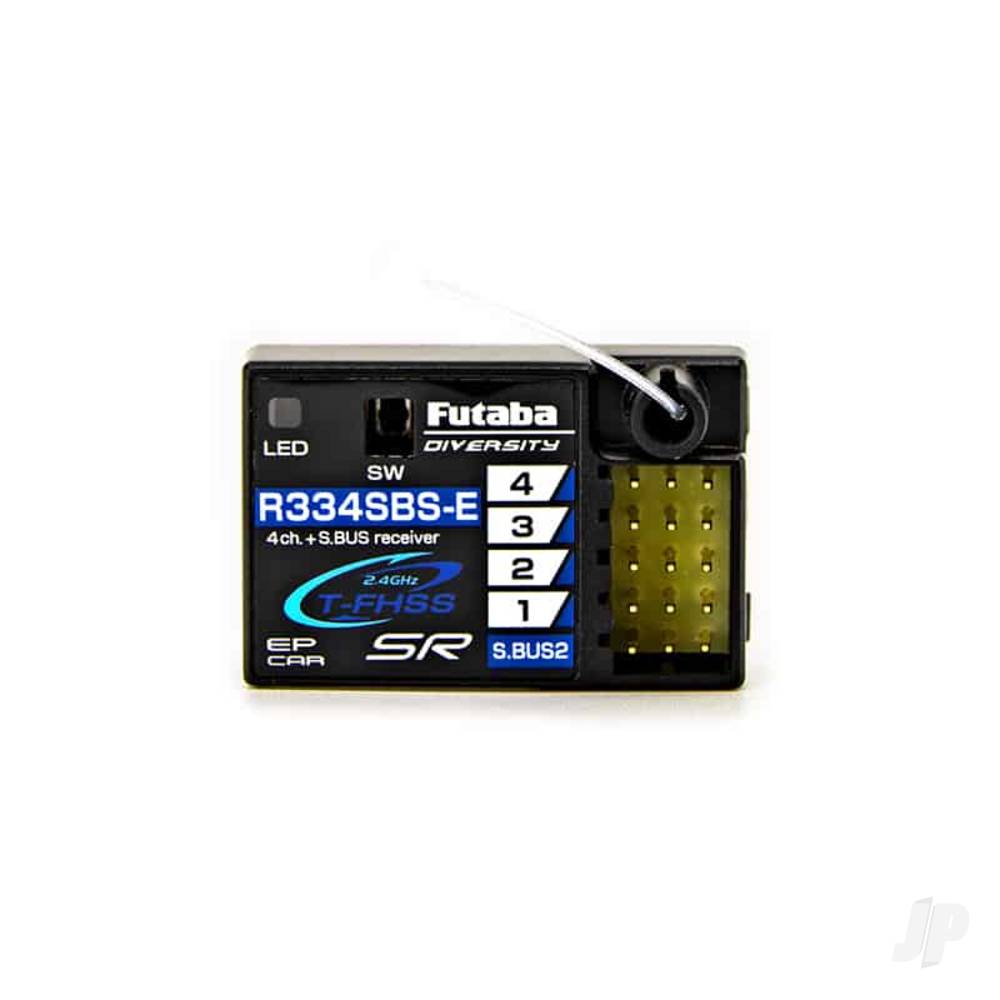

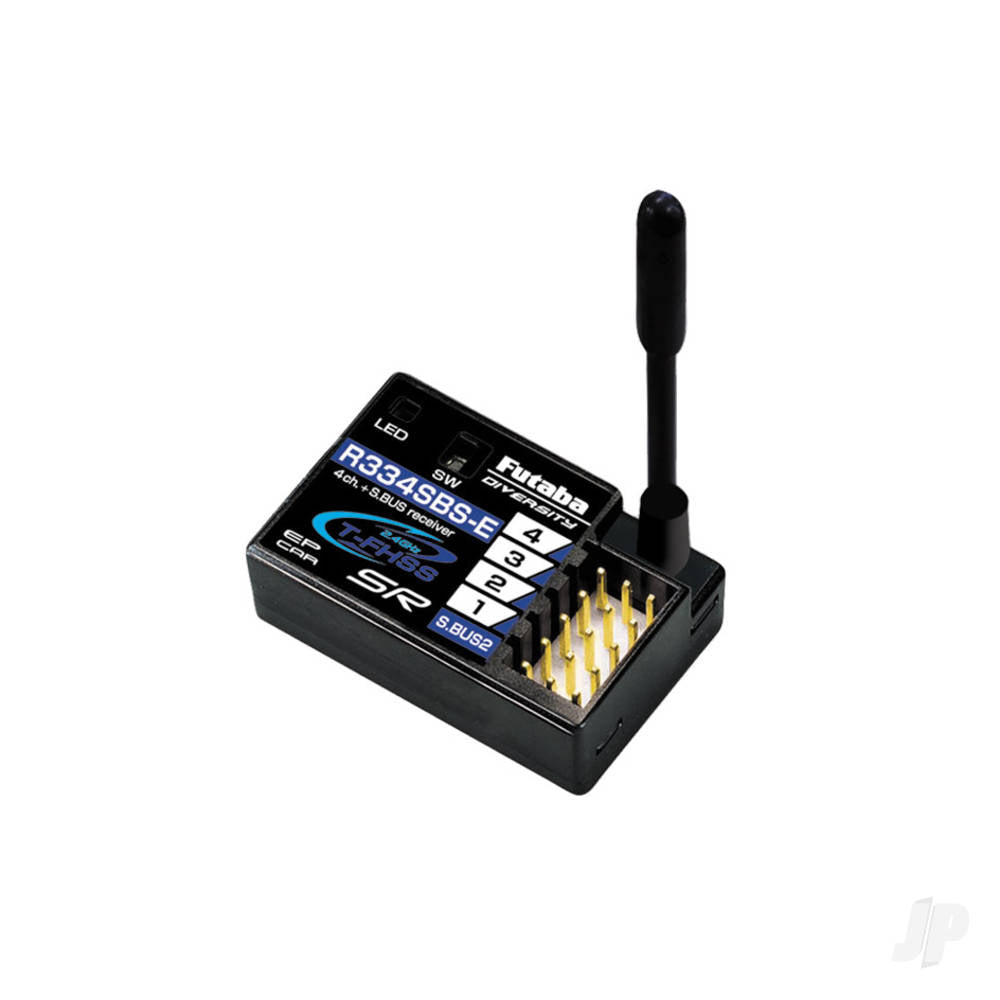

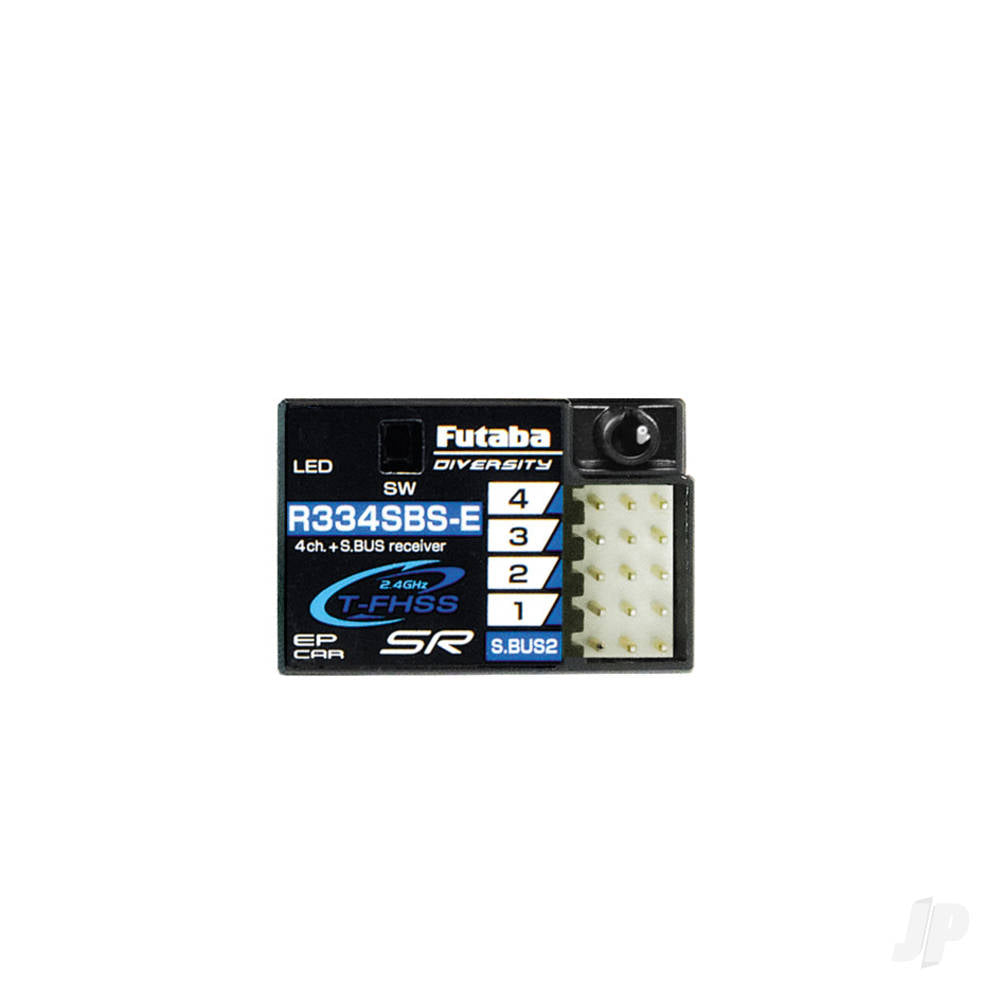

Futaba R334SBS-E 4-Channel T-FHSS SR Receiver - HV, 2.4GHz (P-R334SBS-E)

Futaba R334SBS-E 4-Channel T-FHSS SR Receiver - HV, 2.4GHz (P-R334SBS-E)

The R334SB-E was produced by Futaba specifically for electric RC cars. The compact form, built-in aerial and short external aerial allow it to be tucked away under a body shell for a clean and professional installation without any sacrifice to the performance. You can use the R334SB-E in 'T-FHSS' mode, the faster 'T-FHSS High Speed' mode or even the ultra-responsive 'T-FHSS SR' Super Response mode making it versatile for racers and sport drivers alike. The HV (High Voltage) capability allows you to power it from a wide range of sources (3.7 to 7.4V) so you can extract the best performance from your servos without complex wiring.

Designed exclusively for electric cars
Easy to install and use
T-FHSS SR 'Super Response' mode for ultra-fast operation
T-FHSS mode for normal use
Telemetry functionality
High voltage capability up to 7.4V

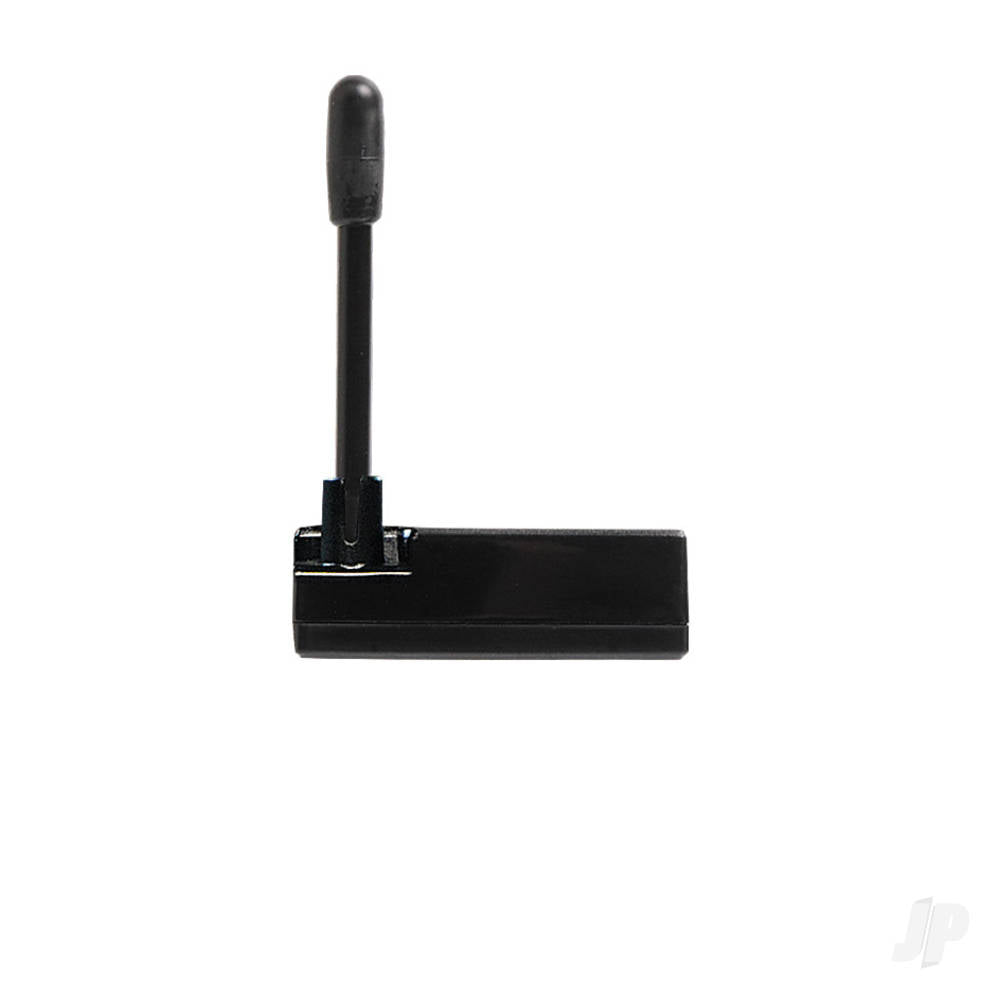

Diversity aerials, one built-in and one short to fit under the body shell
Only 7.2g in weight!

Please note: In SR model you need to use an SR capable servo, also the telemetry and s.bus functions are disabled to enable this fast speed.
In T-FHSS high speed mode, analogue servos cannot be used (Futaba digital or brushless required)

Specification:
Fail Safe: F/S and Battery F/S (Dependant on the Tx used)
Modulation: Futaba T-FHSS SR & T-FHSS
S.BUS: S.BUS2
Weight: 7.2g (0.25oz)
Input Voltage: 3.7 - 7.4V
Frequency: 2.4GHz
Channels: 4
Dimensions: 33.9 x 22.3 x 11.3mm (1.33 x 0.88 x 0.44”)
Aerial Length: 1x Built-In & 1x Protruding from the case
Power Output: 10mW EIRP
Diversity Antenna
Gold Plated Connectors
