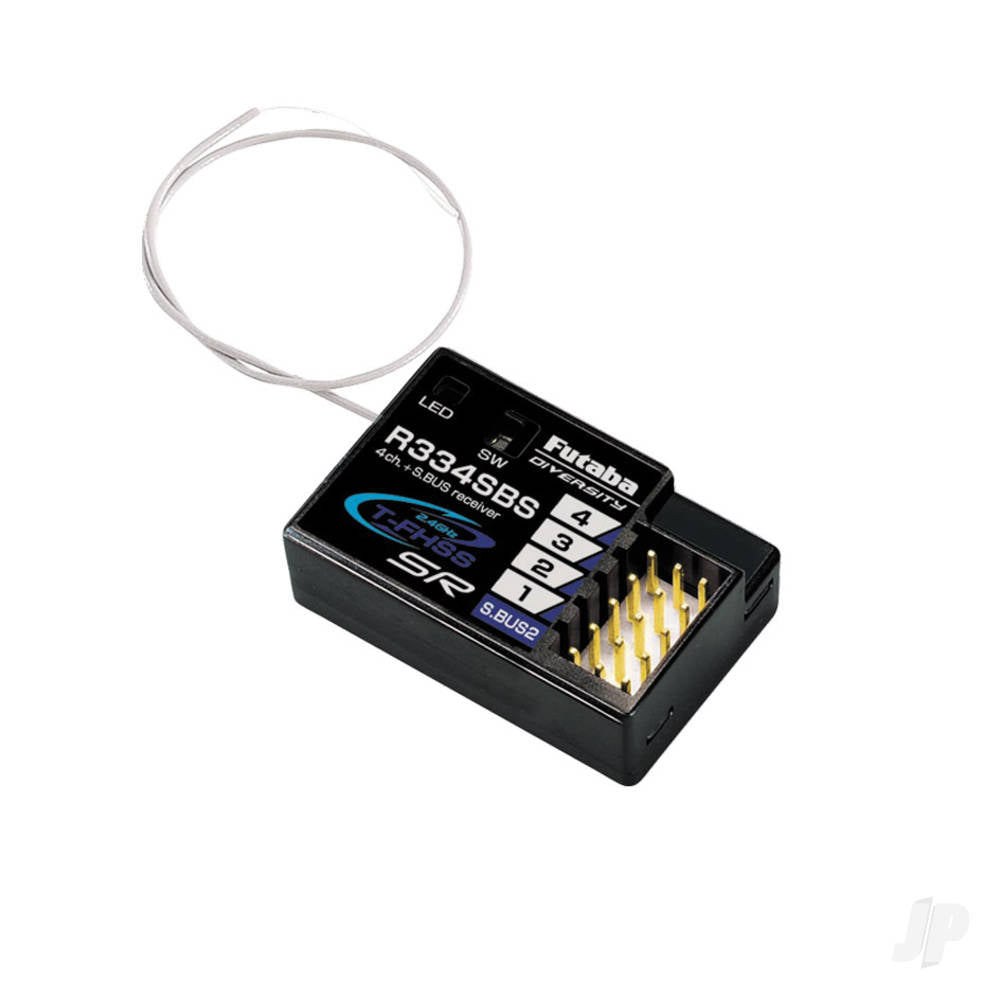

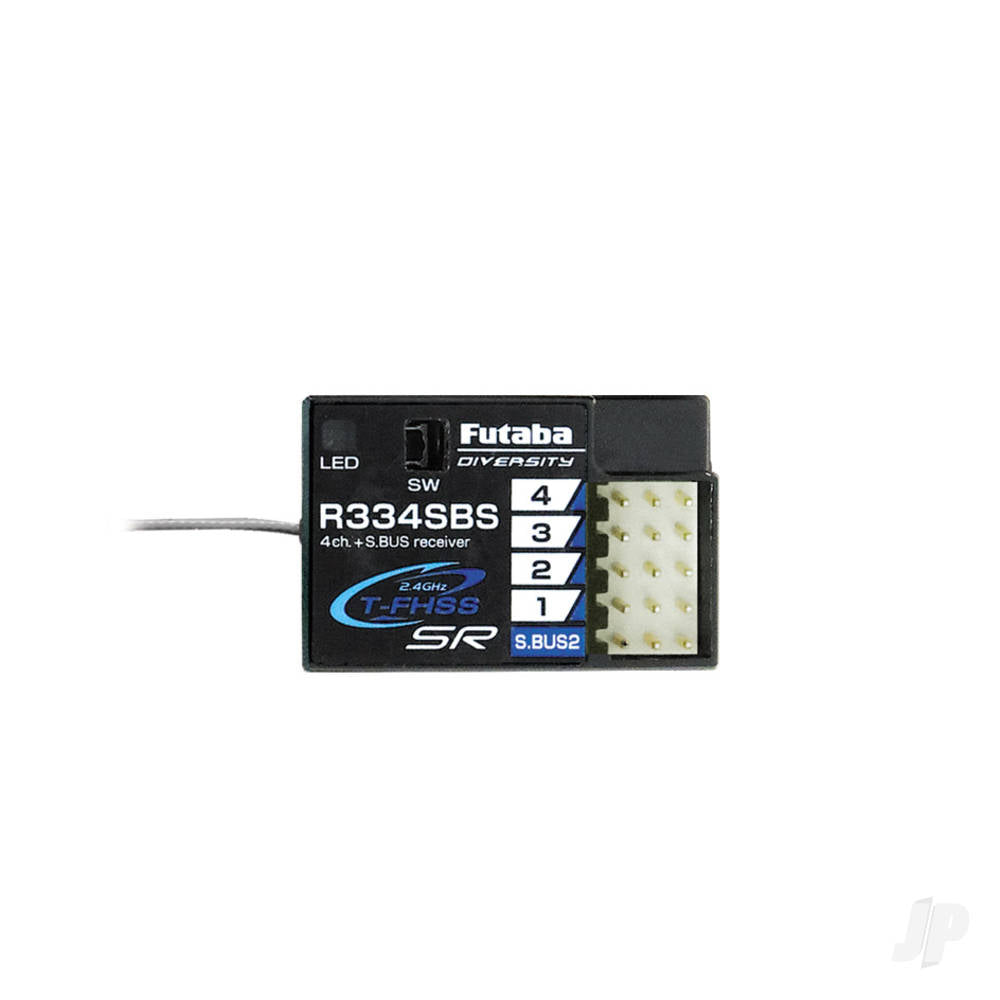

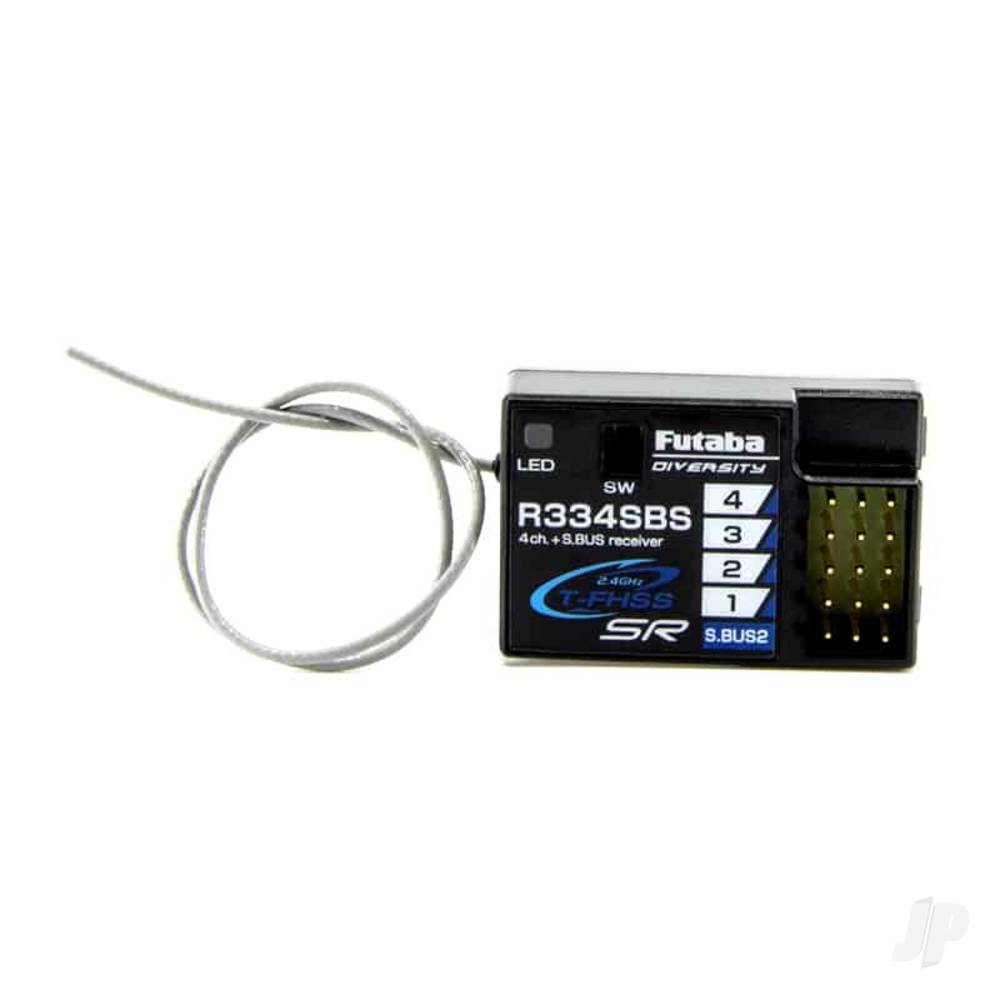

Futaba R334SBS 4-Channel T-FHSS SR Receiver - HV, 2.4GHz FUT05102646-3
The R334SBS is a high response speed ground based receiver using Futaba's ultra-fast T-FHSS SR system. The high speed response, small size and robust case make it a great choice for RC car racers but it's also equally at home in a performance boat. It is compatible with 3.7V to 7.4V power sources allowing a wide array of applications.
Uses the ultra-fast T-FHSS SR system
Capable of up to 7.4v (HV) power
Moulded plastic case
S.Bus2 capable
Weighs only 7.5g
Futaba Recommended Equipment:
Recommended low profile servo = Futaba BLS-571SV
To get the best from the Futaba SR system you can update many Futaba SV servos to activate SR mode within them. The following servos are SR compatible BLS371SV, BLS471SV, BLS571SV, BLS671SV, BLS671SVi, S9372SV & S9373SV.
Note: When using high voltage input power the connected equipment (servos etc..) must also be capable of high voltage use as the receiver does not regulate the voltage down.
Specification:
Modulation: T-FHSS SR Super Response & T-FHSS
Weight: 7.5g (0.26 oz)
Voltage: 4.8 - 7.4V
Channels: 4
Dimensions: 13.7 x 22.3 x 11.6mm
Frequency: 2.4GHz
Input Voltage: 3.7-7.4 V
Diversity Antenna
Gold Plated Connectors
