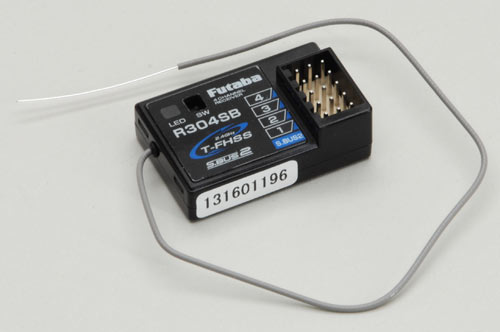

Futaba R304SB 4ch Receiver With Telemetry FHSS (S-Bus) (HV) 2.4GHz

Futaba R304SB 4ch Rx With Telemetry FHSS (S-Bus) (HV) 2.4GHz FUT05102588-3

4-channel PWM, S.BUS2 T-FHSS receiver, with telemetry, up to 7.4V.

The R304SB is a compact little 4 channel receiver using T-FHSS telemetry. Suitable for HV applications the R304SB has an operating voltage range of 3.6 up to 8.4v.

T-FHSS is a variation of Futaba's FHSS technology with the added bonus of telemetry. As standard the receiver will monitor its own voltage and transmit that back to your T-FHSS transmitter. There is also a S.Bus2 port included allowing you to plug in additional futaba telemetry sensors.

Features:

• Compact size
• T-FHSS telemetry
• Operating voltage of 3.6 - 8.4v
• Input Voltage: 4.8-7.4 V
• High Voltage
• Weighs only 6.7g

Specifications:
Modulation - T-FHSS
Weight - 6.7g
Voltage - 3.6 - 8.4v
Channels - 4
Dimensions - 35 x 33 x 12 mm
