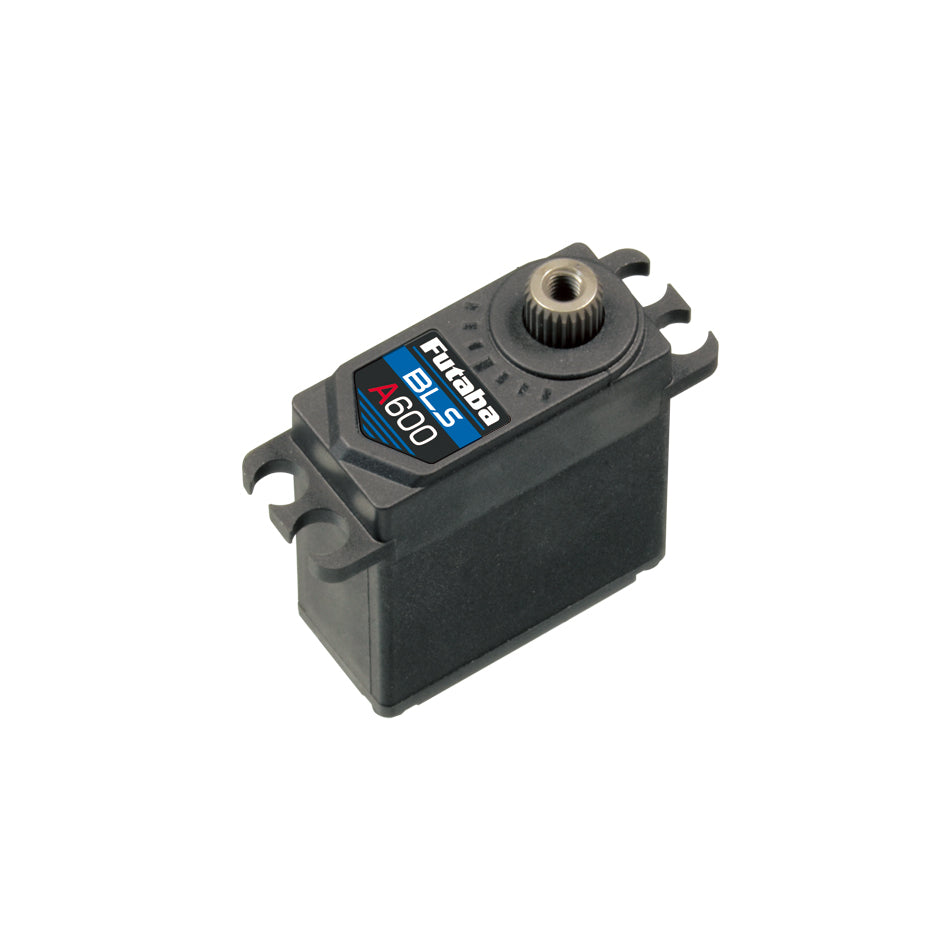

Futaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg 0.10s 4.8V - 7.4V
Roll over image to zoom in Click on image to zoom
Futaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg 0.10s 4.8V - 7.4VFutaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg/0.10s 4.8V - 7.4VFutaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg/0.10s 4.8V - 7.4VFutaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg/0.10s 4.8V - 7.4V

Futaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg/0.10s 4.8V - 7.4V

Save 11%
FutabaSKU: FUT05102730-3
Price:
£123.50 £137.99
Stock:
Only 2 units left
 More payment options

Description

Futaba BLS-A600 Mini Brushless Servo PWM/S.BUS2 7.6kg 0.10s 4.8-7.4V

The BLS-A600 Mini Brushless Servo supports PWM/S.BUS2, delivering 7.6kgf·cm torque and 0.10s/60° speed. It has compact dimensions of 27.2×13.0×30.5mm and operates between 4.8V and 7.4V.

What's in the Box

  • BLS-A600 Mini Brushless Servo
  • Horns
  • Mounting Hardware

Speed:

  • 0.10 sec/60° (6.6V)
  • 0.9 sec/60° (7.4V)

Torque:

  • 6 kgf/cm (6.6V)
  • 83.3 ozf/in (6.6V)
  • 6.7 kgf/cm (7.4V)br>93 ozf/in (7.4V)

Size:

  • 27.2 x 13 x 30.5 mm
  • 1.07 x 0.51 x 1.2 in

Weight:

  • 28 g
  • 0.98 oz

Power Supply:

  • DC 6.0V - 7.4V

NO DRY BATTERY USE

  • Command Protocol - PWM, S.BUS, S.BUS2
  • Size - Mini
  • Dimensions - 27.2×13×30.5mm
  • Circuit - Digital
  • Voltage Range - 4.8V - 7.4V
  • Spline - 25T (Ø6mm)
  • Motor - Brushless
  • Gears - Metal
  • Case - Resin case
  • Gear Detail - Metal 1-4 gears. Metal final gear
