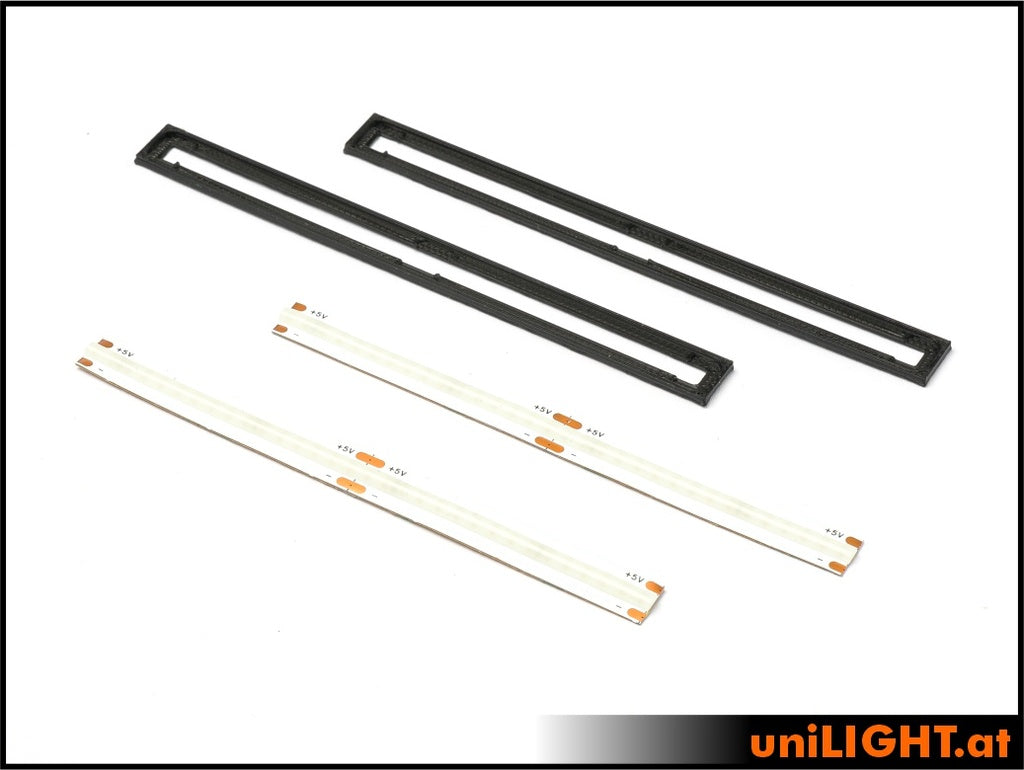

Formation lights 10cm incl. frames 1.3W Green from Unilight FORM10-013x2-GN
Formation lights on modern jets or a uniform interior cockpit illumination? With our lights from the FORM series, it's possible to create extremely flat and evenly glowing scale light strips, complete with frames.
The strips are available in common green, white, and blue as formation lights, but also in red and orange for simple navigation lights, night flight lighting, and interior illumination. They come in frame lengths of 50mm, 100mm, 150mm, 200mm, and 250mm, and are always packaged in pairs.
Built with COB technology, these end-to-end (no individual points) glowing LED strips are fully compatible with the uniLIGHT system and can be operated at 8V or 12V (using an additional resistor). The strip itself is self-adhesive, and the matching frame can be attached with silicone or epoxy. This results in a light unit that is only 10mm wide and less than 2mm high, allowing for versatile mounting options.
Assembly Instruction: The strip itself is self-adhesive, and the matching frame can be attached with silicone or epoxy.
Technical Data:
Performance: 1.3W reference power,
Voltage: 2s / 8V, use an additional resistor for 12V! 0.11A
Dimentions: 100 x 10 x 2mm
Weight: 1g (without cable)
Delivery Content:
Equipped with 0.5m Teflon cable, 2x lights with 2x frames
Warning Notice: Please note that high-performance LEDs can become very warm, up to 70°C is completely normal. These heat sink mounted lights are suitable for continuous operation when air convection is possible. After installation, check the operating temperatures. We cannot guarantee against overheating.
Warning: The LED lights are extremely bright! Never look directly into an LED!
