Force 46 ABC Aero Engine (7.45cc) FORE-4601
R/C flyers adore engines, they always will, and for many two-strokes are still the preferred choice, particularly in the quality mid-range club sector where, of course, the ubiquitous .46 – .52 two-stroke has so many uses. Well, as luck would have it, recent demand has encouraged Force Engines to step up and produce this beautifully-made single-cylinder, front induction, ABC, R/C glow engine.
Sporting a crisp and clean, bead blasted crankcase, robust one-piece crankshaft – supported on a front (sealed) and rear (open) bearing – the Force 46 offers reassuring longevity with its aluminium alloy piston and hard chrome-plated brass liner, the latter schnuerle ported for improved efficiency and power. Add a proven twin needle carburettor, substantial high-volume silencer, cast high-grip knurled prop driver and rpm range of 2,000 to 17,000 and you have a perfect, and rather eye-catching R/C sport aero engine for a variety of propeller sizes in the popular 10 x 6 to 12 x 5” bracket.
Easy to start, easy to tune and promising years of reliable service the Force 46 is more than a match for your Sunday hack or sport aerobat and it won’t break the bank.
Features
- ABC piston and liner.
- Powerful 7.45cc single cylinder two-stroke.
- 2,000 to 17,000rpm range.
- Schnuerle ported cylinder and liner.
- 10 x 6 to 12 x 5" propeller range.
- Uses glow fuel with between 5 and 15% nitromethane.
- Twin bearings.
- Twin needle carb with rear mounted main needle.

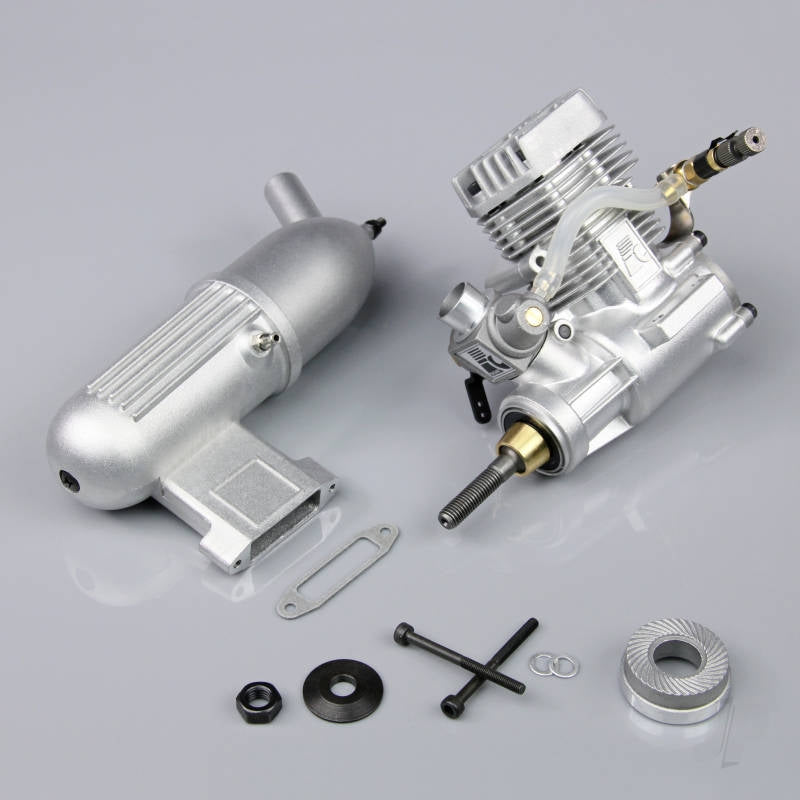

What's In The Box
1x Force 46 ABC two-stroke aero engine.
1x Torpedo silencer with pressure nipple.
1x Silencer gasket.
2x Silencer mounting screws.
1x Propeller driver.
1x Prop nut and washer.
1x Instruction and operating sheet.
Needed To Complete
1x Medium cold glow plug.
1x 10 x 6 to 12 x 5" propeller.
Specifications
| Displacement (cc): |
7.45 |
| Bore (mm): |
22 |
| Stroke (mm): |
19.6 |
| Weight (g): |
371.5 |
| Fuel: |
Glow |
| Nitro content: |
5 – 15% |
FORE-4601-1 4601
