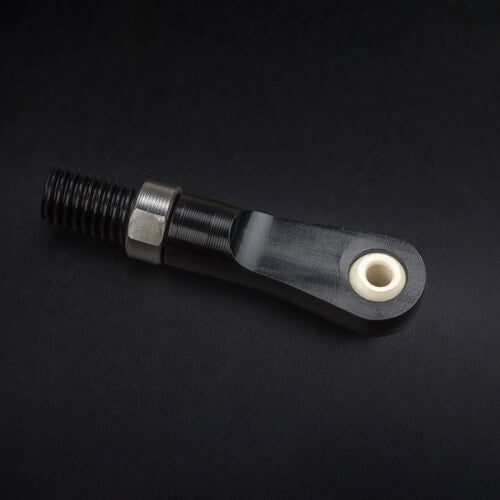

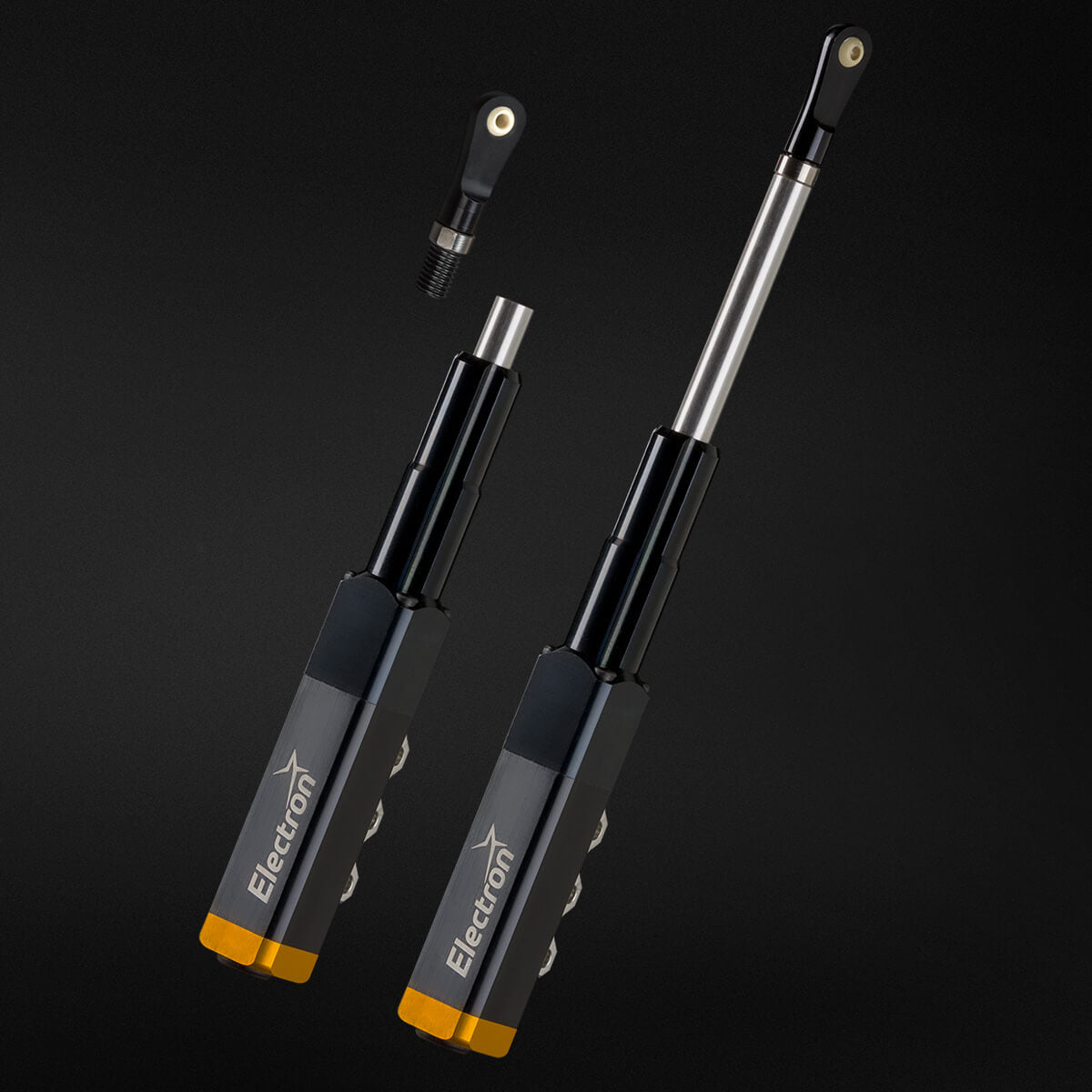

Electron Linear Actuator 31.5mm Travel Inc Ball Link 60N @ 8v
This is the latest version of the Electron Linear Actuator designed to move the RC planes gear doors and has 25% more performance. Manufactured in aeronautical aluminium 7075-T6 with CNC machines. All parts are anodized, and manufactured with very small tolerances. The control unit is integrated inside the actuator housing. The result is a very compact and robust system. The innovative installation bracket adjustable in 3 points, and their small size, allow install this in small places.
Linear Actuator
Linear torque that is unmatched by conventional servos or pistons.
Highlights:
- QUALITY & RELIABILITY: Like our retracts, linear actuators are machined from AW 7075 T6 aeronautic grade aluminum, with a high level of precision and a demanding quality control, resulting in a robust and reliable system.
- ROBUST & STRENGHT: Thanks to its design, Electron Retracts linear actuators provide a linear torque output much higher than regular servos and pistons, while keeping a small size format allowing for its installation on many situations.

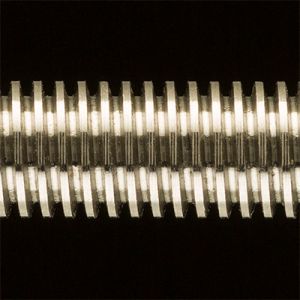

- BETTER PERFORMANCE: Squared threaded spindle, specifically designed for this purpose, provides a completely axial force, with a 25% performance increase in comparison with conventional spindles.

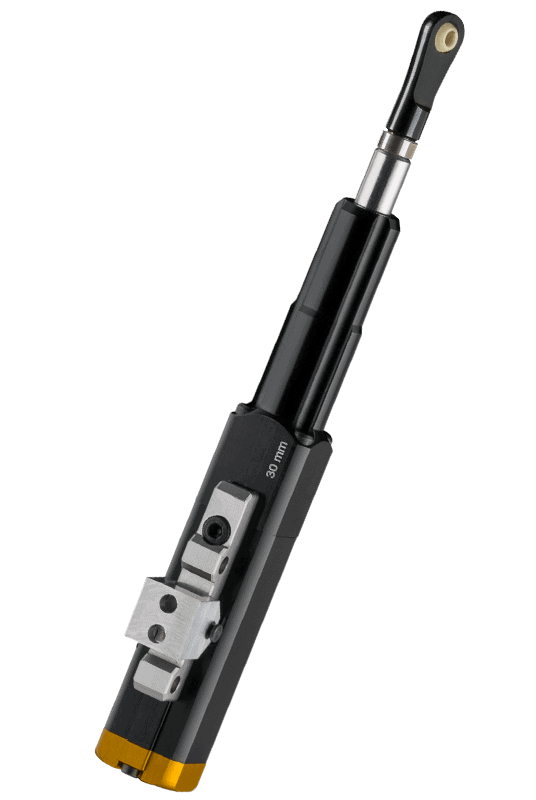

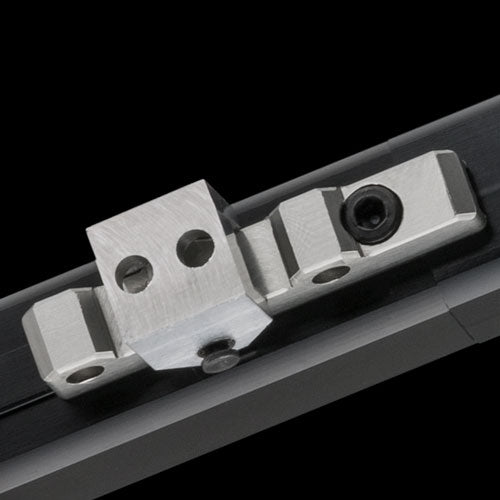

- VERSATILE & EASY INSTALLATION: Thanks to the multiple mounting points on the actuator itself and the mounting bracket included, any number of different deflection angles can be achieved in order to match your requirements exactly.
Specifications:
| Operating Voltage |
6 ~ 8.4V |
| Voltage |
8 V |

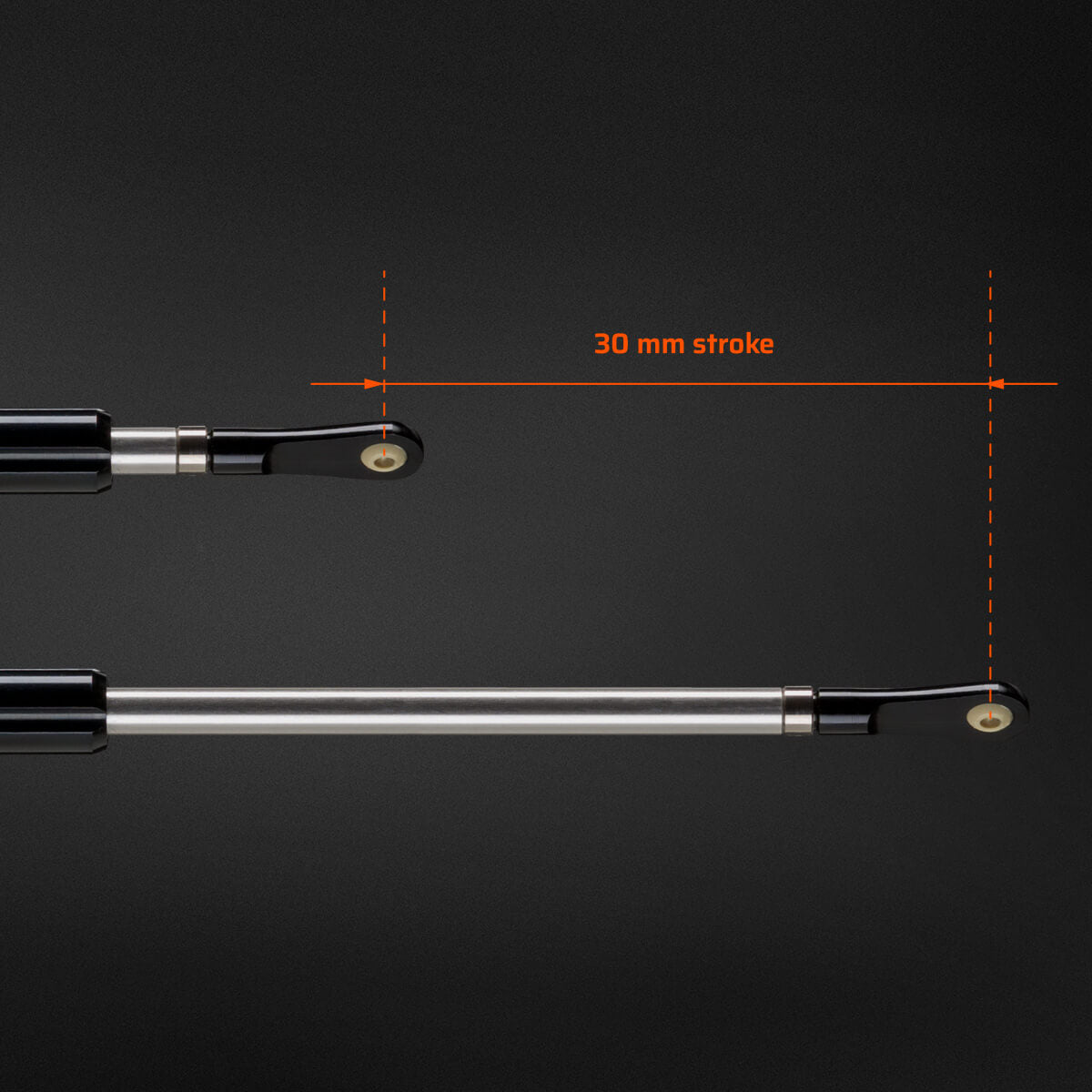

| Stroke |
31 ± 0,5mm (Mechanically adjustable extension stroke) |
| Control System |
PWM (Servo connector) |
| Speed at 8V (No load) |
7,5 mm/s ± 10% |
| Stall Current |
1,5A |
| Stall Force |
60N |
| Max Static Force |
800N |
| Max Side Load (Extended) |
100N |
| Wire Lenght |
300 mm |
| Weight |
45g |
| Case Material |
AW 7075T6 |
| Operating Temperature Range |
-10ºC ~ +50ºC |
