Name: Electron ER-50 NG Set A (Special Order Custom Set)
Brand: Electron Retracts
SKU: Electron-ER-50-NG-Set-A
Price: 575.0 GBP
Availability: InStock

Electron ER-50 NG Set A (Special Order Custom Set)

Roll over image to zoom in Click on image to zoom

Electron ER-50 NG Set A (Special Order Custom Set)

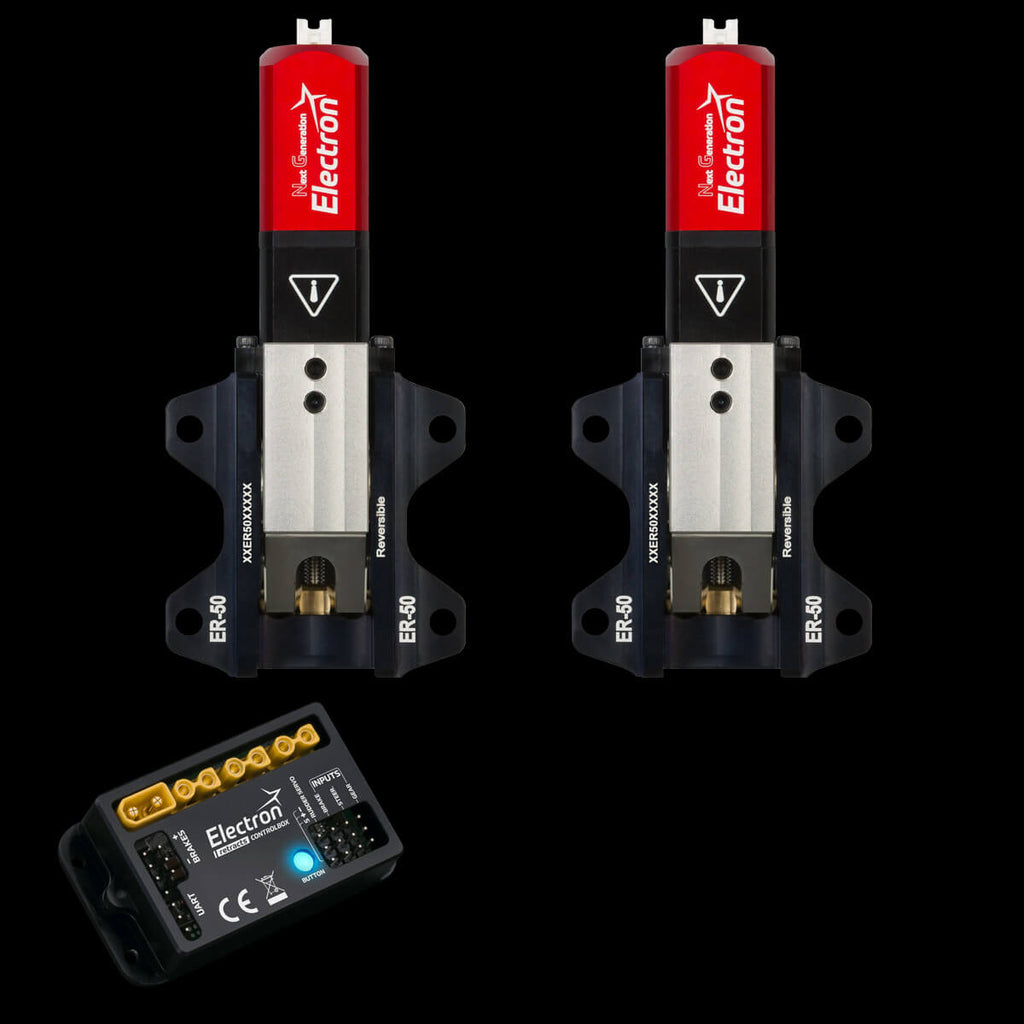

Set of two ER-50 NG landing gear retract mechanisms.

An electronic controller is mandatory for the use of the retracts.

NG Retracts

Ground-breaking in every detail

A Next Generation Retracts, for the current generation of large aircraft.

Coreless NG Motor*

High Performance and Stability

*Optional: Maxon Coreless DCX Motor
Each motor housing incorporates a custom precision milled Electron Retracts carbon steel gearbox that provides a powerful, reliable and compact power output to the retract. A more powerful 12v motor, optionally Maxon Coreless DCX Motor can be installed, offers greater performance.

Better Performance

+30% improvement
Keeping the same proven exclusive thread design, developed by Electron Retracts, the NG’s spindle is now produced from AISI304 Stainless Steel, which together with the brass slide offer incredibly low friction, meaning every last drop of torque is transmitted directly to the retract.

The new thread spindle generates a completely axial force, providing performance up to 30% more efficient than a conventional spindle.

Make A Difference

Innovations you can see and feel in all our retracts.

All of our retracts are designed to make a difference in terms of precision and performance. The heart of our retracts is forged from a single block of aircraft grade aluminium, our exclusive reversible design, the protected spindle with a guide point and a fixed motor position make our Classic and NG Retracts the most efficient and reliable on the market.

Robust Precision

The strength of a Monoblock design

Other retracts are made of multiple pieces which makes them delicate and increases the opportunity of failure.

Our Monoblock main frame gives the system enormous robustness, and guarantees smooth, reliable operation, as well as great durability.

We milled main frame and parts from solid block of AW 7075 T6* (*Aeronautic grade aluminium), also anodized to guarantee correct protection against oxidation/corrosion.

Unparalleled Precision

The reasons behind the design

In order to transmit thrust with the highest efficiency and stability, the spindle must be guided on both ends. This can only be achieved with a fixed, non-tilting design, something that until now, only Electron Retracts provides.

Thanks to the main frame design, the slider is protected at the end of its travel range, so the landing impact energy is completely transmitted to the frame, preventing any damage to the spindle and slider.

Reversible Design

Adapted for different situations

Depending on your specific model, it may need the retracts to fold back on themselves, or away from themselves. Thanks to our unique design, this can be achieved by simply removing the trunion and flipping it round. This procedure can be completed in minutes and does not affect the warranty.

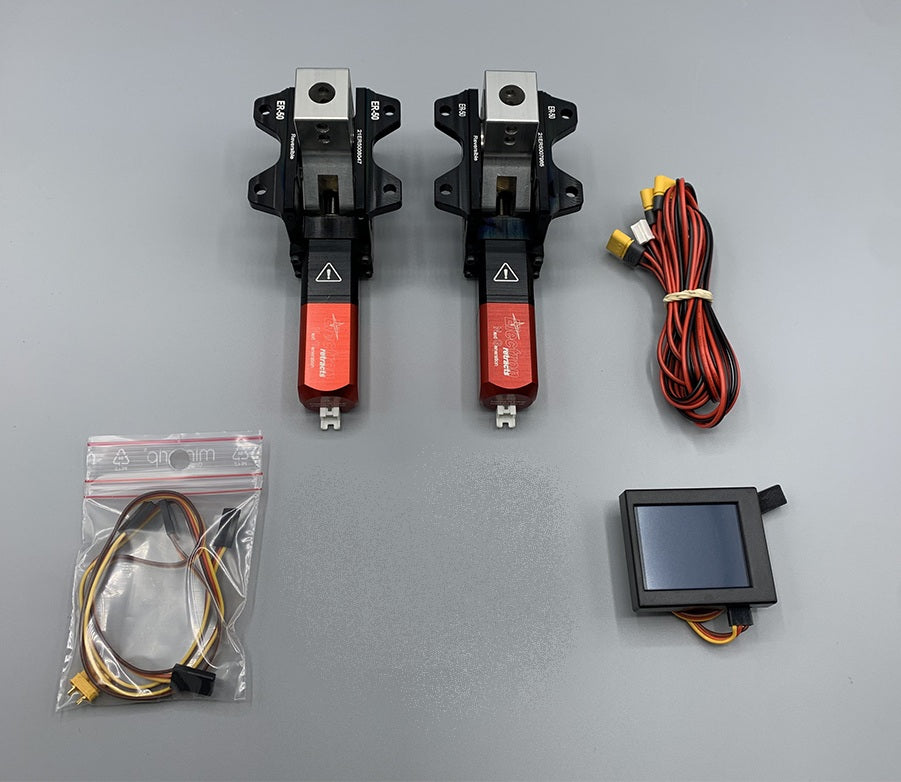

Contents:
2x ER-50 NG retracts, with blind holes.
Includes cables and a battery connector.

Optional:
1x Electronic controller
Set of mounting screws / nuts

Please Note:
Delivery of custom sets will normally take up to 3 weeks from time of order but we usually keep some of the more common sets in stock ready for immediate dispatch.

Weight (Single Retract) - 290g
Max weight model - 30kg (66lbs)
Operation Voltage - 12v
Cycle time @ 12v - 3.5sec
Voltage allowed - Up to 13v (3S LiPo)
Torque @ 12v - 200kg.cm
Front clamp version - Yes
Trunion Hole Diameter - 8 to 16mm
Retraction Angles - 75 to 100 Degrees
