Electron ER-50 Classic Set A (Special Order Custom Set)
Powerful and precise
Pick up an ER50 Classic and even before operating it you can tell the power and precision for which it was designed.
With it’s main cage and parts being milled from solid 7075 T6 aviation grade aluminium, it is capable of working day in and day out from any kind of runway with models of up to 30kg
Square spindle for increased speed and torque
Electron Retracts ER-50 Classic now comes with a unique square thread spindle. This provides significantly increased torque, while also improving speed.
Designed to simply work
Retracts are usually installed and hidden away, and at Electron-Retracts we know that. That is why all our retracts have been designed to require little to no maintenance, so your time at the field can be used for flying and not fiddling.
Reversible design
Depending on your specific model, it may need the retracts to fold back on themselves, or away from themselves. Thanks to our unique design, this can be achieved by simply removing the trunion and flipping it round. This procedure can be completed in minutes and does not affect the warranty.
Highly customizable
Choose one of the pin hole sizes to perfectly match your desired struts and combine it with one of the different angled trunions to achieve the exact set you need.
Smooth & precise turn
The spindle system has two thrust bearings with internal shock absorbers
mounted on its head.
This gives the whole assembly a smooth and precise turn, and a cushion when it reaches the final position.
Specifications:
Weight (single retract) - 290g
Max. Weight (Model) - 30kg (66lbs)
Cycle time @ 8v - 3.5sec
Voltage allowed - 7.4v (2S LiPo)
Torque @ 8v - With GS200/GS200 Pro 100kg/cm - With RB45/RS200 80kg/cm
Front clamp version - Yes
Includes:

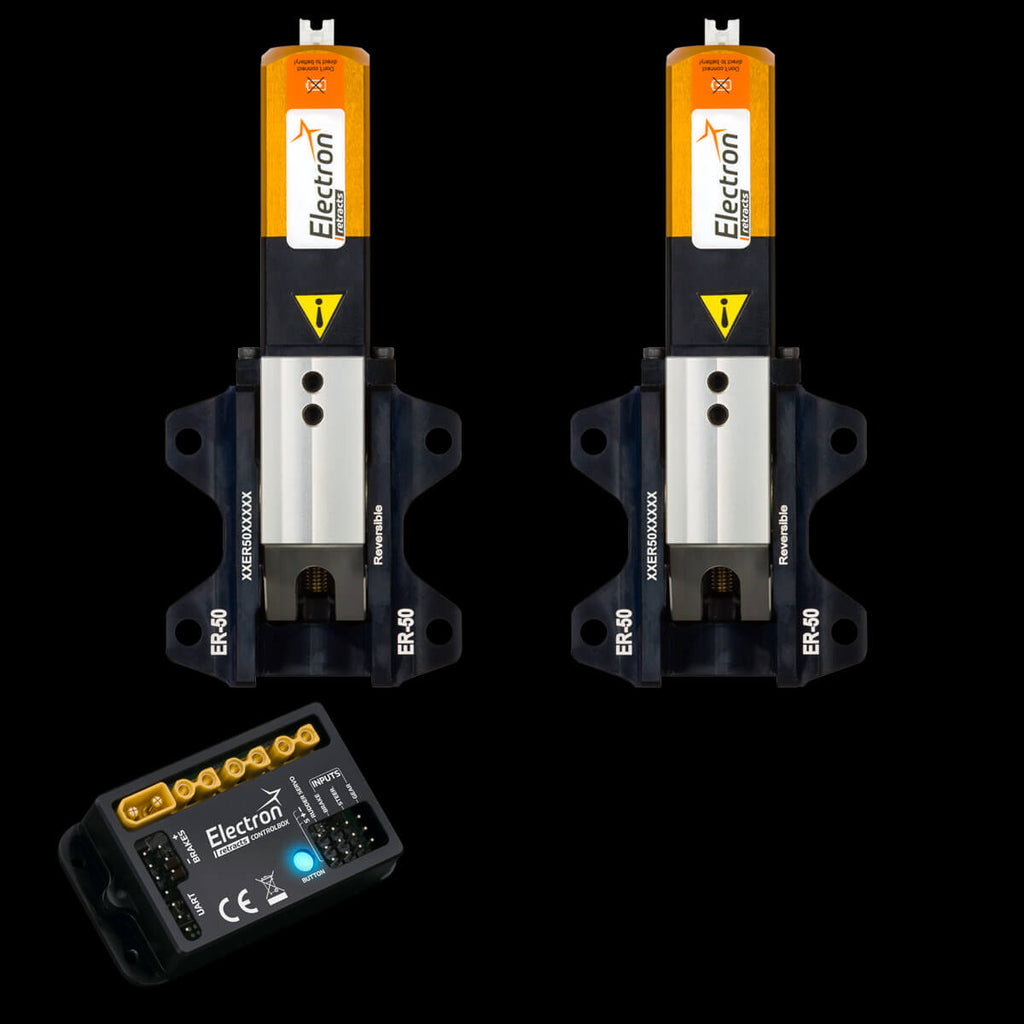

2x ER-50 Classic retract with options selected
1x Cables and connector Set
Optional:
1x Controller selected
Mounting Screws/Nut Set
Please Note:
Delivery of custom sets will normally take up to 3 weeks from time of order but we usually keep some of the more common sets in stock ready for immediate dispatch.
