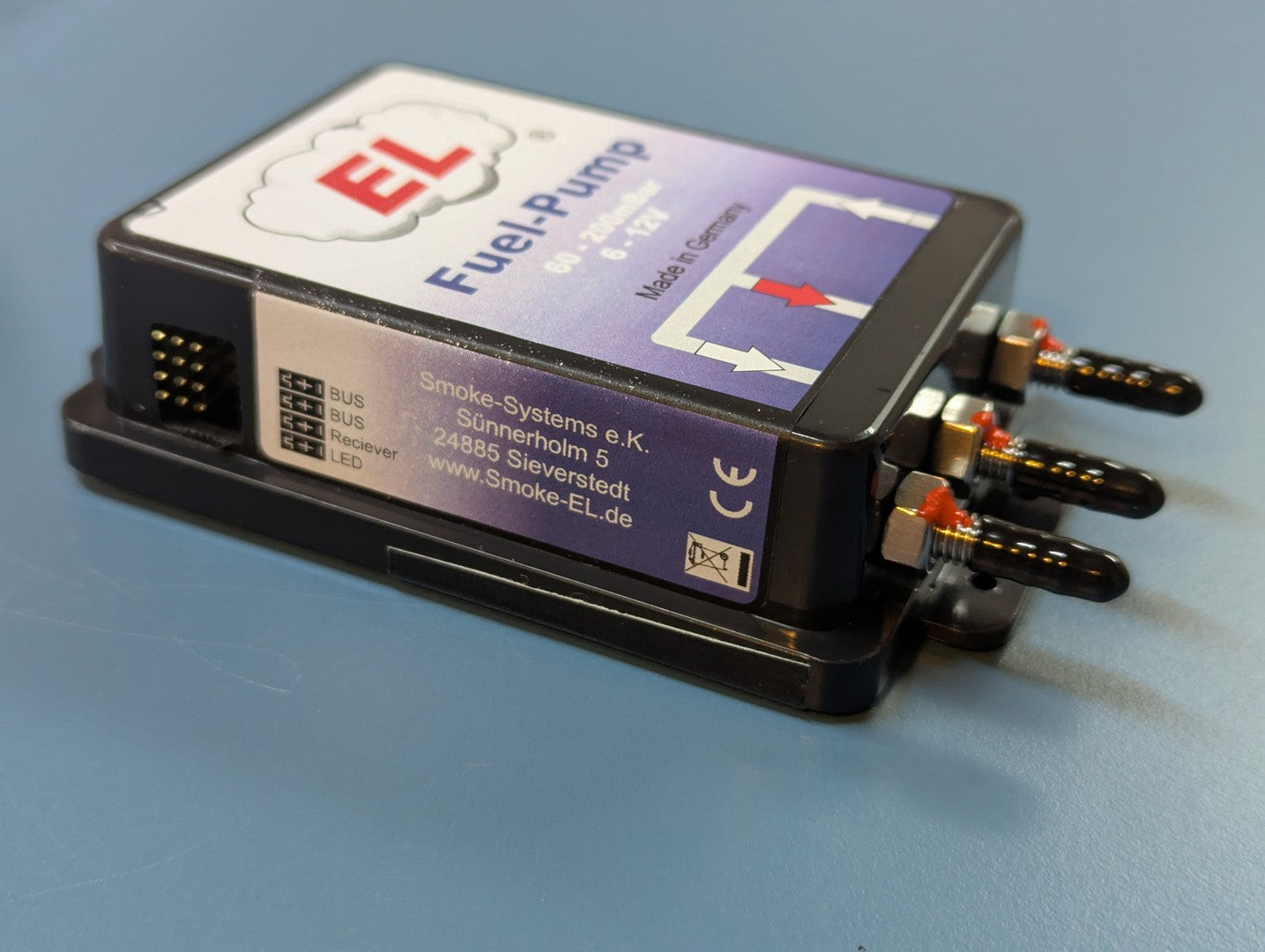

EL-FuelPump Constant Fuel Pressure Pump with Telemetry for Moki & Other Engines from Smoke Systems
It is a safe and easy-to-use fuel pumping system for all two-stroke and four-stroke engines. The entire system is plug-and-play, meaning that only the tank, carburetor, and power supply need to be connected.

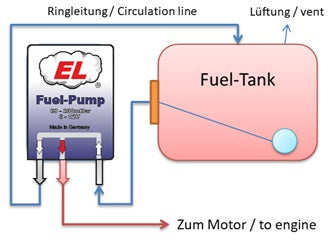

The EL-FuelPump provides a constant fuel pressure to the carburetor/engine, ensuring optimal engine performance in all flight positions. To do this, the pump is connected to the fuel tank via a ring line. The pump regulates the pressure in the ring line to the preset value (factory setting: 100 mBar). The center hose connection is used to connect the carburetor.
Setpoint Adjustment:

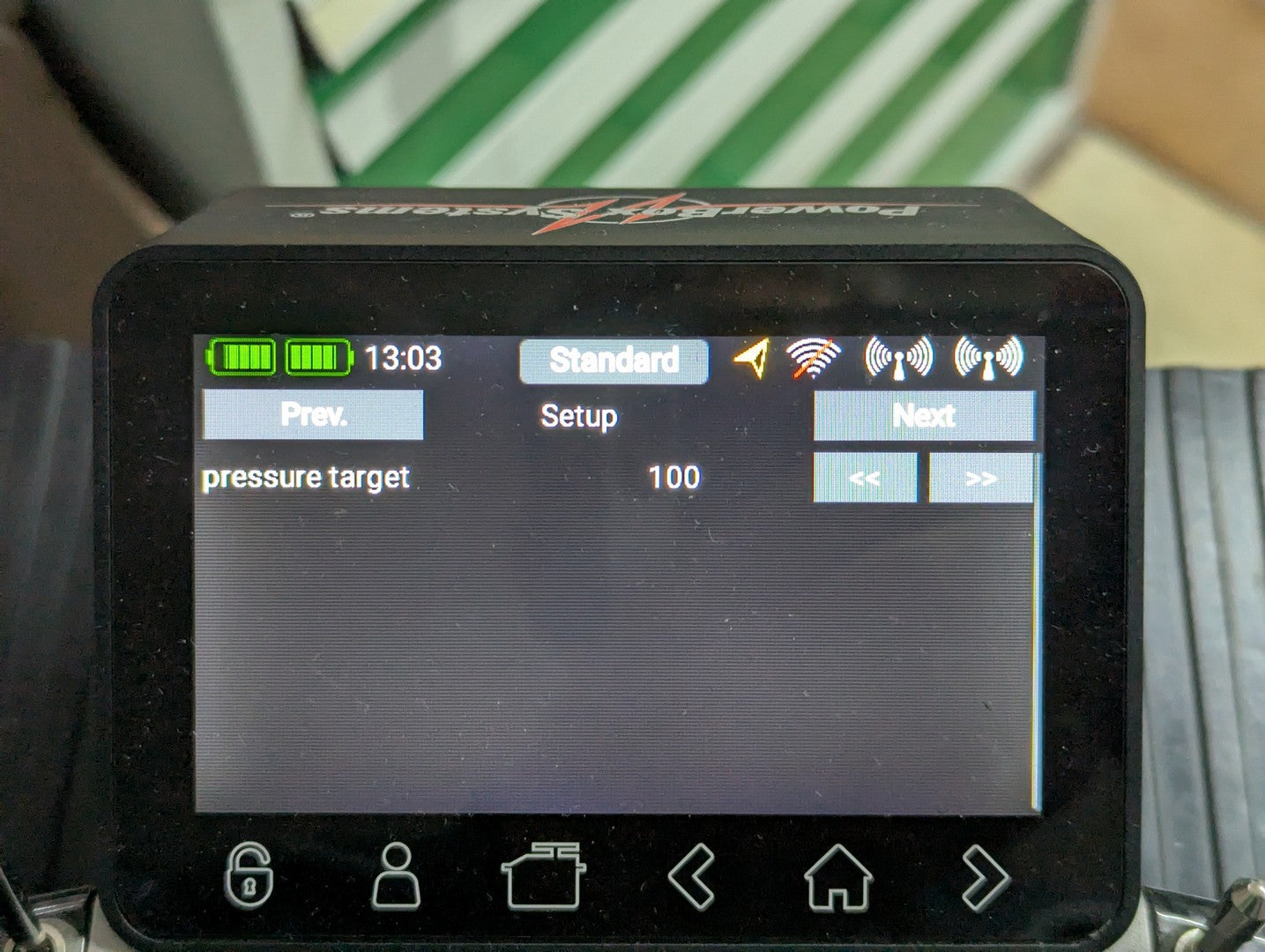

For both Jeti and PowerBox systems, the setpoint can be adjusted via the transmitter. The factory default setting is 100 mBar.
Technical Data:
Weight ............................ 160 g
Regulation range ...... 60 – 200 mBar
Dimensions .................. 100 x 75 x 28 mm (L x W x H)
Voltage ........................... 6 – 9 V
Current ............................ 0.4 A (max. 1 A)
Hose connection ...... 4 mm (hose: 4 mm inner, 6 mm outer diameter)
Telemetry ..................... PowerBox P²Bus, Jeti EX-BUS
