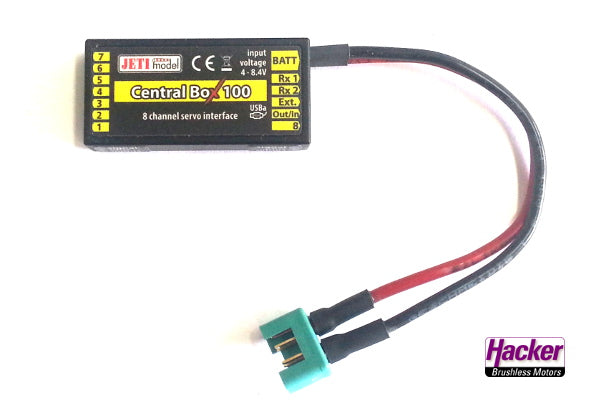

DUPLEX 2.4EX Central Box 100 J-CB-100 80001603
The Central Box 100 is a switchboard designed for the complete management of servos in a model with an emphasis on safety. The Central Box has a unique design that provides overload protection at each servo output. The Central Box can manage a single battery and fully supports the JETI EX telemetry system. Up to two receivers with serial (PPM, EX Bus) output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry, and very fast servo response.
Central Box 100 supports up to 8 protected servo outputs and a single battery input.
Attributes:
- Overload protection on each channel

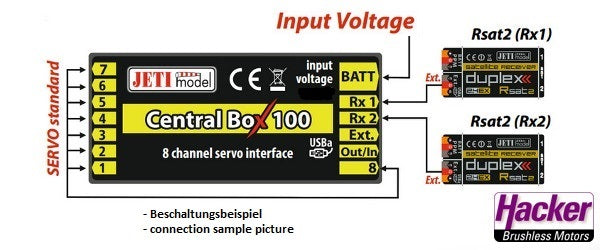

- Possibility to connect up to 2 receivers with serial interface (PPM, EX Bus)
- Ext. connector for sensors
- MPX battery input connectors: 1x
- 100Hz mode of servo outputs (10ms period)
- Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
- Easy settings changes via DC/DS transmitter
- Firmware updates by user (via JETI USBa Adapter)
- Suitable for use with high voltage (HV) servos
- Compact size for easy installation
- Each output is individually configurable (channel assignment, trim, reverse, A TV)
Technical Data:
Weight [g]: 20
Dimensions [mm]: 52 x 25 x 11
Sustained current [A]: 10
Number of channels: 8
Telemetry: Yes
Operational temperature [°C]: -20 ... 75
Compatible protocols: EX Bus, PPM
Supply Voltage [V]: 4 ... 8,4
Satellite receiver support: Yes
Batteries NiXX: 4 ... 10
Batteries LiXX: 2 ... 3
Number of battery inputs: 1
Voltage stabilization: No
Peak current (2s) [A]: 90
