Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057
Roll over image to zoom in Click on image to zoom
Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057

Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057

DualskySKU: DUA057
Price:
£49.95
Stock:
Available for back order.
 More payment options

Description

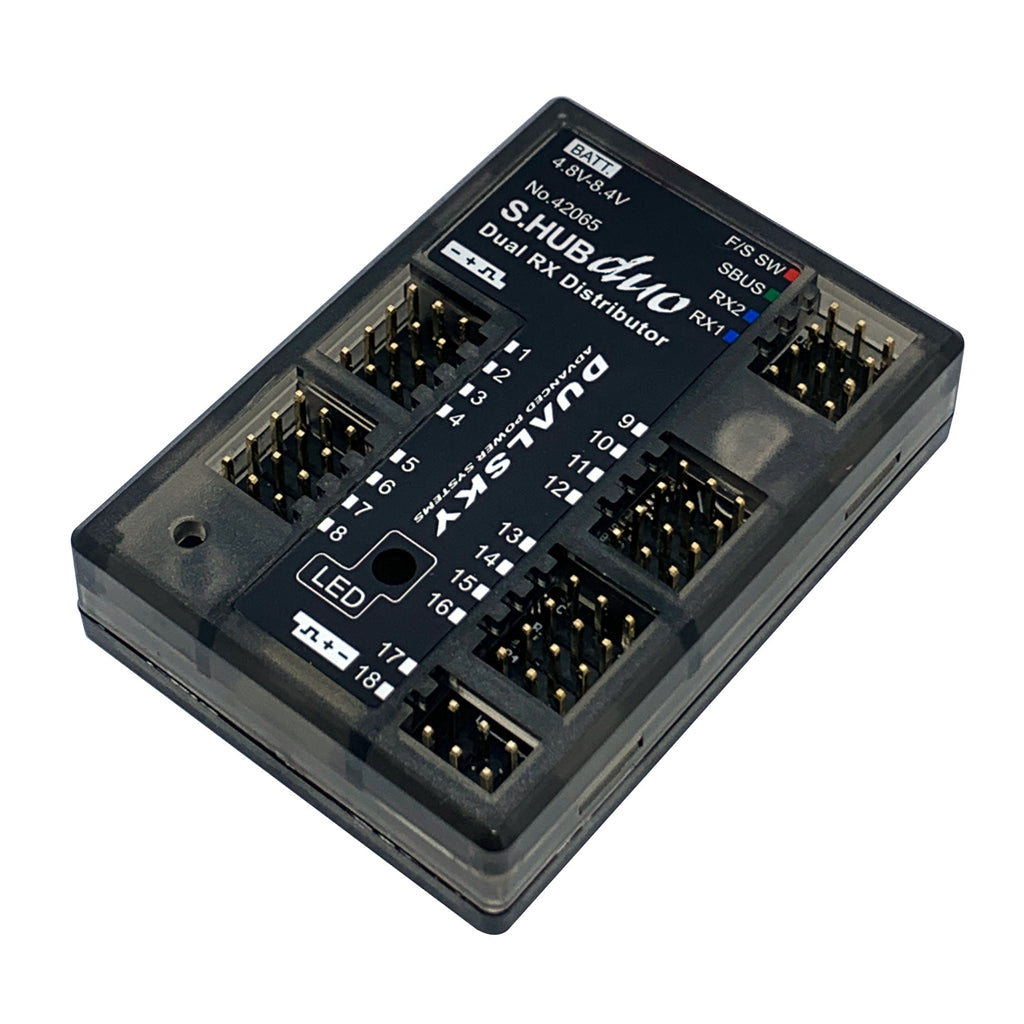

Dualsky S.Hub Duo Dual Serial To Pwm Convertor DUA057

Dualsky S.HUB Duo dual serial to PWM converter is an 18-Channel HUB with 2 S.BUS receiver input ports (for full redundancy), S.BUS output port (for connecting additional hub, such as Dualsky S.HUB Mini) and the possibility of direct power supply from the Li-Po / Li-Fe 2S packs.

S.HUB Duo automatically detects and supports three types of protocols: Futaba S.Bus / S.Bus2, Jeti EX.Bus and Spektrum SXRL). After connecting and initialising the S.HUB Duo sets itself to the last used protocol. If the connection is lost, it automatically changes the protocol and reconnects.

The S.HUB Duo is designed for large models with multiple control surfaces.

Dimensions: L55.6 x W39.6 x H13.3mm
Weight: 35g
Working Voltage: 4.8V to 8.4V
Working Current: 20A constant, 30A peak
Number of Serial Input: Dual Rx's redundant
Protocol Supported: Futaba S.BUS/S.BUS 2
JETI EX.Bus
Spektrum SRXL
Number of PWM Output: 18
S.Bus Output Relay: Yes, encoded
Power Switch: FSS-4 Fail-safe switch
Voltage Regulator: N/A
Case Material: Plastic
Applications: Large models and multiple control surfaces
Instruction Manual
