Description
| General | |

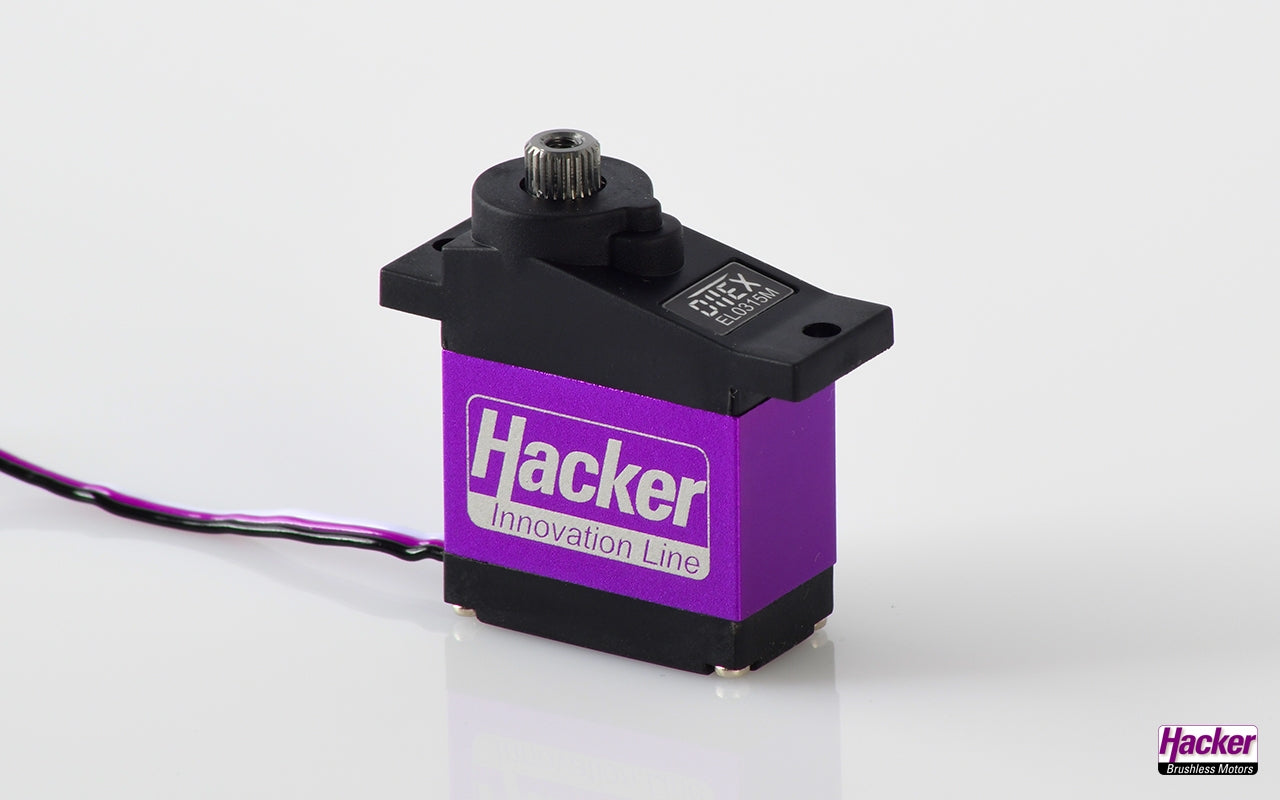

| Recommended application area | Mini servo for small R/C models. |
| Classification | Micro |
| Dimensions and weight | |
| Length | 23mm (0.91in) |
| Width | 12mm (0.74in) |
| Height | 29.7mm (1.17in) |
| Weight incl. connection cable | 15g (0.53oz) |
| Specifications | |
| High voltage capable | no |
| Voltage 1 (V1) | 6V |
| Max. input voltage | 6V |
| Regulating time V1/60° | 0.13s |
| Pulling load V1 | 3.8kg/cm |
| Frequency | 55Hz to 333Hz |
| Housing type | Aluminium/plastic |
| Motor type | DC |
| Transmission type | Steel |
| Number of output cogs | 25 (Futaba/Savöx compatible) |
| Angle measurement | Potentiometer |
| Programmable | no |
| Soft start | no |
| Telemetry | no |
