Description

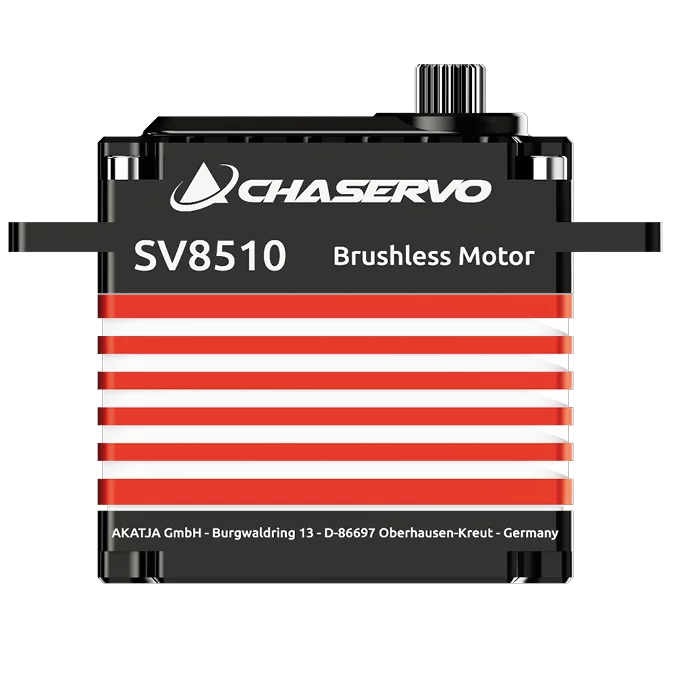

CHASERVO SV8510 Servo CHA-SV8510
Super High Voltage
The SV8510 24V high-performance servo is trimmed for maximum performance and speed at very low current. In cooperation with PowerBox Systems, a suitable 24V (6s-Lipo) dual power supply has been developed for use in model aircraft with our SV servos.
The use in 3D aerobatic models, XXXL models, RC CAR or many alternative applications leaves nothing to be desired. The servo is optimized to industrial standards for maximum power and zero backlash. The built-in contactless Hall sensor offers ideal conditions for long-lasting properties in continuous operation and vibrations.
The housing parts are made of high-alloy aluminium and, in conjunction with six ball bearings and hardened steel gears, offer precise and backlash-free linkage.
That speaks for itself.
The Chaservo SV8510 24V is suitable for a wide range of applications. It is ideal for RC airplanes, gliders, powered aircraft and other models that require high performance and precision. The high power also makes it ideal for 3D aerobatics and large jet applications.
The Chaservo SV8510 24V is a high-performance servo in the 20mm class that is designed for operation with a voltage of 24V. It is characterized by its exceptionally high performance and speed with very low power consumption.
Holding and Stalling Torque
Impressively fast
Idle speed of the LV06 - Series in detail.
Advantages of the SV8510
- Exceptionally high performance and speed
- Precise execution
- Robust design
- Compact design
- Versatile application possibilities
- Ideal for 3D aerobatics and large jets
- Low power consumption
- Compatible with Competition SHV (sold separately)
Perfect for use with:
- Large Model airplanes
- RC-Cars
- Drones
- Robots
- a lot more
Championship Performance
A suitable 24V (6s-Lipo) dual power supply has been developed in cooperation with PowerBox Systems. Perfectly matched for use in model aircraft with our SV servos.
- Powerful SHV power supply
- Regulated 8.4 V outputs for powerful servos
- Double design of the power electronics for maximum reliability
- Sunlight-readable display for easy readability
- Servo matching for all 22 outputs for optimum performance
- Automatching function for easy adjustment
- 2 independent door sequencers for complex flight maneuvers
- iGyro technology for outstanding stability and precision
- This unit is not included with this servo but is available to buy from Nexus here
| Servo Data | |
|---|---|
| Brand | Chaservo |
| Version | SV8510 |
| Dimensions | 1.57 x 0.78 x 1.57 in (40 x 20 x 40 mm) |
| Weight | 3.06 oz (87 g) |
| Output Shaft Spline | 25T, 0.236 in (6 mm) |
| Rated Voltage | DC 24V |
| Voltage Range | DC 22 – 28V |
| Ball Bearing | 6 x Ball Bearing |
| Position sensor | Contactless / Hall sensor |
| Motor | 4 Pole Brushless |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 22.0V | 1110.99 oz·in (80 kg·cm) |
| Holding Torque @ 24.0V | 85 kg·cm |
| Holding Torque @ 28.0V | 1249.86 oz·in (90 kg·cm) |
| Output Torque | |
|---|---|
| Output Torque @ 22.0V | 72 kg·cm |
| Output Torque @ 24.0V | 76.5 kg·cm |
| Output Torque @ 28.0V | 81 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 22.0V | 0.11sec/60° |
| No-load Speed @ 24.0V | 0.10sec/60° |
| No-load Speed @ 28.0V | 0.09sec/60° |
| max. Current | |
|---|---|
| max. Current @ 22.0V | 4.95 A |
| max. Current @ 24.0V | 5.25 A |
| max. Current @ 28.0V | 5.85 A |
