Description

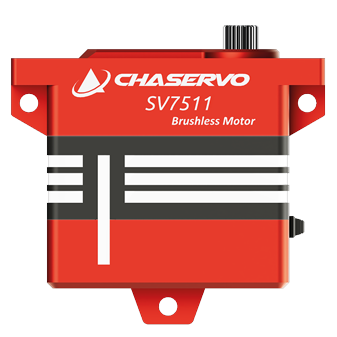

CHASERVO SV7511 Servo CHA-SV7511
Power and precision
The SV7511 24V high-performance servo is optimized for maximum performance and speed at very low current. The mounting brackets for horizontal and vertical installation offer maximum flexibility for mounting solutions.
In cooperation with PowerBox Systems, a suitable 24V (6s-Lipo) dual power supply has been developed for use in model aircraft with our SV servos. The use in 3D aerobatic models, XXXL models, RC CAR or many alternative applications leaves nothing to be desired.
The servo is optimized to industrial standards for maximum power, zero backlash and durability. The housing parts are made of high-alloy aluminium and, in conjunction with double ball bearings and hardened steel gears, offer precise and backlash-free linkage.
A class of its own.
The SV7511 24V high performance servo is a powerful and versatile servo that is suitable for a wide range of applications. It is optimized for maximum performance and speed with very low power consumption.
The mounting brackets for horizontal and vertical installation offer maximum flexibility in mounting solutions. In cooperation with PowerBox Systems, a suitable 24V (6s-Lipo) dual power supply has been developed for use in model aircraft with our SV servos.
The servo is ideal for use in 3D aerobatic models, XXXL models, RC cars or other applications that require high performance and precision. It is optimized to industrial standards for maximum power, zero backlash and durability.
Holding and Stalling Torque
Impressively fast
Idle speed of the LV06 series in detail.
Advantages of the SV7511
- High performance and speed
- Very low power consumption
- Flexibility of mounting options
- Ideal for 3D aerobatic models, XXXL models, RC cars and other applications that require high performance and precision
- Robust and durable housing made of high-alloy aluminium
In the Box:
- HV7511 Servo
- Mounting Material
Championship Performance
A suitable 24V (6s-Lipo) dual power supply has been developed in cooperation with PowerBox Systems. Perfectly matched for use in model aircraft with our SV servos.
- Powerful SHV power supply
- Regulated 8.4 V outputs for powerful servo
- Double design of the power electronics for maximum reliability
- Sunlight-readable display for easy readability
- Servo matching for all 22 outputs for optimum performance
- Automatching function for easy adjustment
- 2 independent door sequencers for complex flight manoeuvres
- iGyro technology for outstanding stability and precision
- This unit is not included with this servo but is available to buy from Nexus here
| Servo Data | |
|---|---|
| Dimensions | 1.59 x 0.67 x 1.57 in (40.5 x 17 x 40 mm) |
| Weight | 2.61 oz (74 g) |
| Rated Voltage | DC 24V |
| Voltage Range | DC 22 – 28V |
| Output Shaft Spline | 25T, 0.236 in (6 mm) |
| Position sensor | Potentiometer |
| Motor | 4 Pole Brushless |
| Ball Bearing | 2 x Ball Bearing |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 900µs-2100µs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 22.0V | 902.68 oz·in (65 kg·cm) |
| Holding Torque @ 24.0V | 75 kg·cm |
| Holding Torque @ 28.0V | 1110.99 oz·in (80 kg·cm) |
| Output Torque | |
|---|---|
| Output Torque @ 22.0V | 58.5 kg·cm |
| Output Torque @ 24.0V | 67.5 kg·cm |
| Output Torque @ 28.0V | 72 kg·cm |
| No-load Speed | |
|---|---|
| No-load Speed @ 22.0V | 0.12sec/60° |
| No-load Speed @ 24.0V | 0.11sec/60° |
| No-load Speed @ 28.0V | 0.10sec/60° |
| max. Current | |
|---|---|
| max. Current @ 22.0V | 4.95 A |
| max. Current @ 24.0V | 5.25 A |
| max. Current @ 28.0V | 5.85 A |
