Description
Specification:
Operating Voltage : DC12.0V.
Operating Voltage Range : DC8.40V-13.0V.
Working Frequency : 1520us/333Hz.
Pulse Lengths: 500us-2500us.
Operating Temperature Range: -20℃……+65℃.
Default Travel Angle: ±50° =100° total travel/1000us-2000us.
Max. Travel Angle: ±100° =200° total travel/500us-2500us.
Signal Voltage: HIGH: min.3.3V, max.5.0V / Low: min.0.0V, max.1.5V.
Pulse Lengths for Position: 500us/1500us/2500us (-100° / 0° / +100°) .

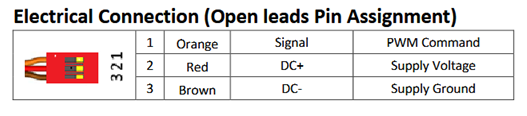

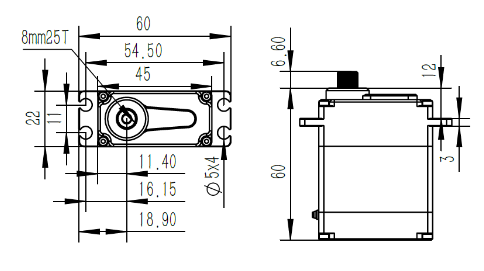

Dimensions: 45mm*22mm*60 mm(±0.2mm).
Weight: 145g±10%.
Case Material: Aluminium Alloy.
Motor Type: Brushless DC Motor
Gear Set Material: Hardened Steel. Position Sensor: Contactless
Spline: 25 Tooth (8mm)
Ball Bearing: 6BB.

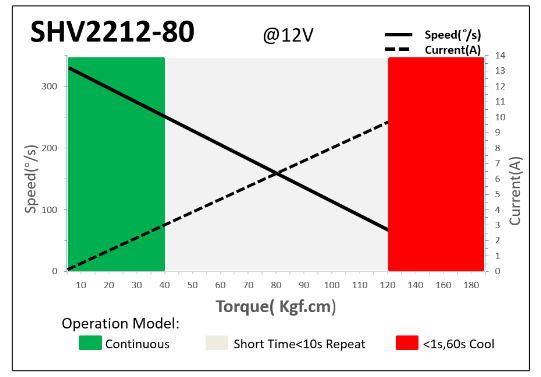

| Voltage | Holding Torque | Output Torque | No-load Speed | Stalling Current |
| 8.40V | 90Kgf.cm | 60 Kgf.cm | 0.26sec/60° | 4.50A |
| 12.0V | 120Kgf.cm | 80Kgf.cm | 0.19sec/60° | 7.25A |
| 13.0V | 130Kgf.cm | 85Kgf.cm | 0.17sec/60° | 7.65A |
