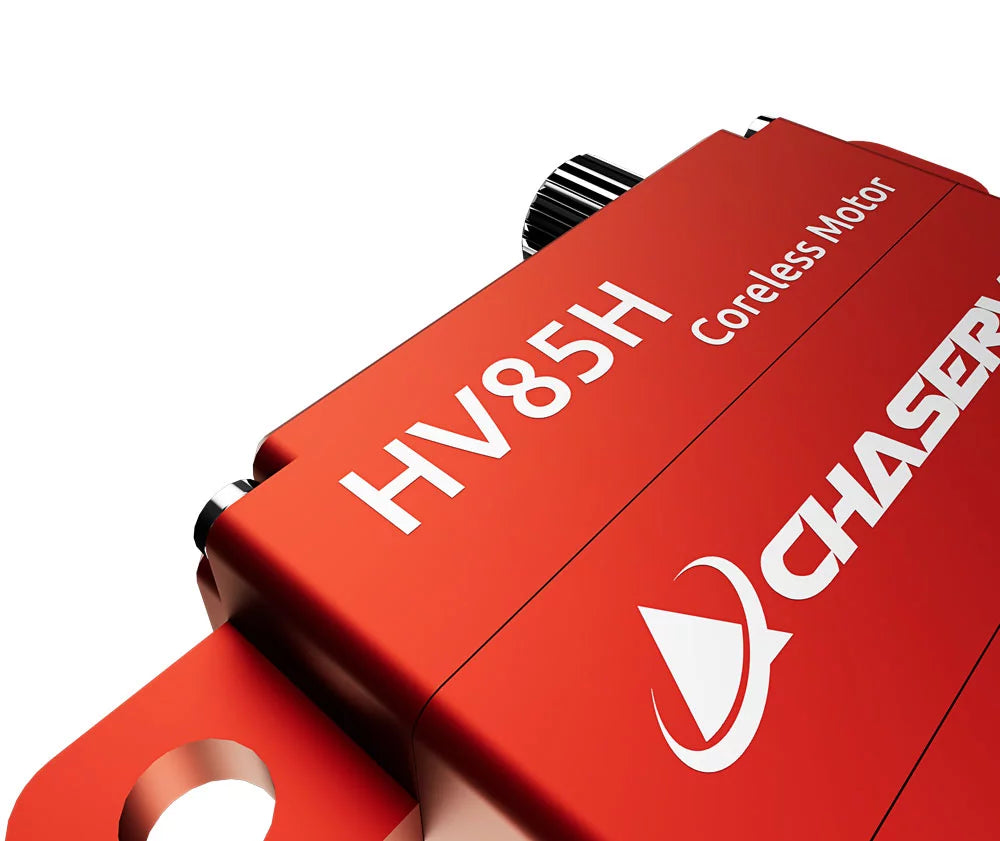

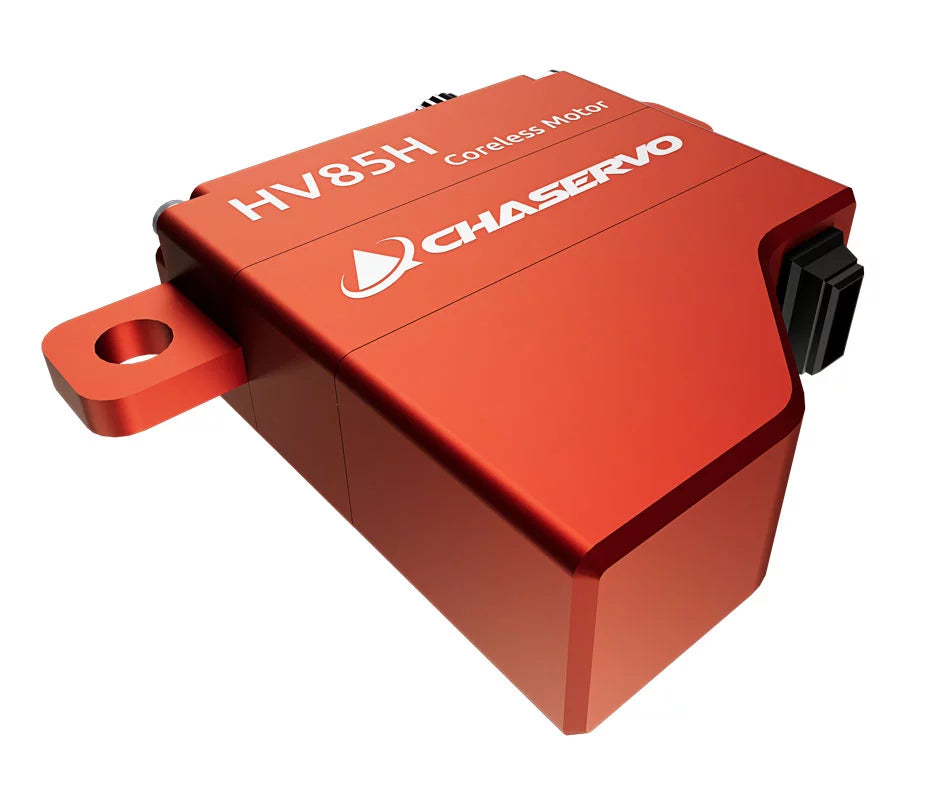

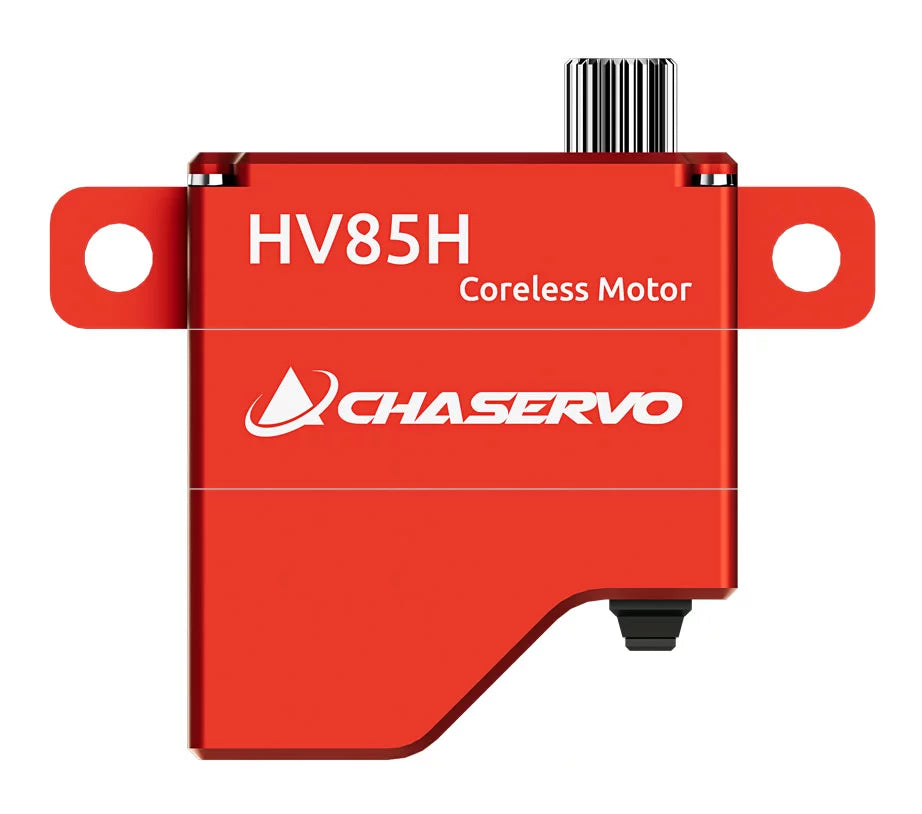

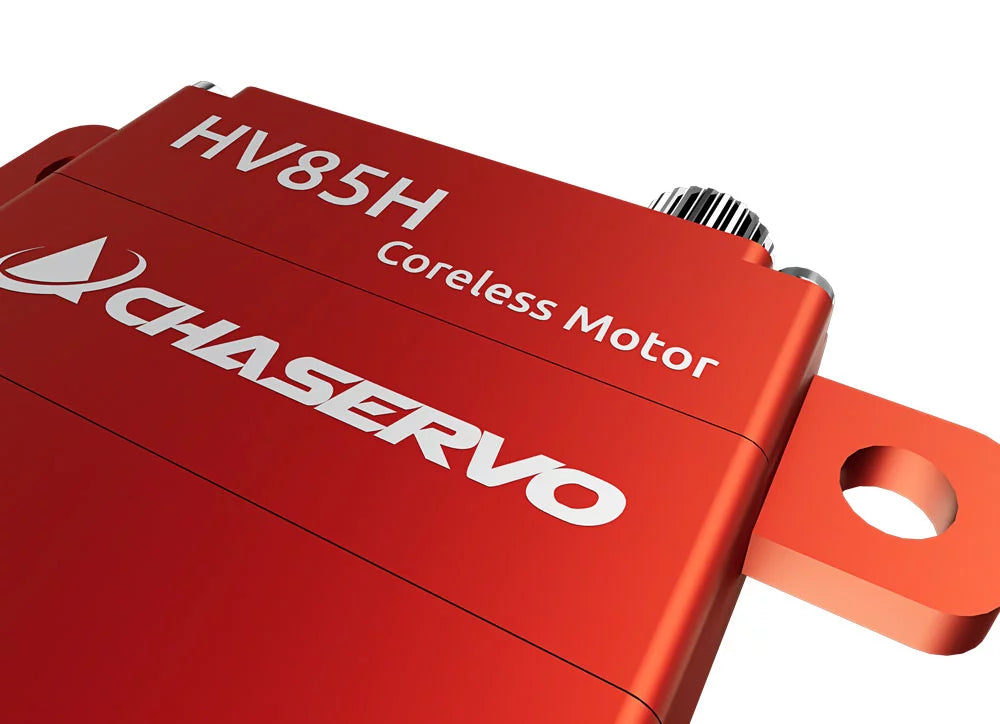

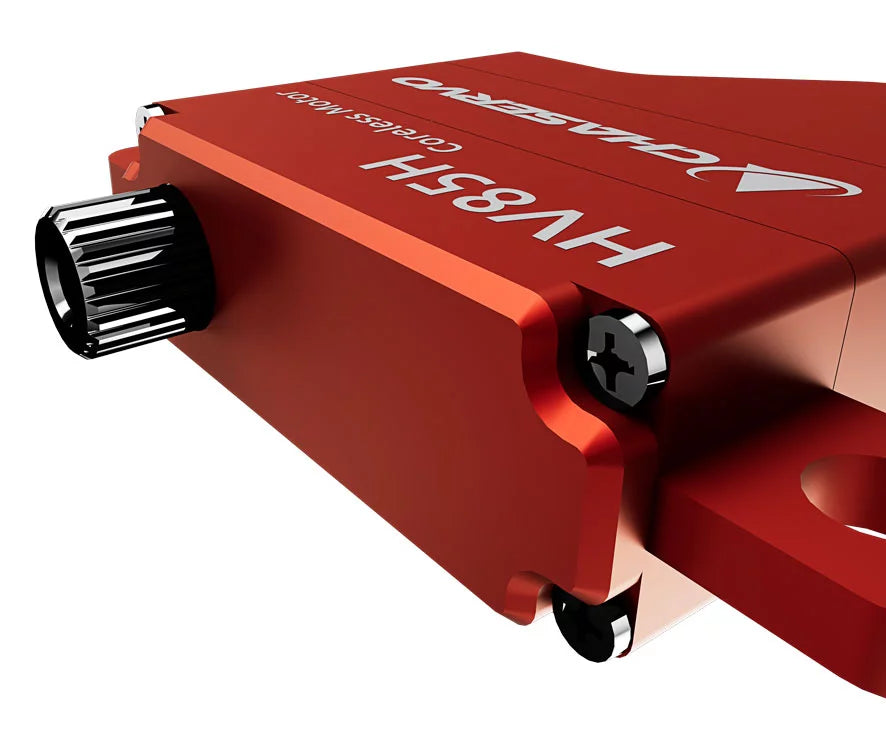

CHASERVO HV85H Mini Servo CHA-HV85H
This is sport.

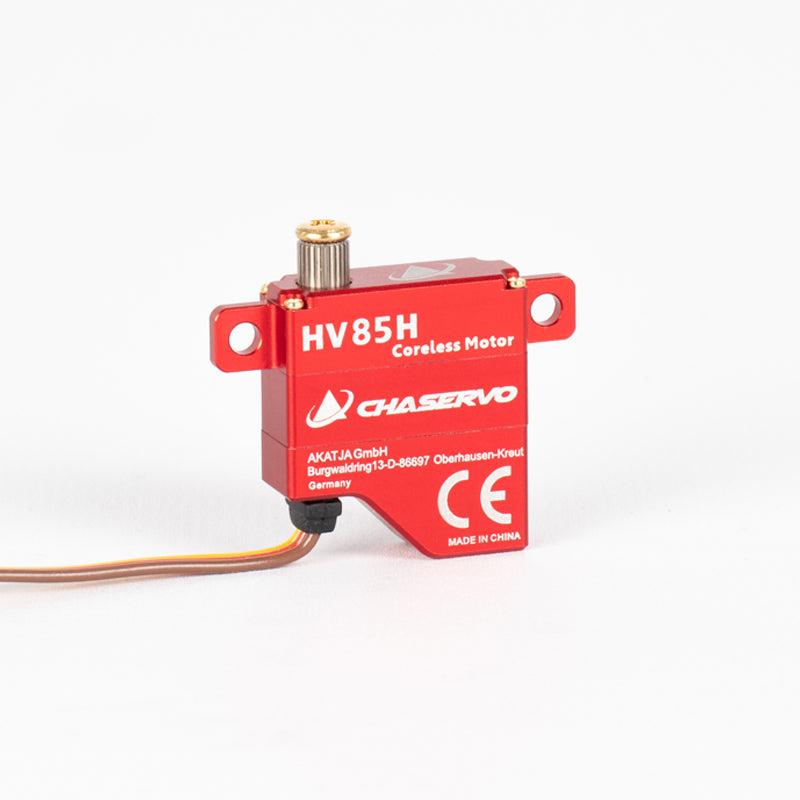

The HV85H is a powerful and precise HV servo that promises long and reliable precision work thanks to its robust design with steel gears, double ball bearings and aluminium housing.

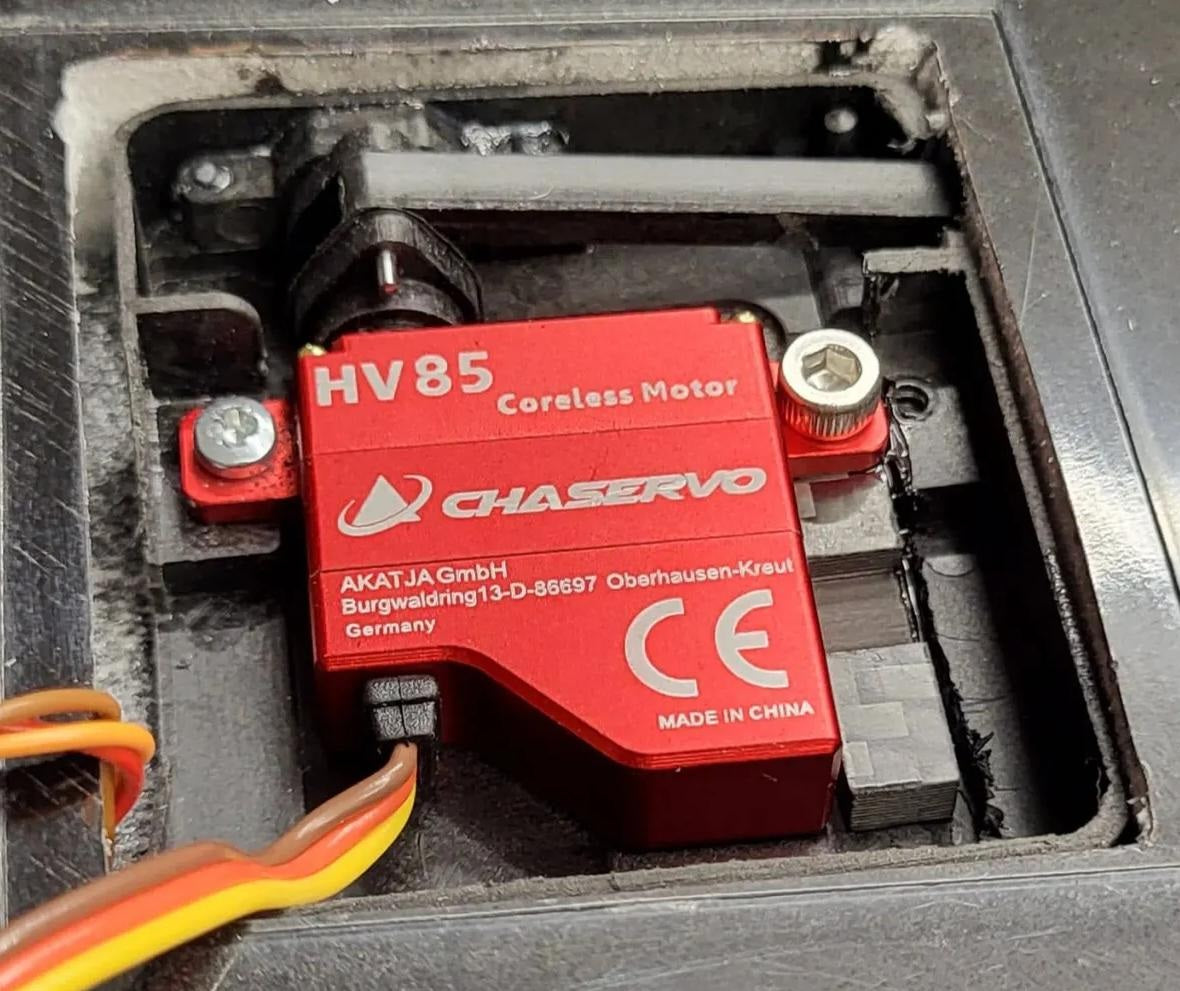

Thanks to its compact design with a depth of only 8.5 mm, the HV85H series is particularly suitable as a wing servo and enables thinner wing profiles for improved aerodynamics of the model aircraft. The range of applications extends from glider models and motorized models to high-performance jets.
Robust. Precise. Powerful
The Chaservo HV85H is a powerful and precise HV servo that is characterized by its compact design and high performance. It is ideal for a variety of modeling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package.
The Chaservo HV85H is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
Holding and Stalling Torque
Impressively fast
Idle speed of the HV85 series in comparison.
Versatile application options
The Chaservo HV85H is suitable for a wide range of applications. It is ideal for RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a small package. The compact design makes it ideal for applications that need to be used in confined spaces.

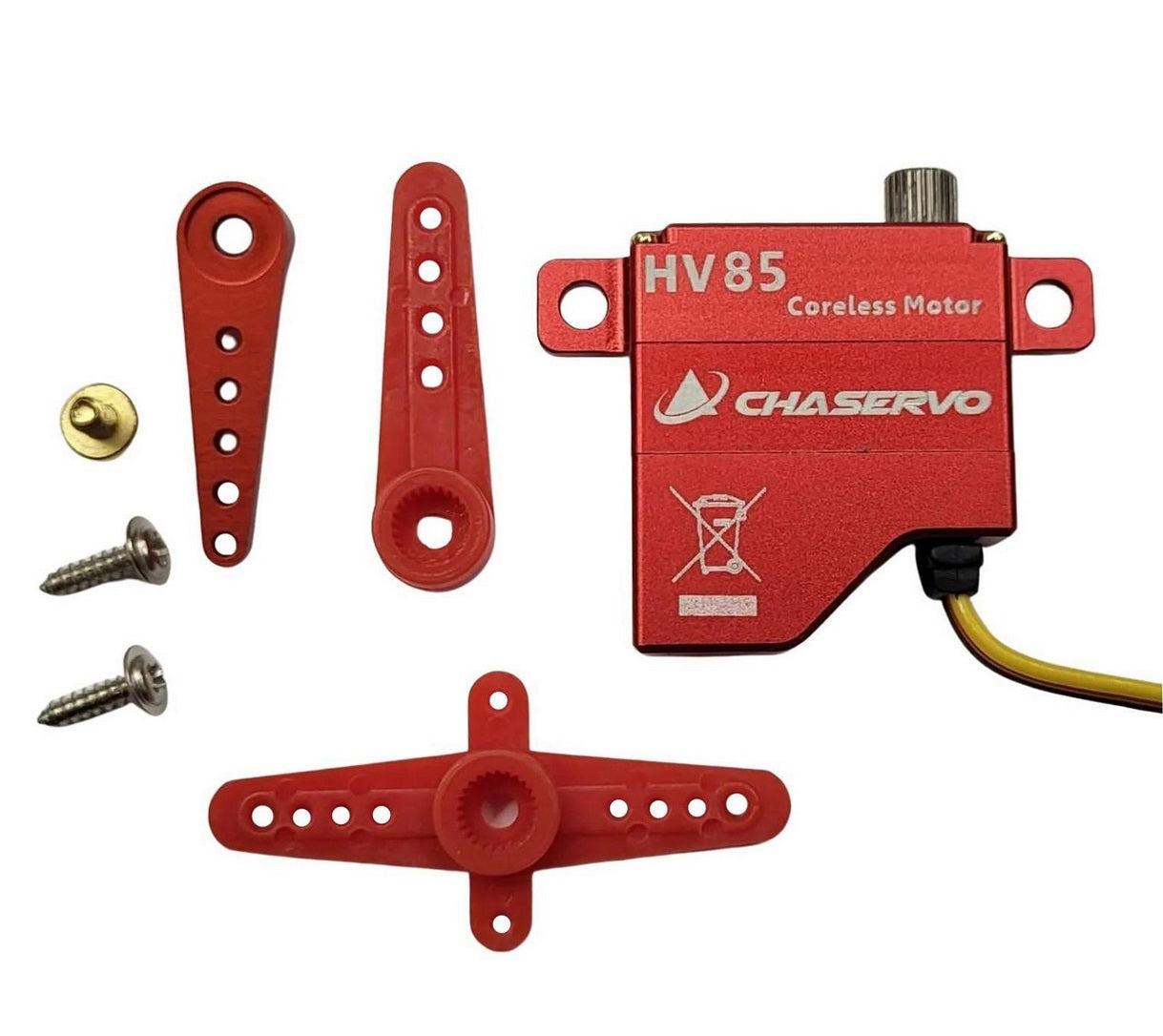

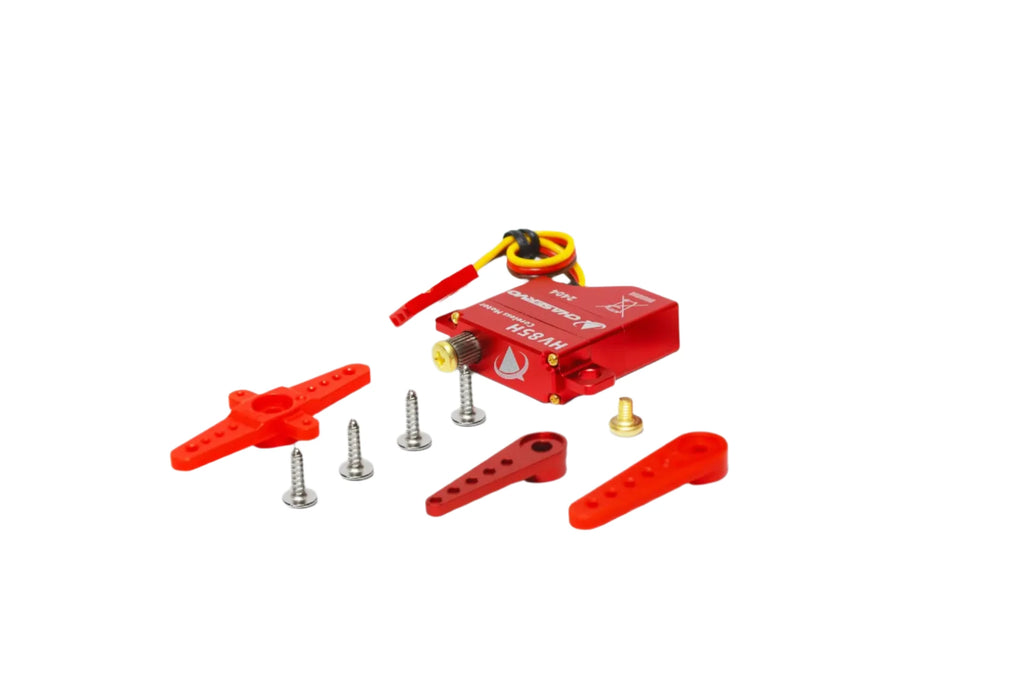

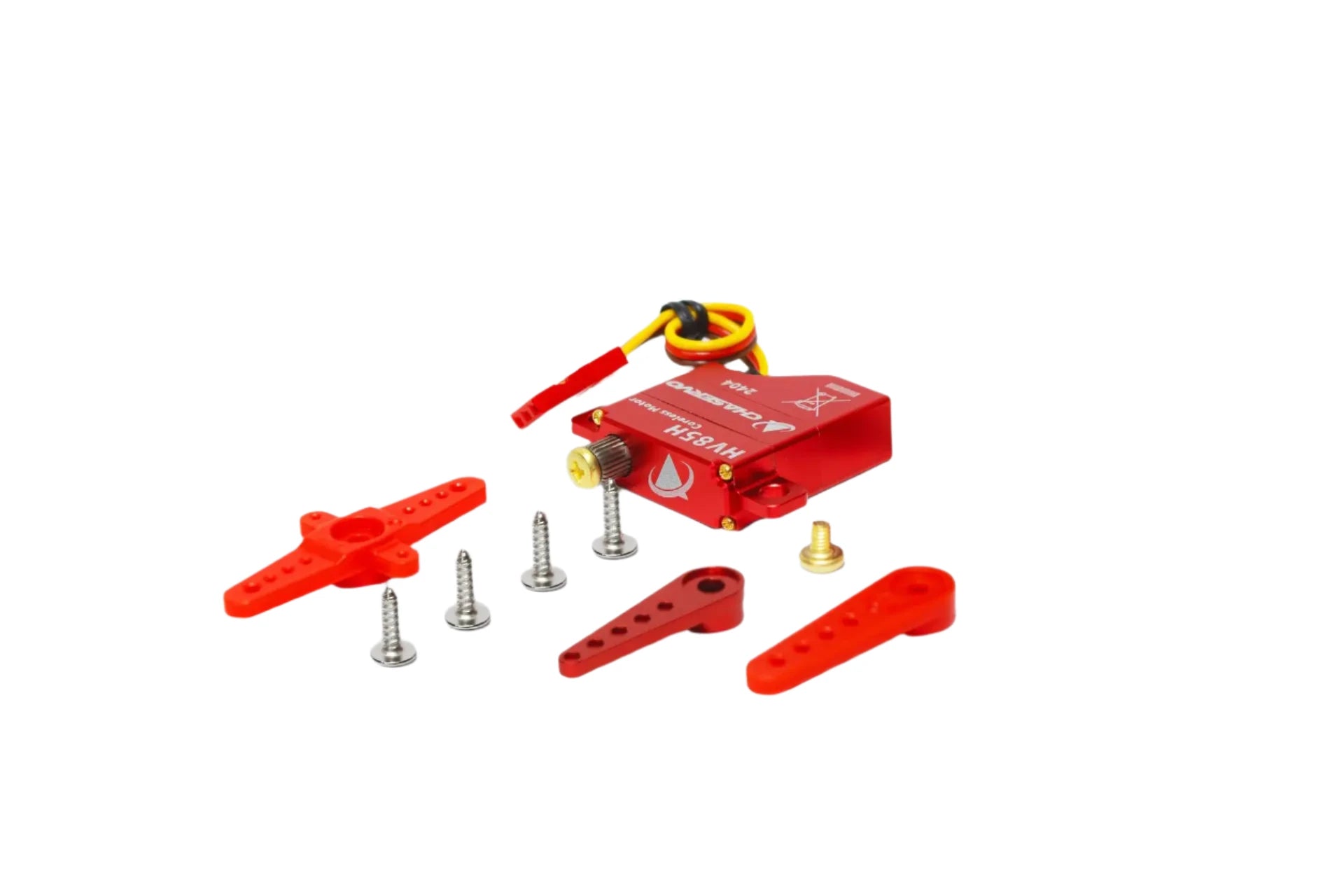

In the Box:
- HV85H Servo
- 1 metal output arm
- 2 high strength plastic output arms
- 2 arm retaining screws
- 2 mounting screws
| Servo Data |
| Version |
HV85H or HV85
|
| Brand |
Chaservo |

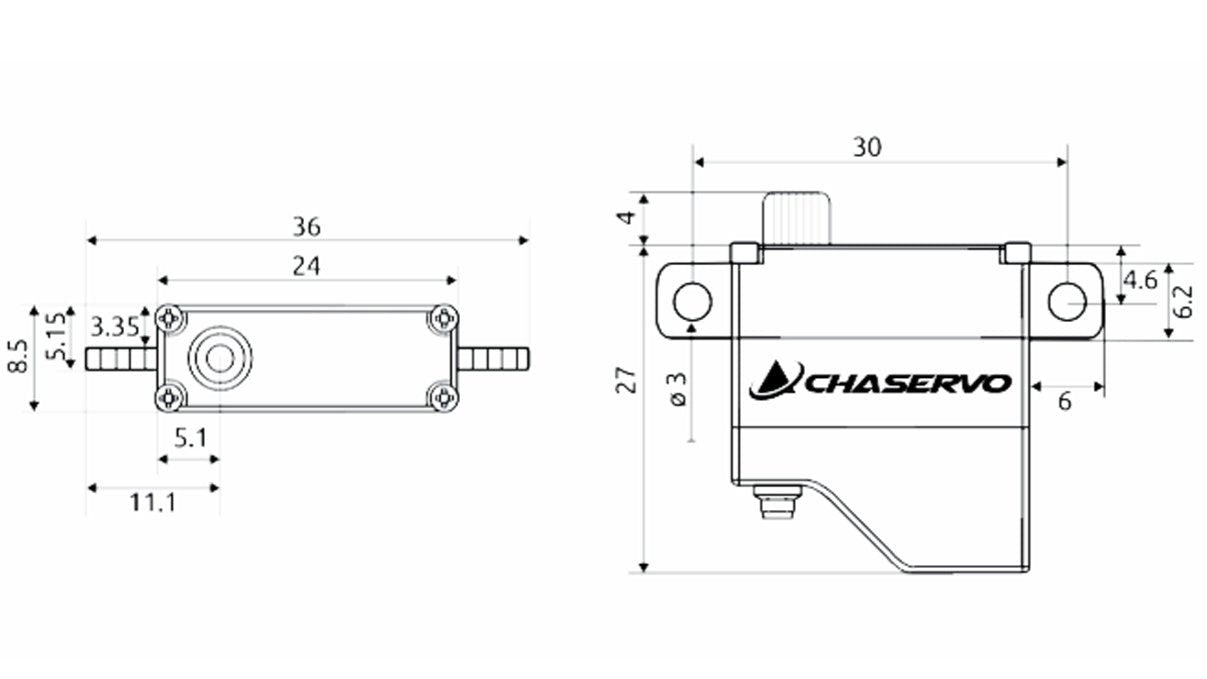

| Dimensions |
0.95 x 0.33 x 1.04 in (24 x 8.5 x 26.5 mm) |
| Weight |
0.49 oz (14 g) |
| Output Shaft Spline |
25T, 0.196 in (5 mm) |
| Rated Voltage |
DC 7.4V |
| Voltage Range |
DC 3.3 – 9.0V |
| Ball Bearing |
2 x Ball Bearing |
| Position sensor |
Potentiometer |
| Motor |
Coreless DC |
| Working Frequency |
1520µs/333Hz |
| Pulse Range |
900µs-2100µs |
| Programmable |
Ja |
| Material |
| Case Material |
Aluminium |
| Gear Set Material |
Metallgetriebe |
| Holding Torque |
| Holding Torque @ 6.0V |
99.99 oz·in (7.2 kg·cm) |
| Holding Torque @ 7.4V |
124.98 oz·in (9.0 kg·cm) |
| Holding Torque @ 8.4V |
136.10 oz·in (9.8 kg·cm) |
| Output Torque |
| Output Torque @ 6.0V |
90.27 oz·in (6.5 kg·cm) |
| Output Torque @ 7.4V |
8.2 kg·cm |
| Output Torque @ 8.4V |
123.59 oz·in (8.9 kg·cm) |
| No-load Speed |
| No-load Speed @ 6.0V |
0.16sec/60° |
| No-load Speed @ 7.4V |
0.12sec/60° |
| No-load Speed @ 8.4V |
0.11sec/60° |
| max. Current |
| max. Current @ 6.0V |
0.86 A |
| max. Current @ 7.4V |
1.08 A |
| max. Current @ 8.4V |
1.35 A |
