CHASERVO HV75 (6.5KG 8.4V) Servo HV75
Roll over image to zoom in Click on image to zoom

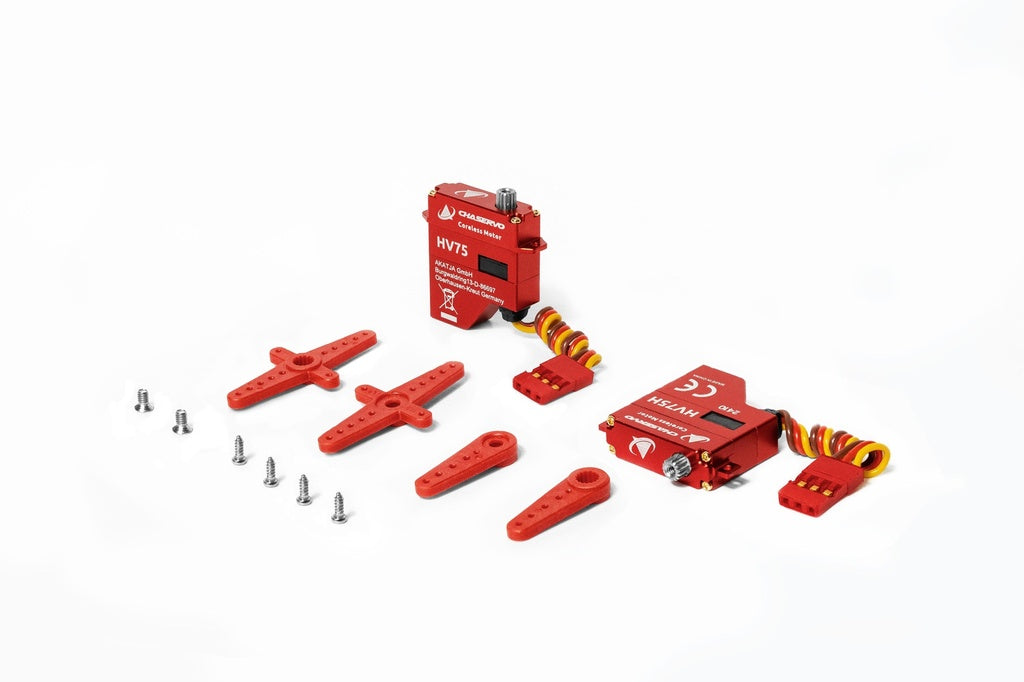

CHASERVO HV75 (6.5KG 8.4V) Servo HV75CHASERVO HV75 Servo Range 1

CHASERVO HV75 Servo 6.5KG/0.09s 8.4V CHA-HV75

Save 8%
ChaservoSKU: CHA-HV75
Price:
£54.90 £59.90
Stock:
Only 4 units left
 More payment options

Description

CHASERVO HV75 (6.5KG 8.4V) Servo CHA-HV75

Slim, fast, fantastic.

The HV75 series offers a holding force of 6.5kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.



Servo Data
Version HV75H or HV75
Dimensions 23 x 7.5 x 27.5 mm
Weight 0.42 oz (12 g)
Rated Voltage DC 7.4V
Voltage Range DC 4.8 – 8.4V
Output Shaft Spline 15T, 4mm
Position sensor Potentiometer
Motor Coreless DC
Working Frequency 1520µs/333Hz
Pulse Range 900µs-2100µs
Programmable Ja
Material
Case Material Aluminium
Gear Set Material Metallgetriebe
Holding Torque
Holding Torque @ 6.0V 4.5 kg·cm
Holding Torque @ 7.4V 6.0 kg·cm
Holding Torque @ 8.4V 6.5 kg·cm
Output Torque
Output Torque @ 6.0V 3.0 kg·cm
Output Torque @ 7.4V 4.0 kg·cm
Output Torque @ 8.4V 4.5 kg·cm
No-load Speed
No-load Speed @ 6.0V 0.13sec/60° @ 6.0 V
No-load Speed @ 7.4V 0.10sec/60°
No-load Speed @ 8.4V 0.09sec/60°
CAD Data (Vertical)
