Description

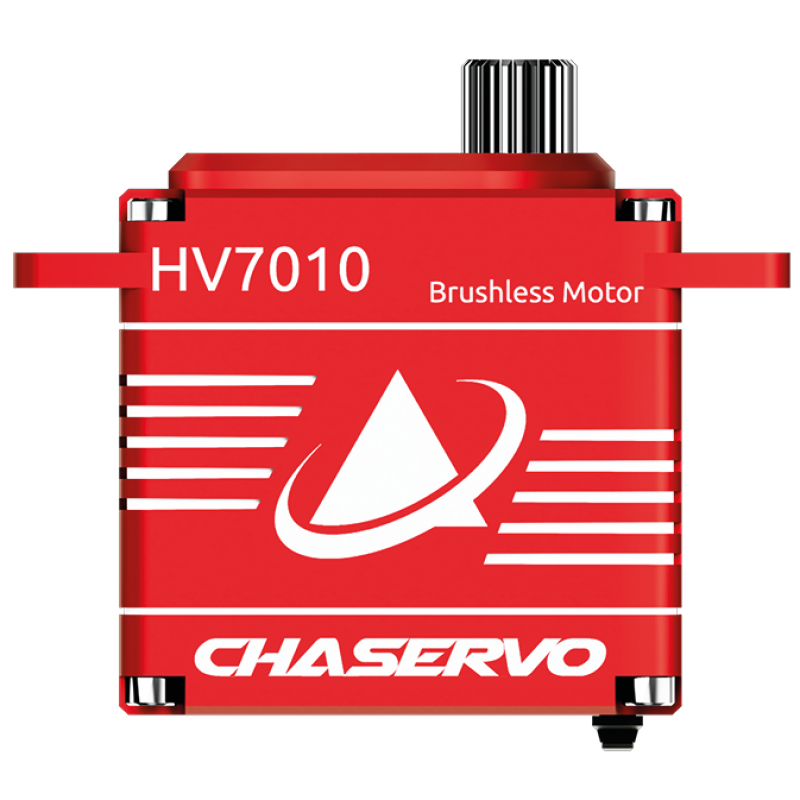

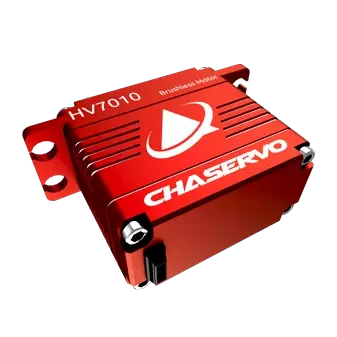

CHASERVO HV7010 Servo CHA-HV7010
Is this still standard?
The 20mm HV7010 high-performance servo is trimmed for maximum performance and speed. The use in 3D aerobatic models, large jets or many alternative applications leaves nothing to be desired.
The 8mm T25 output is designed for the toughest loads and ideal power transmission to the rudder. The housing parts are made of high-alloy aluminium and, in conjunction with six ball bearings and hardened steel gears, offer precise and backlash-free linkage.
For ideal installation, the PWM cable is led out at 90° on the housing cover. The built-in contactless Hall sensor offers ideal conditions for long-lasting properties in continuous operation and under vibrations.
The ultimate HV - standard servo
The Chaservo HV7010 is a high-performance servo characterized by its high power and speed. It is ideal for a variety of modelling applications, including RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a large package.
The Chaservo HV7010 is made of high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life.
Holding and Stalling Torque
Impressively fast
Idle speed of the HV7010 series in comparison.
Versatile application options
The Chaservo HV7010 is suitable for a wide range of applications. It is ideal for RC airplanes, gliders, powered aircraft and other models that require high performance and precision in a large package. The high power and speed also make it suitable for 3D aerobatic models and large jets.
Advantages of the HV7010
- High performance
- 4-pole brushless motor
- IP65 protection
- Precise design
- Robust design
- Versatile application possibilities
- 8mm T25 output drive
- Six ball bearings
- Hardened steel gearbox
- PWM cable routed 90° out of the housing cover
- Contactless Hall sensor

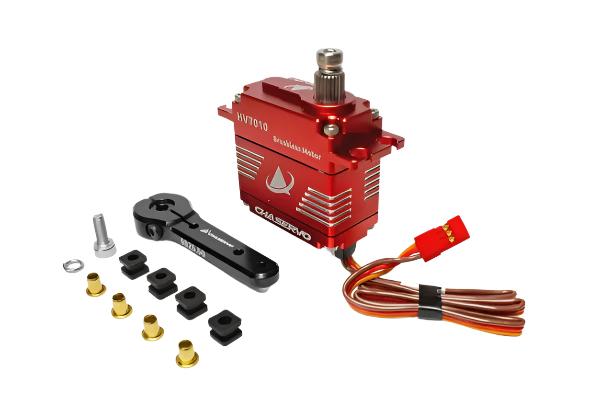

In the box:
- HV7010 Servo
- 2" aluminium servo lever 50mm length (holes: 40mm + 50mm)
- Mounting material
| Servo Data | |
|---|---|
| Dimensions | 1.57 x 0.78 x 1.57 in (40 x 20 x 40 mm) |
| Weight | 3.06 oz (87 g) |
| Rated Voltage | DC 7.4V |
| Voltage Range | DC 6.0 – 8.4V |
| Output Shaft Spline | 25T, 0.315 in (8 mm) |
| Position sensor | Contactless / Hall sensor |
| Motor | 4 Pole Brushless |
| Ball Bearing | 6 x Ball Bearing |
| Working Frequency | 1520µs/333Hz |
| Pulse Range | 500 μs – 2500 μs |
| Programmable | Ja |
| Material | |
|---|---|
| Case Material | Aluminium |
| Gear Set Material | Metallgetriebe |
| Holding Torque | |
|---|---|
| Holding Torque @ 6.0V | 694.36 oz·in (50.0 kg·cm) |
| Holding Torque @ 7.4V | 833.24 oz·in (60 kg·cm) |
| Holding Torque @ 8.4V | 972.11 oz·in (70 kg·cm) |
| Output Torque | |
|---|---|
| Output Torque @ 6.0V | 624.93 oz·in (45 kg·cm) |
| Output Torque @ 7.4V | 54 kg·cm |
| Output Torque @ 8.4V | 874.90 oz·in (63.0 kg·cm) |
| No-load Speed | |
|---|---|
| No-load Speed @ 6.0V | 0.15sec/60° |
| No-load Speed @ 7.4V | 0.12sec/60° |
| No-load Speed @ 8.4V | 0.10sec/60° |
| max. Current | |
|---|---|
| max. Current @ 6.0V | 6.25 A |
| max. Current @ 7.4V | 7.52 A |
| max. Current @ 8.4V | 8.38 A |
