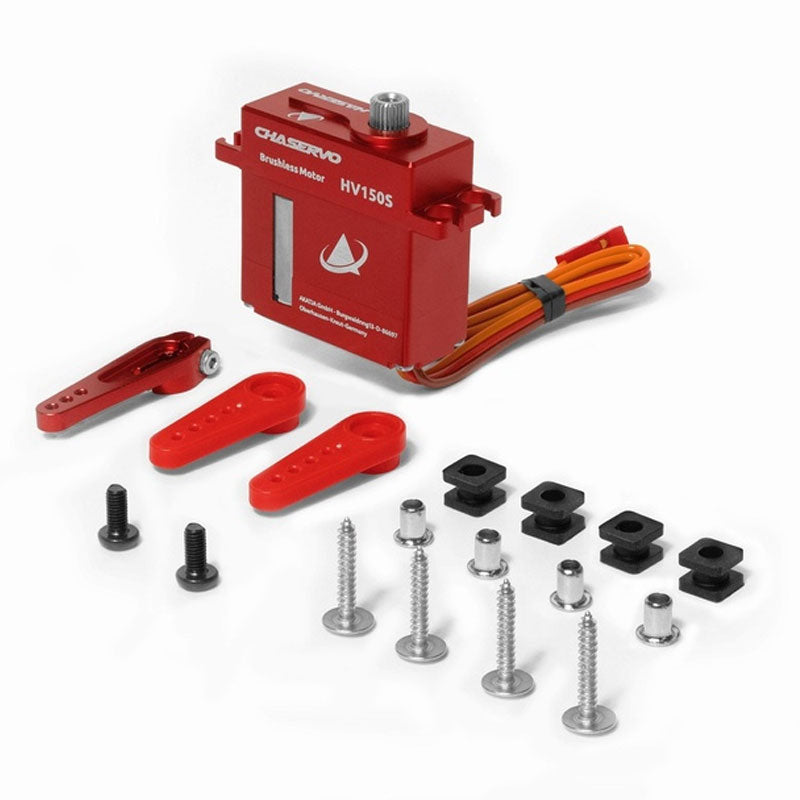

CHASERVO HV150S (Speed, 16.5KG/0.043 8.4V) MINI Servo HV150S
Roll over image to zoom in Click on image to zoom
CHASERVO HV150S (Speed, 16.5KG/0.043 8.4V) MINI Servo HV150SCHASERVO HV150S (Speed, 16.5KG/0.043 8.4V) MINI Servo HV150S

CHASERVO HV150S MINI Servo 16.5KG/0.043 8.4V CHA-HV150S

Save 9%
ChaservoSKU: CHA-HV150S
Price:
£99.99 £109.90
Stock:
Available for back order.
 More payment options

Description

CHASERVO HV150S (Speed, 16.5KG/0.043 8.4V) MINI Servo CHA-HV150S

HV150 SPEED!

The Chaservo HV150 Series has a speed of 0.043sec/60° with a holding force of up to 16.5 kg. Made for your 3D models for maximum performance! Thanks to its slim design and low weight, this high-voltage servo is able to replace numerous standard servos.

Servo data
Dimensions 35.5 x 15 x 35.5 mm
Weight 51 g
Rated voltage DC 7.4V
Voltage range DC 4.8 – 8.4V
Gearing 25T, 6 mm
Execution HV150S
Position sensor Potentiometer
Engine 4 pole brushless
Operating frequency 1520s / 333Hz
Impulse distance 900's – 2100's
Programmable Yes
Material
Housing material Aluminium
Gearbox material Metal gears
Torque Holding
Holding Torque 4.8V 10.0 kg cm
Holding Torque à 6.0V 12.5 kg cm
Holding Torque 7.4V 15 kg cm
Holding Torque à 8.4V 16.5 kg cm
Output Torque
Output Torque 4.8V 6.0 kg cm
Output Torque 6.0V 7.5 kg cm
Output Torque 7.4V 9.0 kg cm
Output Torque 8.4V 10.0 kg cm
No-load Speed
No-load Speed 4.8V 0.079sec/60°
No-load Speed 6.0V 0.061sec/60°
No-load Speed 7.4V 0.050sec/60°
No-load Speed 8.4V 0.043sec/60°
