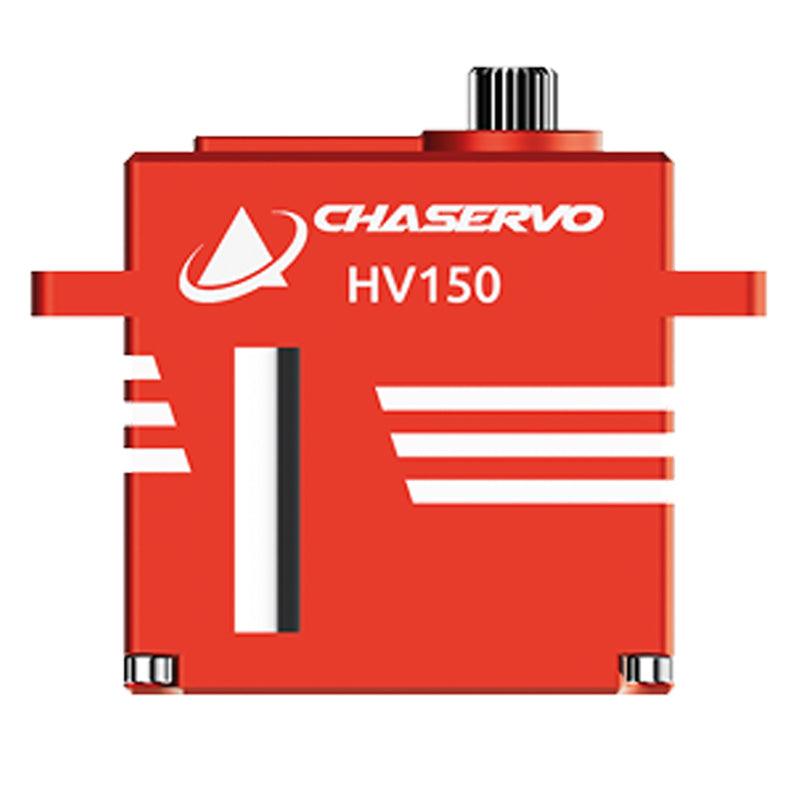

CHASERVO HV150 Servo CHA-HV150
High standard.
The Chaservo HV150 series has a holding force of 30 kg and an operating torque of 24 kg. Thanks to its slim design and low weight, this high-voltage servo is able to replace numerous standard servos.
| Servo Data |
| Version |
HV150H or HV150
|
| Dimensions |
35.5 x 15 x 35.5 mm |
| Weight |
1.79 oz (51 g) |
| Rated Voltage |
DC 7.4V |
| Voltage Range |
DC 4.8 – 8.4V |
| Output Shaft Spline |
25T, 0.236 in (6 mm) |
| Position sensor |
Potentiometer |
| Motor |
4 Pole Brushless |
| Working Frequency |
1520µs/333Hz |
| Pulse Range |
500 μs – 2500 μs |
| Programmable |
Ja |
| Material |
| Case Material |
Aluminium |
| Gear Set Material |
Metallgetriebe |
| Holding Torque |
| Holding Torque @ 4.8V |
277.74 oz·in (20.0 kg·cm) |
| Holding Torque @ 6.0V |
347.18 oz·in (25.0 kg·cm) |
| Holding Torque @ 7.4V |
416.62 oz·in (30.0 kg·cm) |
| Holding Torque @ 8.4V |
458.28 oz·in (33.0 kg·cm) |
| Output Torque |
| Output Torque @ 4.8V |
166.64 oz·in (12.0 kg·cm) |
| Output Torque @ 6.0V |
208.31 oz·in (15.0 kg·cm) |
| Output Torque @ 7.4V |
249.97 oz·in (18.0 kg·cm) |
| Output Torque @ 8.4V |
277.74 oz·in (20.0 kg·cm) |
| No-load Speed |
| No-load Speed @ 4.8V |
0.15sec/60° |
| No-load Speed @ 6.0V |
0.12sec/60° |
| No-load Speed @ 7.4V |
0.10sec/60° |
| No-load Speed @ 8.4V |
0.09sec/60° |
