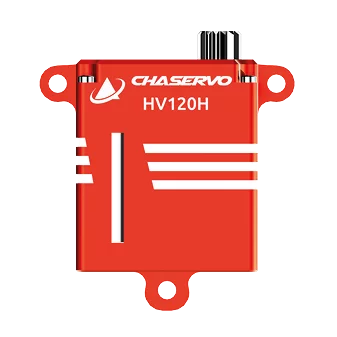

CHASERVO HV120H Servo 28kg/0.09@8.4v CHA-HV120H
Slim, fast, fantastic.
The HV120 series offers a holding force of 25 kg and is available in two versions. It is compact enough to fit into thin spaces and strong enough to play an important role in larger projects.
| Servo Data |
| Version |
HV120H or HV120
|
| Dimensions |
30 x 12 x 35 mm |
| Weight |
1.30 oz (37 g) |
| Rated Voltage |
DC 7.4V |
| Voltage Range |
DC 4.8 – 8.4V |
| Output Shaft Spline |
25T, 0.236 in (6 mm) |
| Position sensor |
Contactless / Hall sensor |
| Motor |
4 Pole Brushless |
| Working Frequency |
1520µs/333Hz |
| Pulse Range |
500 μs – 2500 μs |
| Programmable |
Ja |
| Material |
| Case Material |
Aluminium |
| Gear Set Material |
Metallgetriebe |
| Holding Torque |
| Holding Torque @ 4.8V |
249.97 oz·in (18.0 kg·cm) |
| Holding Torque @ 6.0V |
305.52 oz·in (22.0 kg·cm) |
| Holding Torque @ 7.4V |
347.18 oz·in (25.0 kg·cm) |
| Holding Torque @ 8.4V |
388.84 oz·in (28.0 kg·cm) |
| Output Torque |
| Output Torque @ 4.8V |
138.87 oz·in (10.0 kg·cm) |
| Output Torque @ 6.0V |
166.64 oz·in (12.0 kg·cm) |
| Output Torque @ 7.4V |
208.31 oz·in (15.0 kg·cm) |
| Output Torque @ 8.4V |
249.97 oz·in (18.0 kg·cm) |
| No-load Speed |
| No-load Speed @ 4.8V |
0.16sec/60° |
| No-load Speed @ 6.0V |
0.13sec/60° @ 6.0 V |
| No-load Speed @ 7.4V |
0.11sec/60° |
| No-load Speed @ 8.4V |
0.09sec/60° |
