CHASERVO DS115 Micro Servo CHA-DS115

Mini Servo. Mini Price.

The Chaservo DS115 is a first-class 11.5mm digital servo, equipped with double ball bearings and a robust metal gearbox. This fast, powerful and precise DS servo is suitable for all model building applications.

The extensive voltage range from 3.3V to 9V makes the programmable Chaservo DS115 a reliable, versatile all-round servo with impressive performance characteristics. In the high-voltage range, the servo has an enormous positioning time of just 0.08s/60° at 8.4V. The aluminum-reinforced, high-strength technopolymer housing ensures long-lasting and reliable vibration damping.

Sturdy and precise design

The Chaservo DS115 is made from high-quality materials and has a robust design. The hardened steel gearbox is wear-resistant and ensures a long service life. The aluminum-reinforced, high-strength technopolymer housing ensures reliable vibration damping.

The holding force of up to 9 kg at 8.4 V enables even heavy loads to be moved effortlessly. The rotation speed of 0.055 seconds at 8.4 V is exceptionally fast.

Holding and operating torque

Impressively fast

Versatile and fast

The Chaservo DS115 is a first-class 11.5mm digital servo that is characterized by its fast response time, high actuating force and robustness. It is suitable for all model building applications and offers excellent value for money.

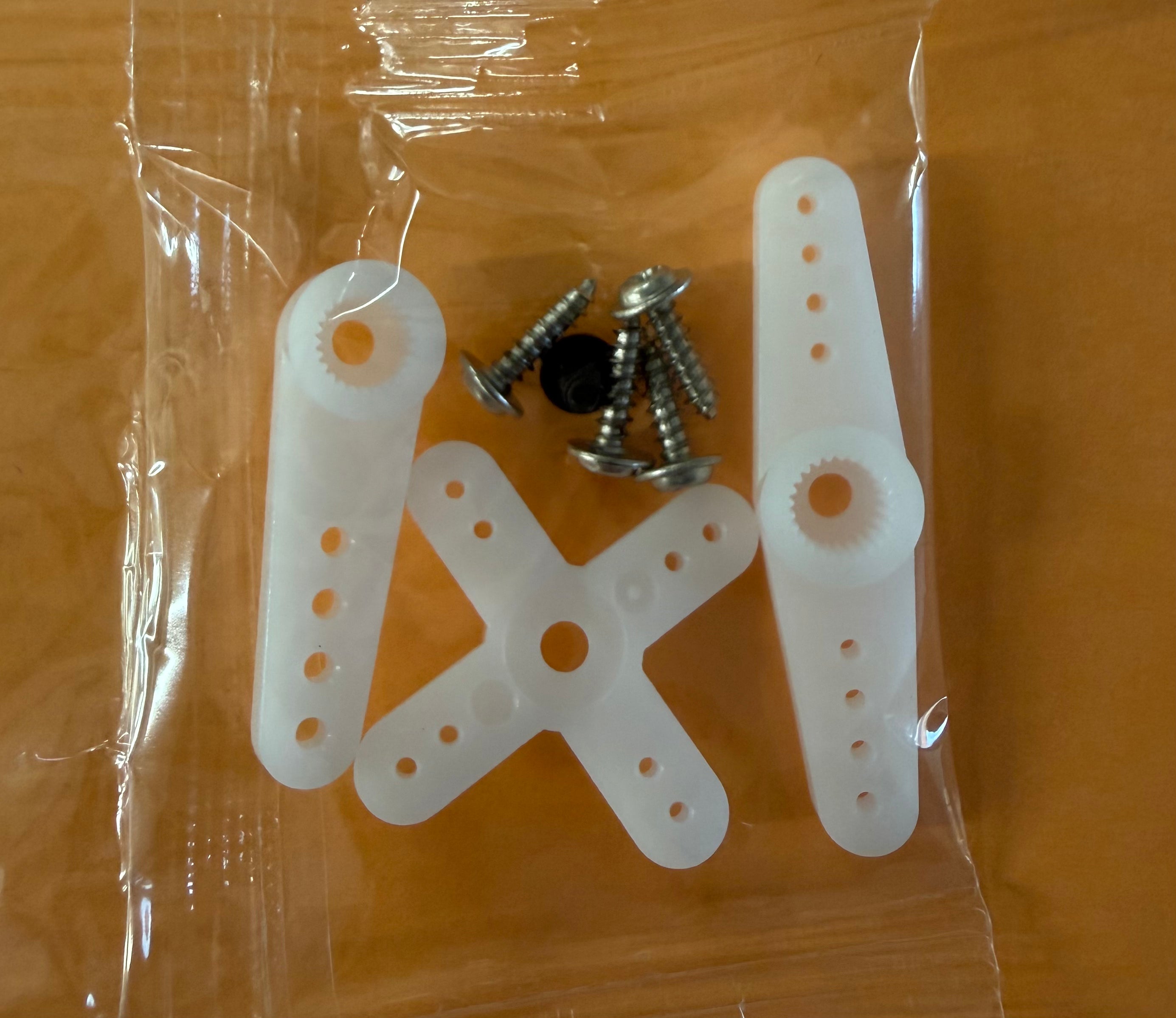

In the Box:

  • 3 plastic output arms
  • 1 arm retaining screw
  • 2 mounting screws
Servo Data
Dimensions 0.90 x 0.45 x 0.96 in (23 x 11.5 x 24.5 mm)
Weight 0.52 oz (15 g)
Rated Voltage DC 7.4V
Voltage Range DC 4.0 – 9.0V
Output Shaft Spline 25T, 0.196 in (5 mm)
Position sensor Potentiometer
Motor Coreless DC
Ball Bearing 2 x Ball Bearing
Working Frequency 1520µs/333Hz
Pulse Range 900µs-2100µs
Programmable Ja
Material
Case Material High Quality Technopolymer and Aluminium
Gear Set Material Metallgetriebe
Holding Torque
Holding Torque @ 3.5V 49.99 oz·in (3.6 kg·cm)
Holding Torque @ 6.0V 76.38 oz·in (5.5 kg·cm)
Holding Torque @ 8.4V 83.32 oz·in (6.0 kg·cm)
Output Torque
Output Torque @ 3.5V 44.99 oz·in (3.24 kg·cm)
Output Torque @ 6.0V 68.74 oz·in (4.95 kg·cm)
Output Torque @ 8.4V 74.99 oz·in (5.40 kg·cm)
