Description

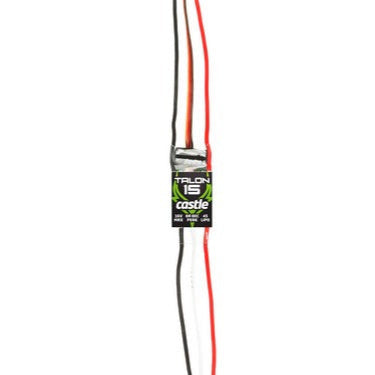

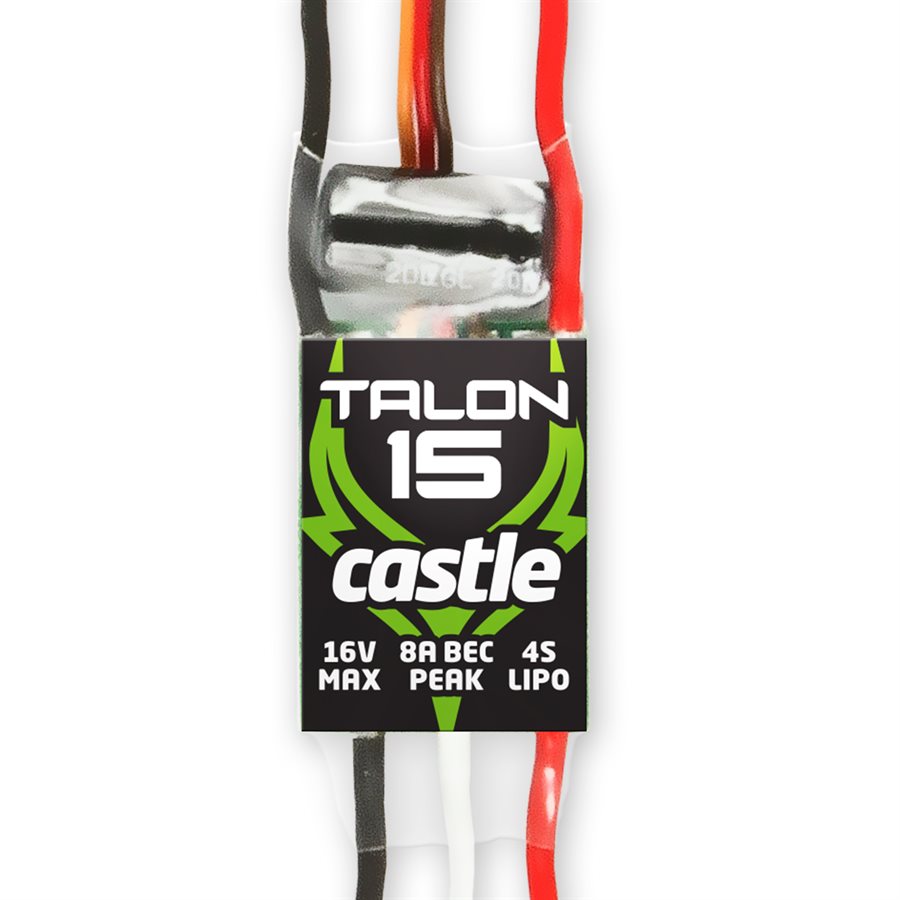

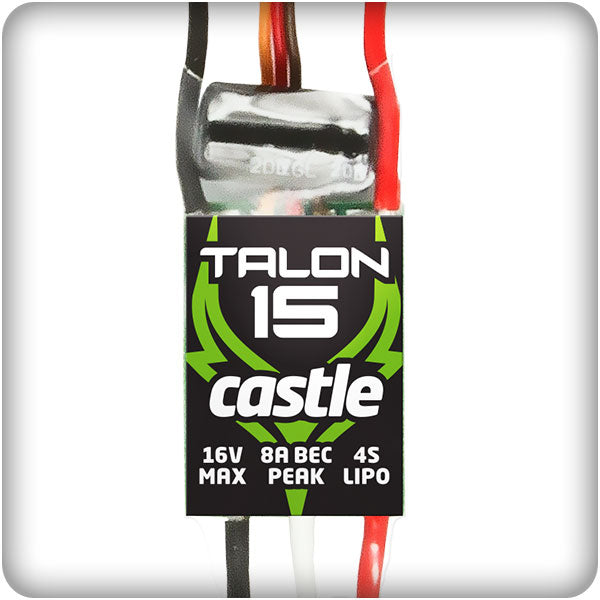

Castle Creations Talon 15a Brushless ESC 010-0129-00
We packed as much brute power and intelligence into this tiny layout as we possibly could and came up with a 15 amp* controller with ability to sustain an 8 amp BEC! Talon 15 measures just 1.1” long and is under 0.6” wide! At nearly the size of a quarter, this ESC supports an outlandish 8 amp** peak BEC with input voltage of 5.5 VDC. Applications range from foamies to micro and sub-micro helis running up to 4S and pulling 15 amps. As with any Castle ESC, the Talon 15 offers Castle’s industry-leading functions, not to mention easy programming using the Castle Link USB adapter (coupon for free Castle Link included), or the Castle Field Link Portable Programmer (sold separately).
Talon 15 is a 15 amp controller with an impressive 8 amp BEC. Applications range from foamies to micro, and sub-micro helis running up to 4S and pulling 15 amps. As with any Castle ESC, the Talon 15 offers Castle's industry-leading functions, and easy programming using theCastle Link USB adapter, or the Castle Field Link Portable Programmer (sold separately).
Product Features:
Power System Alerts:
Talon ESCs are programmed to sound a number of tunes and codes using the motor as well as flashing LED patterns to alert users to certain conditions regarding their power system, such as over temperature, excessive load and locked head speed.
Telemetry Capable:
Telemetry has the potential not only to improve the safety of our models by monitoring battery voltages, ESC temperature, and other critical parameters, but it also creates other opportunities to get even more fun out of flying because you've essentially reduced the risks of "unknown" inevitable crashes. Think of the benefits to be had from alarms that will sound to warn you when there's interference about or if your receiver battery is running unexpectedly low. Requires purchase of Castle Telemetry Link for S.BUS2 (Item # P-CC010-0152-00) and compatible Futaba Radio or Castle Telemetry Link for X-BUS (Item# P-CC010-0148-00) and a compatible Spektrum Radio.
Programmable:
Fully programmable Castle feature set using Castle Link USB adapter and freely downloadable Castle Link Windows software.
With the Castle Link USB Programming Kit you can use your WindowsT PC to easily program your controller. Castle Link includes all code for all Castle Link compatible hobby products in one convenient download. Note: Castle Link software requires a Castle Link USB Adapter and a computer that is running Windows. Castle Link is compatible with Windows Vista, Windows 7, Windows 8 and Windows 10. Macintosh users may take advantage of software such as Parallels Desktop, VMware Fusion, or Apple's Boot Camp along with Windows Vista, Windows 7, Windows 8, or Windows 10 to run the Castle Link software, provided the Macintosh has an Intel processor. Macintosh installation is not supported by Castle Creations.
Input Voltage
MIN : 2S LiPo
MAX : 4S LiPo
Max continuous amperage at full throttle
15 amps*
BEC voltage (voltage regulator for powering radio and servos)
5.5 volts
BEC output
8 amp peak**
3 amp continuous
(always check servo draw prior to first flight)
Dimensions
Width: 0.58" (14.7mm)
Length: 1.10" (27.9mm)
Depth: 0.32" (8.1mm)
Weight (with wires)
0.25 oz. (7.2g)
Weight (without wires)
0.12 oz (3.4g)
Items Needed for Operation:
Battery connector (sold separately)
Motor connectors (sold separately)
