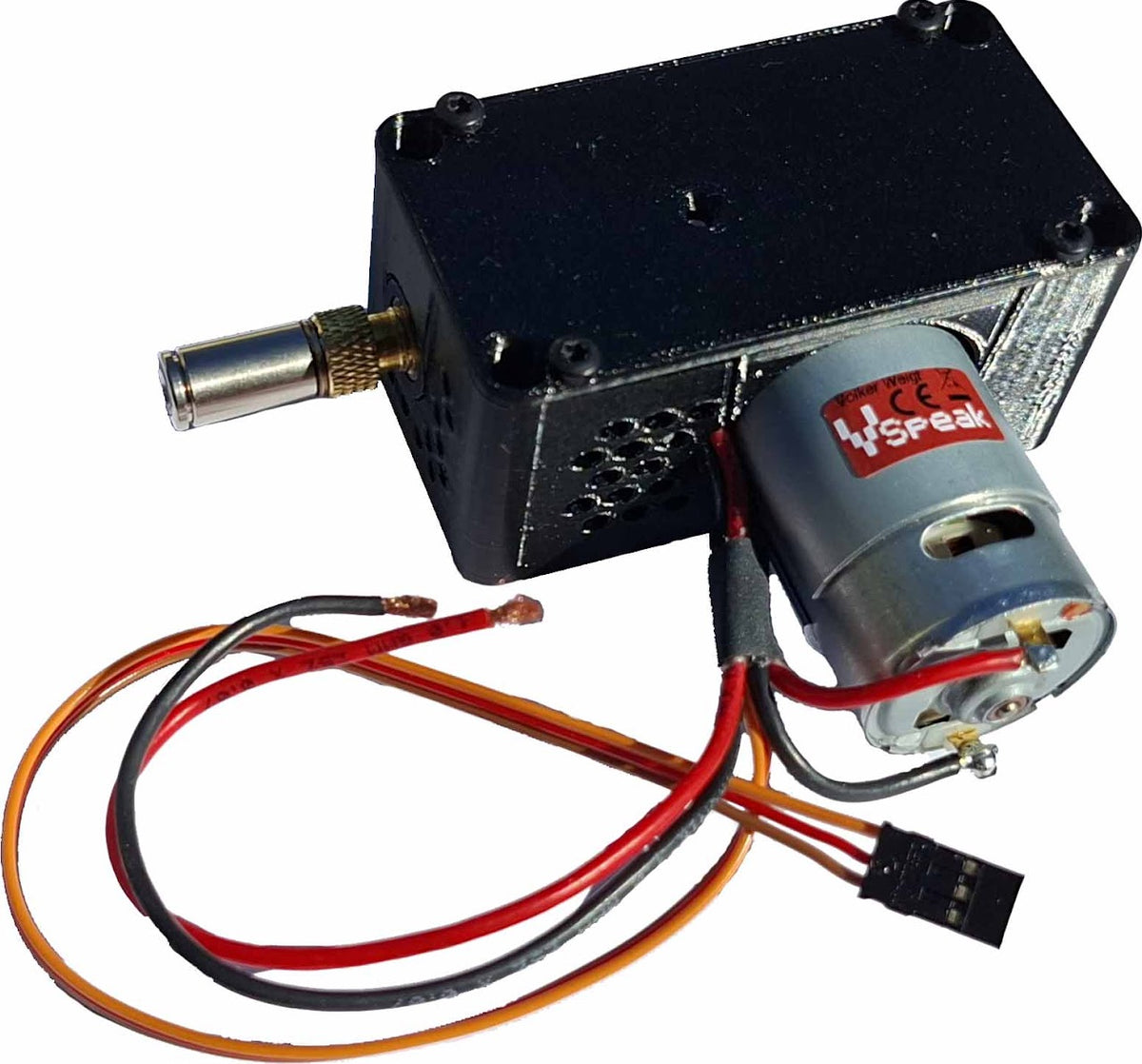

Auto Air Fill Pro Onboard Compressor & Teflon Tube for Pneumatic Retracts & Brakes etc from Vspeak
For the same weight, the Air-fill "PRO" offers approximately 30% greater air output, more robust compressor mechanics, and a more powerful motor.
Furthermore, the Air-fill "PRO" features temperature monitoring; an LED indicates when the temperature exceeds 60°C. For Jeti and PowerBox systems, the current temperature is provided as a telemetry value.
In all other respects, the Air-fill "PRO" operates in the same manner as described above under "Auto-Air-fill."
Detailed information about the Air-fill "PRO" can be found in the detailed manual.
Includes PTFE Teflon Tube 4mm od x 2mm id x 1m
VSpeak Auto-Air-fill is an only ~220g light onboard compressor for pneumatic chassis mechanics, brakes etc.
The pressure range can be adjusted as well as some other parameters. Once set, the desired pressure range is regulated fully automatically.
A previously required pressure reservoir can be significantly reduced as once filled it should top-up automatically when in use.
IMPORTANT Please Note:
When air is compressed, heat is generated, with high pressures and long-running times of the Vspeak onboard compressor a lot of heat can be generated. We, therefore recommend using the 4mm Teflon hose supplied as the direct compressed air connection to your air system.
We recommend using a minimum run of 500mm or more of the 1m length of Teflon tubing supplied in your model. More tube from the roll is available to buy from Nexus Models should you need it.
There are several operating modes for Auto-Air-fill:
Autonomous Automatic mode (remote control independent)
Automatic mode Servoport (requires a servo output to which a 3-position switch has been programmed)
Automatic mode Telemetry ort (only with Jeti and PowerBox core: Telemetry data are transferred)
This OPTO variant, the power section (i.e. motor + battery) and control section are galvanically separated from each other by means of an optocoupler.
This OPTO Version can be driven by the turbine battery at the same time, which in turn is connected to a turbine ECU with galvanic separation so that the desired potential separation is not cancelled by the compressor control.
ECU's with electrical isolation: JetCat V6, V10 ,..., HORNET2, HORNET3, ... , evoJet, Jakadofsky, AMT, SWIWIN, ...
Please Note: Vspeak Onboard Compressor is supplied with 1m of Teflon FEP Plastic Tubing
