Description
- Size: Standard
- Mounting position: optional

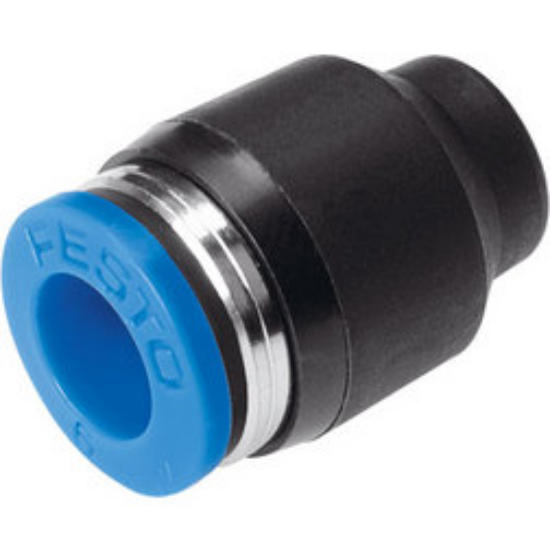

- Design: Blanking plug
- Design: Push-pull principle
- Operating pressure complete temperature range: -0.095 MPa ... 0.6 MPa
- Operating pressure complete temperature range: -0.95 bar ... 6 bar
- Operating pressure complete temperature range: -13.775 psi ... 87 psi
- Temperature-dependent operating pressure: -0.095 MPa ... 1.4 MPa
- Temperature-dependent operating pressure: -0.95 bar ... 14 bar
- Temperature-dependent operating pressure: -13.775 psi ... 203 psi
- Note on operating pressure: Water: max. 0.6 MPa at max. 50°C
- Operating medium: Compressed air to ISO 8573-1:2010 [7:-:-] Water (liquid, ice-free)
- Note on operating and pilot medium: Lubricated operation possible
- Corrosion resistance class CRC: 1 - Low corrosion stress
- LABS (PWIS) conformity: VDMA24364-B1/B2-L
- Cleanroom class: Class 4 according to ISO 14644-1
- Ambient temperature: -10 °C ... 80 °C
- Product weight: 3.5 g
- Pneumatic connection, port 1: For tubing outside diameter of 6 mm
- Colour of release ring: Blue
- Note on materials: RoHS-compliant
- Material housing: PBT
- Material release ring: POM
- Material tubing seal: NBR
- Material tubing clamp component: High-alloy stainless steel
