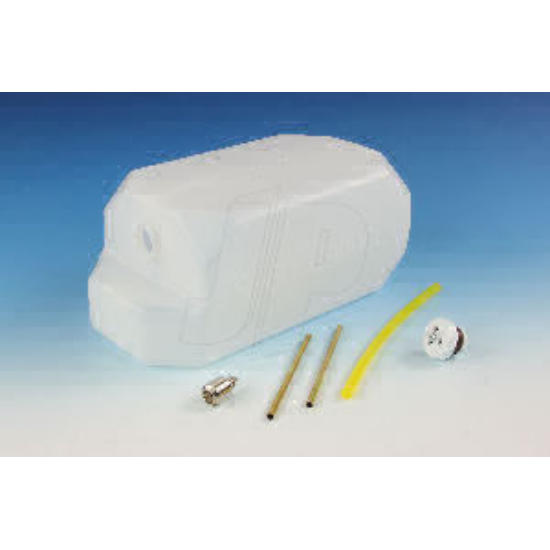

Name: 100oz (3000cc) Dubro Fuel Tank
Brand: Dubro
SKU: DUB797
Price: 69.99 GBP
Availability: InStock

Roll over image to zoom in Click on image to zoom

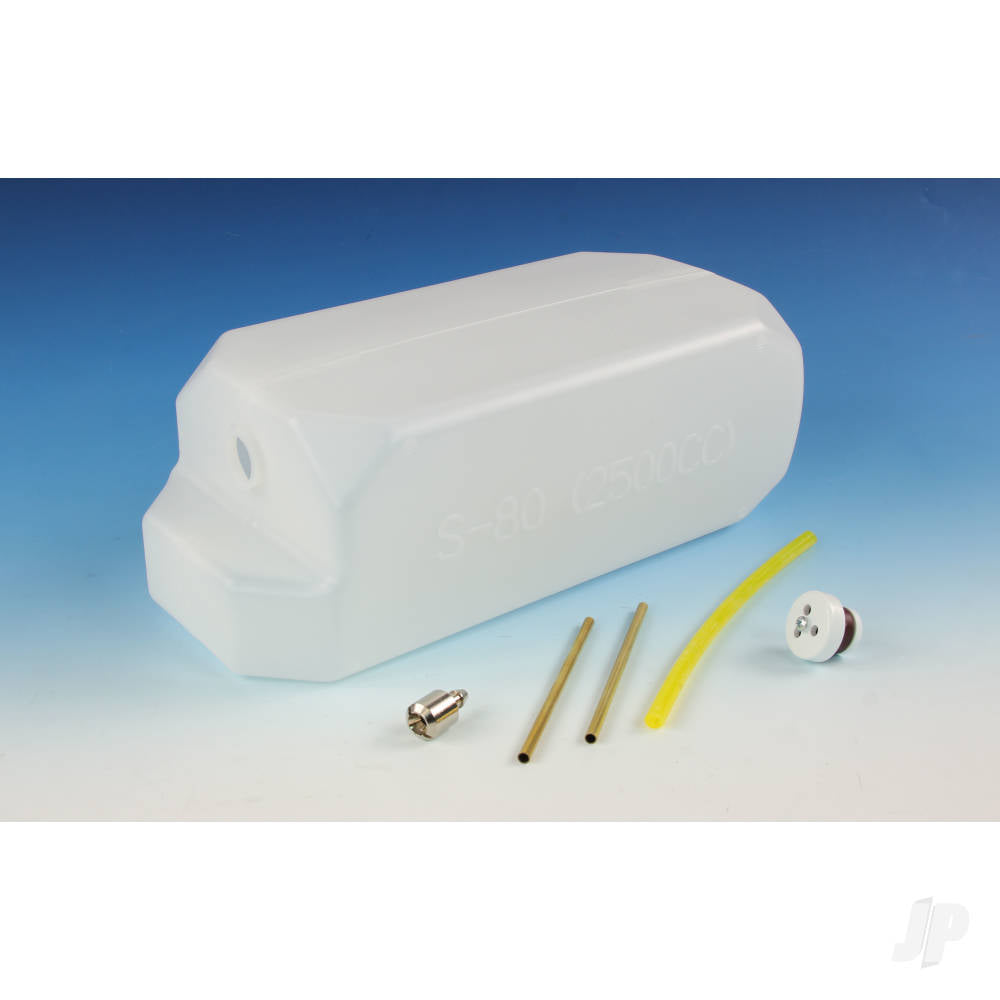

100oz (3000cc) Dubro Fuel Tank DUB797

Dubro fuel Tanks are legendary for being durable and reliable. In more than 25 years, there has never been a failure of a Dubro Tank. This is because the process and material used are superior to most other tanks on the market.

To understand this completely, you would need to know a bit about the process of blow-molding, but let's just say they could have faster production times and more profit in their pockets if they cut some corners…but that is not the Dubro way!

Their new Big Fuel Tanks are no different than all of their smaller tanks in that they maintain their strict level of quality control and dedication to making a reliable tank for your large scale aircraft.

What does this mean for you? Now you can enjoy longer flight times with less refueling, more time for go-arounds while practicing or competing and you will be watching the aircraft more and the clock less knowing you have plenty of fuel on board. Plus, as all of their big tanks can be used with pressurized fuel systems.

All this performance and reliability, and they even include all the needed hardware!

Size - 29 x 9.3 x 13cm
Vent - Single or Twin Vent
Clunk - Large Nickel Plated
Bung - Petrol Bung Fitted as Standard
Weight - 240g
Brass Tube - 5/32 Easy Bend

SIZE	HEIGHT	WIDTH	LENGTH	WEIGHT
2 oz	1 5/16" (33.34 mm) H	1 13/16" (46.04 mm) W	2 3/4" (69.85 mm) L	(34 grams)
4oz	1 1/2" (38.1 mm) H	2 1/16" (52.39 mm) W	3 3/4" (95.25mm) L	(41 grams)
6oz	1 7/8" (47.63 mm) H	2 3/16" (55.56 mm) W	3 7/8" (98.43mm) L	(56 grams)
8oz	1 15/16" (49.21 mm) H	2 5/16" (58.74 mm) W	4 7/8" (123.83 mm) L	(64 grams)
10oz	2 1/4" (57.15 mm) H	2 9/16" (65.09 mm) W	4 7/8" (123.83 mm) L	(66 grams)
12oz	2 1/4" (57.15 mm) H	2 9/16" (65.09 mm) W	5 3/8" (136.53 mm) L	(68 grams)
14oz	2 3/8" (60.33 mm) H	2 11/16" (68.26 mm) W	5 3/8" (136.53 mm) L	(72 grams)
16oz	2 3/8" (60.33 mm) H	2 11/16" (68.26 mm) W	5 7/8" (149.23mm) L	(77 grams)
20 oz	2 1/2" (63.5 mm) H	3 1/16" (77.79 mm) W	7" (177.8 mm) L	(96 grams)
24 oz	2 1/2" (63.5 mm) H	3 1/16" (77.79 mm) W	7 1/2" (190.5 mm) L	(100 grams)
32 oz	3" (76.2 mm) H	3 11/16" (93.66 mm) W	7 3/4" (196.85 mm) L	(160 grams)
40oz	3 1/4" (82.55 mm) H	4" (101.6 mm) W	8" (203.2 mm) L	(178 grams)
50oz	3 1/2" (88.9 mm) H	4 3/8" (111.13 mm) W	8 3/8" (212.73 mm) L	(186 grams)
60oz @6 P.S.I.	3 5/8" (92.075 mm) H 4.46" (113.28mm) H	4 1/2" (114.3 mm) W 5.090" (129.29mm) W	8 5/8" (219.08 mm) L 8.805" (223.65 mm) L	(182 grams)
80oz @6 P.S.I.	3 5/8" (92.075 mm) H 4.705" (119.51 mm) H	4.812" (122.2 mm) W 5.27" (133.86 mm) W	10.5" (266.7 mm) L 10.755" (273 mm) L	(225grams)
100oz @6 P.S.I.	3 5/8" (92.075 mm) H 4.99" (126.75 mm) H	5 1/4" (133.35 mm) W 5.70" (144.78 mm) W	11 5/8" (295.2 mm) L 12.035" (305.7 mm) L	(240 grams)

100oz (3000cc) Dubro Fuel Tank

Description

100oz (3000cc) Dubro Fuel Tank DUB797
