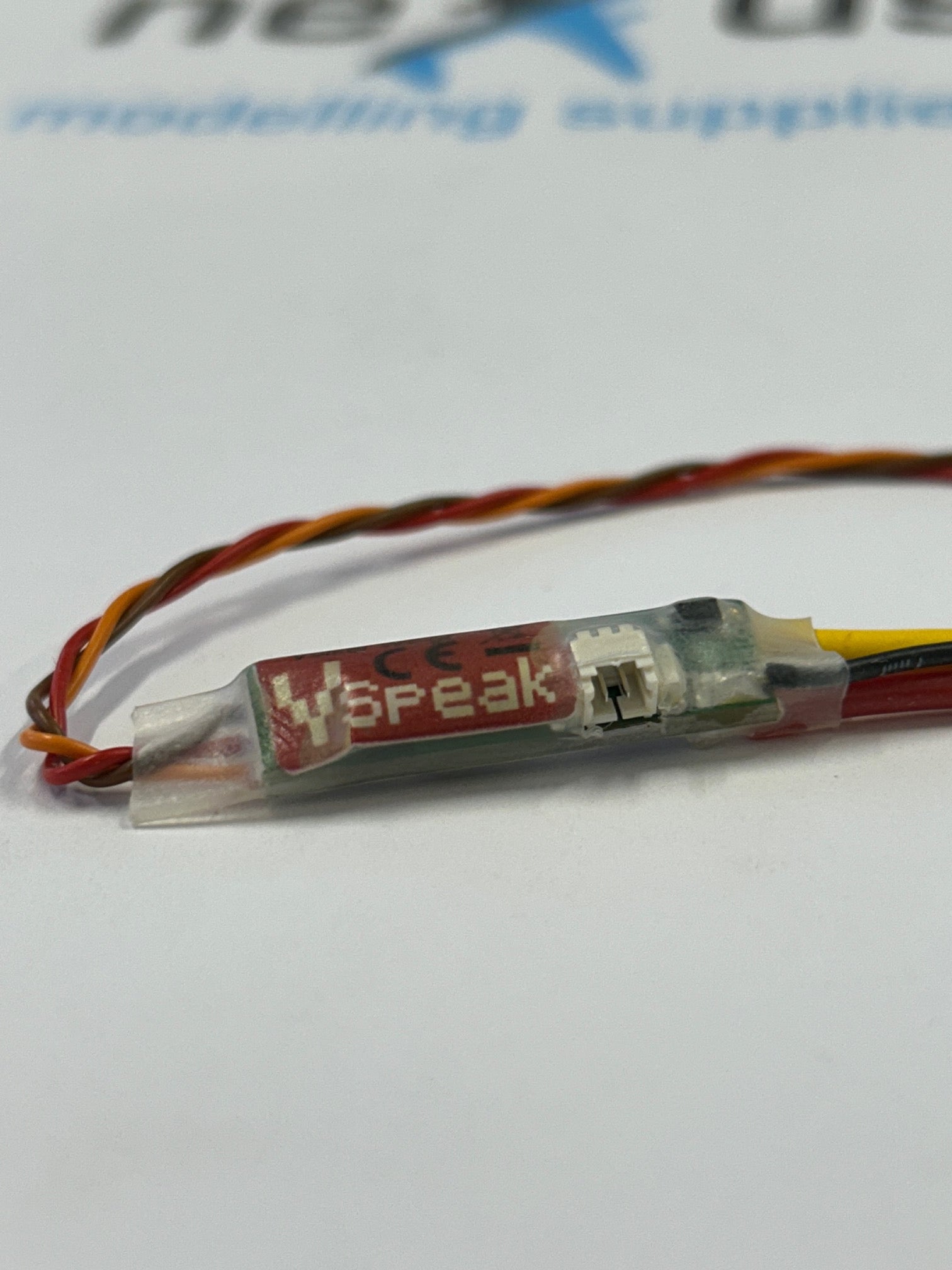

Vspeak Electronic switch 20A (opto) ideal for Ignition System or Pumps
The electronic switch (opto) is a small device without any moving parts. Therefore it is resistant to any kind of impact and vibration. It is especially designed for the rough environment in RC-models. Due to the flexible programmability it can be used for virtually any application like lights, ignition, pyrotechnics, but also for functional models like tanks, trucks and many more. It is also possible to control more than one electronic switches with only 1 channel of your radio.
The electronic switch 20A (opto) is the improved electronic switch 2A (opto). It can now switch 10 times the current of the previous version. Opto means galvanic isolation of the control section and switch output via optical couplers.
2 operating modes can be set:
Default is mode 1, wherein the output is switched as in the previous 2A-switch (e.g. ignition switch as Electronic ignitions of gasoline engines).
In mode 2 the output is clocked (pulse width modulation) in the ON state. The duty cycle can be programmed by using a magnet. Thus, the switch is suitable for direct control of glow plugs for methanol engines.
The electronic switches are small devices without any moving parts. Therefore they are resistant to any kind of impact and vibration. They are especially designed for the rough environment in RC-models.
The programming of the on position/range is achieved by using a magnet.
The current switch state and faults are displayed with the onboard green LED.
Please Note: A optional external Blue LED is available.

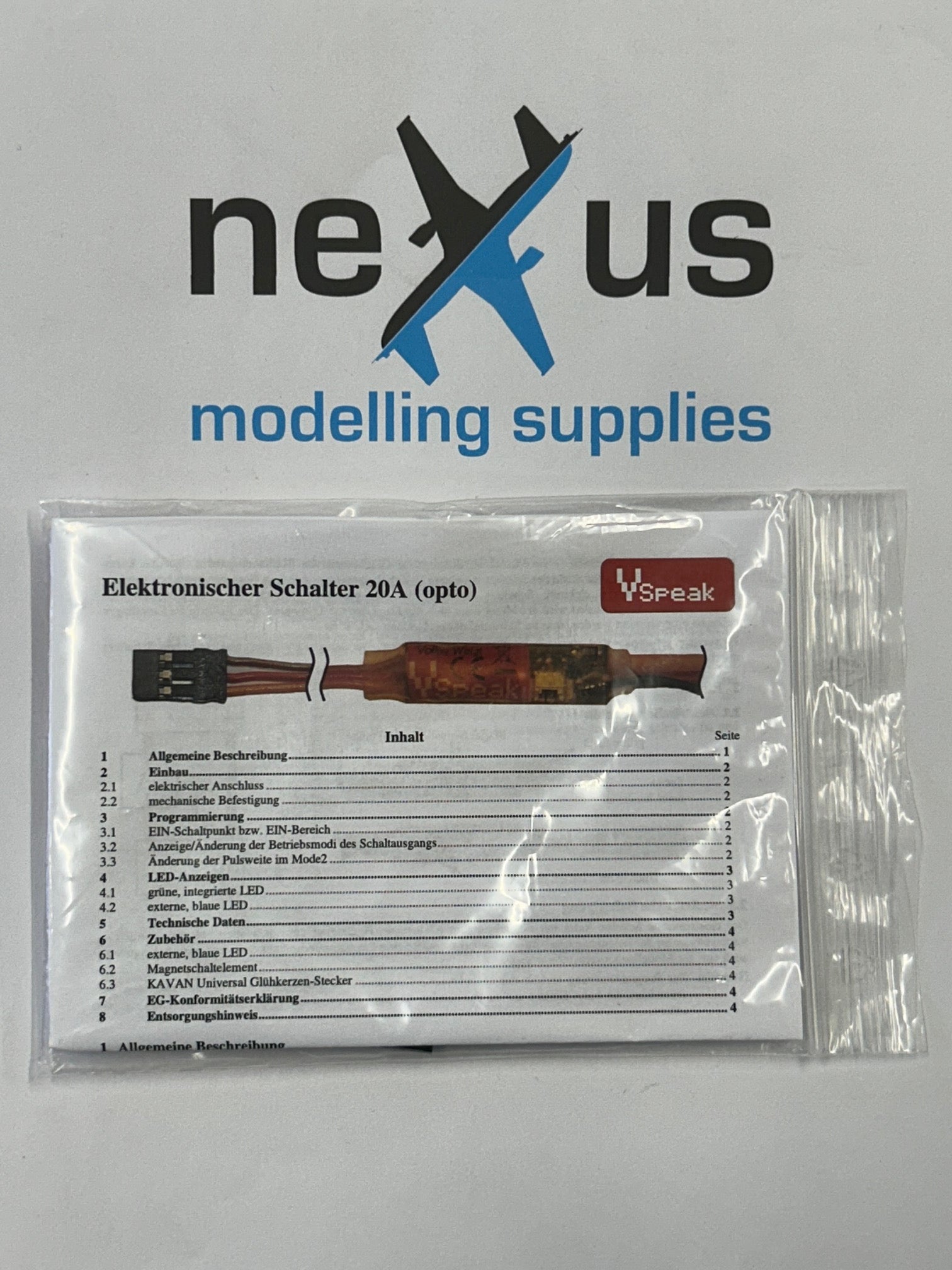

Click Here for the Manual
