UniLight 10mm SLIM Navigation Light, 4x2W, T-Fuse, White PIN10F-040x2-WE

UniLightSKU: PIN10F-040x2-WE

Price:
Sale price£25.90
Stock:
Only 5 units left
 More payment options

Description

UniLight 10mm SLIM Navigation Light, 4x2W, T-Fuse, White PIN10F-040x2-WE

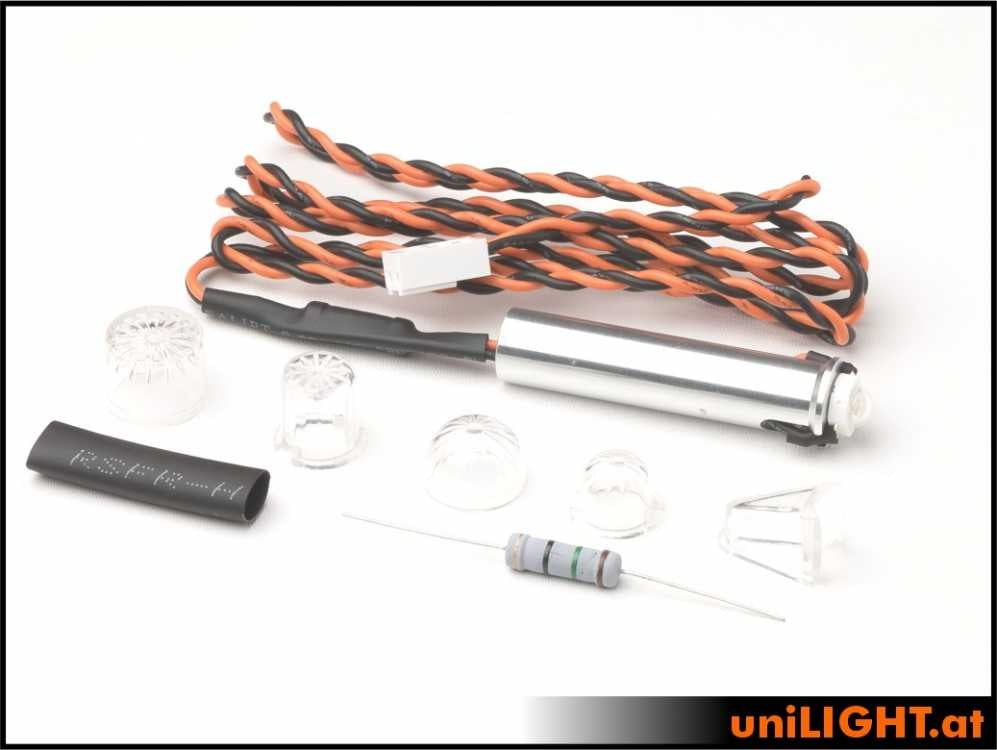

Slim LED high-performance light with 4W reference power and x2 chip technology for operation as a position/navigation light on a wide range of models. The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminium heat sink, and 5 high-strength polycarbonate caps are included for free use:

1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
and 1x profile extension 10mm

The caps can be glued separately and painted individually in the model color. Any non-evaporating adhesive is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, Canopy Glue,... Ideal as a navigation light on all models from 2m to 3.5m. The light is equipped with an integrated temperature fuse, which switches off at 65°C and reactivates automatically after it has cooled down.

Technical Data:

Electricity: 8W reference power, 8(12)V, 0.35A
Beam angle: >160°
Light intensity: ~100 Lumen RED
Light intensity: ~140 Lumen GREEN
Light intensity: ~190 Lumen WHITE
Dimension cooling tube: D10x45mm, flange D12mm
Dimension light cap: D10x12.5mm, flange for carrier D12mm
Total mass: D10/12mm, 57.5mm length
Weight: 5g (without cable)
