UniLight 10mm SLIM Navigation Light, 4x2W, T-Fuse - Red PIN10F-040x2-RT

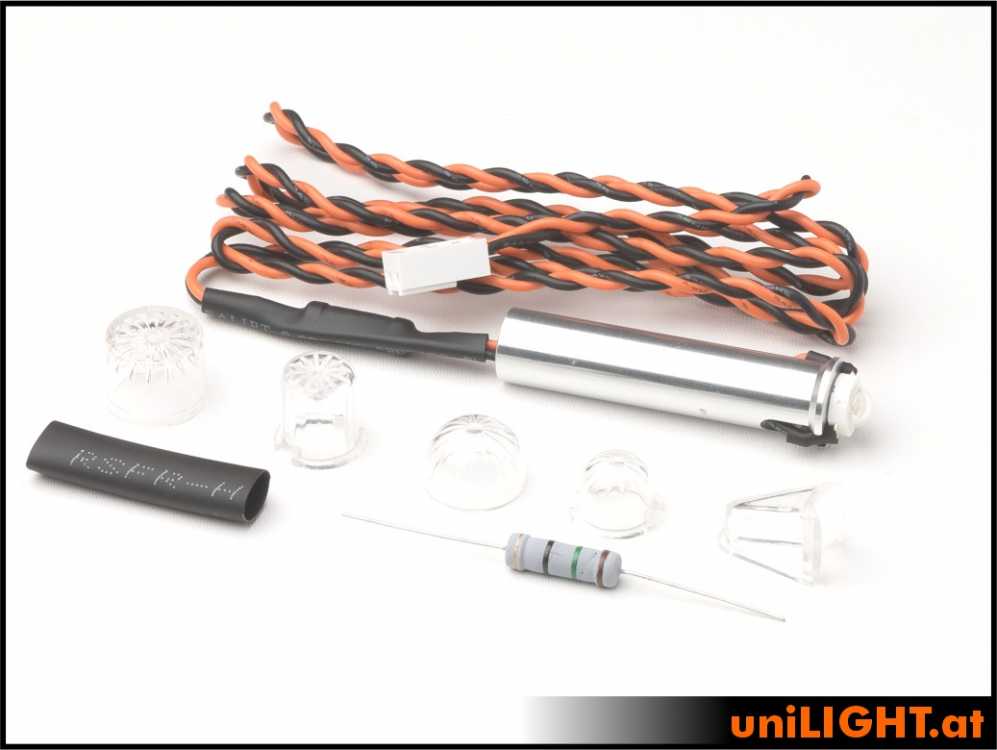

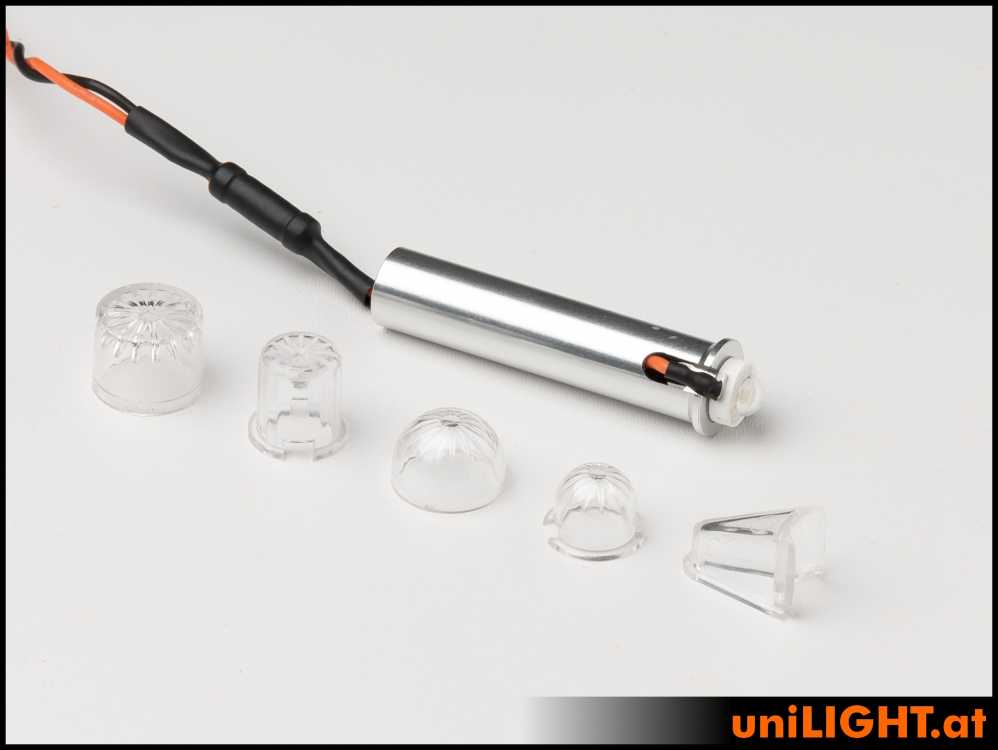

Slim LED high-performance light with 4W reference power and x2 chip technology for operation as a position/navigation light on a wide range of models. The penlight is delivered pre-assembled and ready for use on a CNC-manufactured aluminum heat sink, and 5 high-strength polycarbonate caps are included for free use:

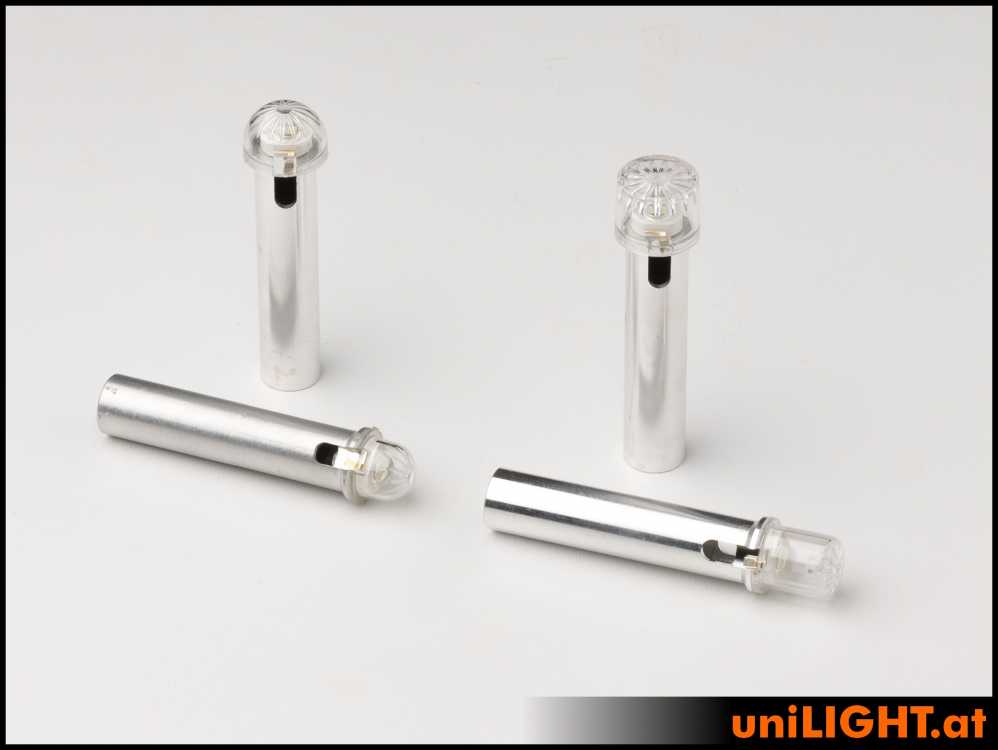

1x 10mm cylinder cap
1x 10mm round cap
1x 13mm cylinder callus
1x 13mm round cap
and 1x profile extension 10mm
The caps can be glued separately and painted individually in the model color. Any non-evaporating adhesive is suitable for bonding, such as epoxy, Uhu Allplast, Uhu Por, silicone, Canopy Glue,... Ideal as a navigation light on all models from 2m to 3.5m. The light is equipped with an integrated temperature fuse, which switches off at 65°C and reactivates automatically after it has cooled down.
Ready to use with 1m silicon cable and series resistor for 2S, resistor for 3S enclosed, profiled expansion cap
The reference power is a comparison value between our offered lights. It normally refers to an operating voltage of 12V/3S Lipo and is dependent on bulbs, operating mode and technology.
The luminaire is ready to use for operation with 2S LiPo (ca. 8V). With 3S (12V), the enclosed resistor has to be added. Please note that high-performance LEDs can get very hot, up to 70°C is quite normal. These lamps with heatsink cases are suitable for continuous operation if an air flow (during flight) is possible. If this is not the case, the duty cycle of 5-10 minutes should not be exceeded. Pay always attention to the operating temperature, we do not assume any warranty in case of overheating.
Note: The LED lights are extremely bright! Never look directly into a LED!
