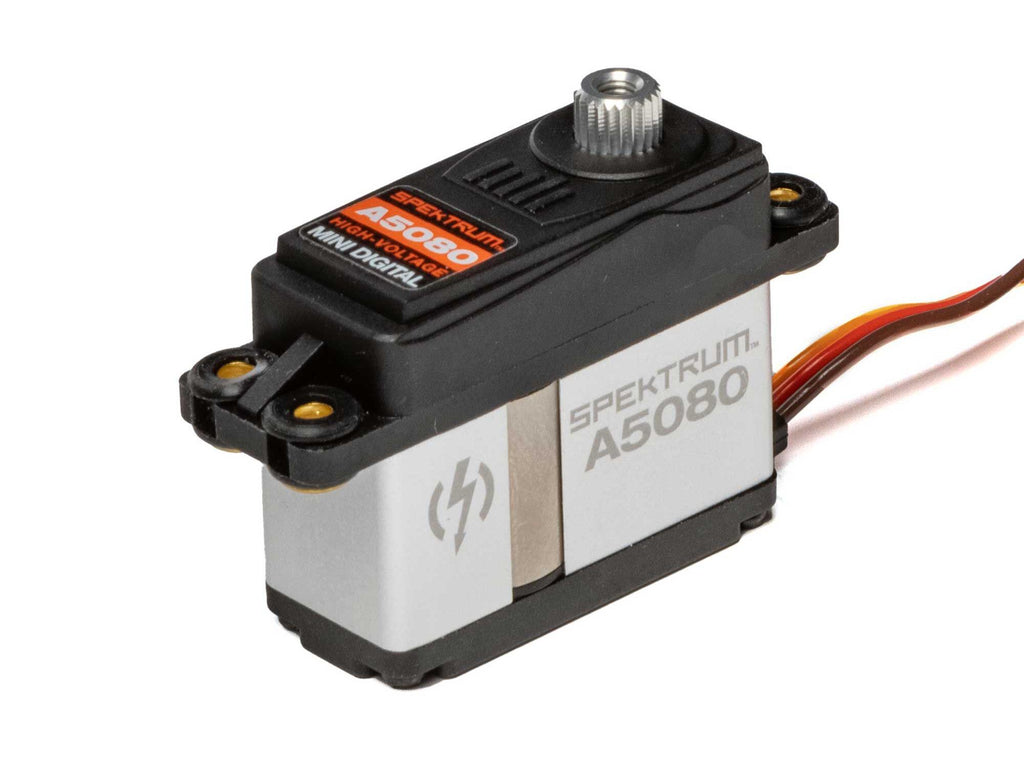

Spektrum A5080 MT/HS Mini Digital HV Servo SPMSA5080
The Spektrum™ A5080 digital mini metal gear servo offers incredible performance for smaller sport size aircraft (25-32 size) and specialty aircraft applications. High voltage capable, the A5080 can produce 9.4kg-cm (130 oz-in) of torque at 0.094 sec/60° speeds with 8.4V input. Its low-wear, metal gear drive train is powered by a coreless motor and bearing supported for smooth operation. The A5080 also features an aluminum center section case for efficient heat dissipation, plus low deadband and high resolution. Like all Spektrum servos, the A5080 delivers reliability, consistency and performance that are second to none.
Features:
- High Voltage (HV) capable (4.8 8.4v input range)
- Mini size is perfectly suited for parkflyer and sport size model aircraft
- Class leading performance (9.6kg cm and .094 sec/60° @8.4v)
- Aluminum servo case helps keep operating temperatures low
- Low wear and tightly meshed all metal gear train
- Bearing supported drive train helps maximize smooth operation
- Over Current and Temperature protection
- Operating Frequency: 200hz to 333hz
Specifications:
| Deadband |
<1µs |
| Input Voltage |
4.8V-8.4V |
| Product Height |
1.18" (30 mm) |
| Servo Type |
Digital |
| Product Width |
0.59" (15 mm) |
| Product Length |
1.4" (36 mm) |
| Material |
Aluminium |
| Programmable |
No |
| Servo Size Category |
Mini |
| Spline Count |
23 - Tooth |
| Product Weight |
1.2 oz (34g) |
| Motor Type |
Brushed |
| Servo Operating Voltage |
4.8 - 8.4V (HV) |
| Overload Protection |
No |
| Max Servo Torque |
100-199 oz-in |
| Maximum Servo Speed |
0.14 sec/60 deg @ 6.0V; 0.11 sec/60 deg @ 7.4V; 0.094 sec/60 deg @ 8.4V |
| Bearing |
Single BB |
| Bushing Or Bearing |
Bearing |
| Gear Type |
Metal |
| Maximum Servo Torque |
110 oz-in (7.92kg-cm) @ 6.0V; 118 oz-in (8.5kg-cm) @ 7.4V; 130 oz-in (9.4kg-cm) @ 8.4V |
