Description
Scorpion A-4225 PNP Combo (6s/90E+/20cc-25cc+/3108w) A_4225_PNP
In combination with our new A-Series motor line debut, we are also please to announce our new "PLUG-N-POWER" combo kits! We wanted to take the guess work out of Electric Power Systems, and provide our customers with a simple, convenient and reliable power system for their 90E /20cc-25cc sized airplanes. The A-4225 PNP Combo is the solution. This pairs our high power and high efficiency A-series motors with one of our suitably sized, pre-programmed, Tribunus ESCs! Providing you with a tested, proven, and convenient power system combo, which is sure to provide you immense power, at the best efficiency! This PNP combo is ready to easily bolt on, and give you the power you need, with the efficiency you want.
Performance Charts
Use Case Applications
Included in the Box:
1 x Scorpion A-4225 BLDC Motor
1 x A-42 Cross Mount (stock)
4 x M4 Cross Mount Mounting Bolts
12 x 4x16x1 Thrust Shims
1 x M8 Nut + prop washer
1 x Tribunus II 06-120A ESC SBEC
2 x BEC Cables
1 x Backup Guard II (power board)
1 x Scorpion Lock Strap (L)
3 x Scorpion Stickers
| Total Power System Weight (Motor+ESC+Cross Mount) | 528g (18.62 oz) |
|
|
|
| MOTOR SPECIFICATIONS : | |
| Motor Kv | 500 RPM / Volt |
| Weight (including cross mount + Prop mount accessories) | 398g ( 14.04oz) |

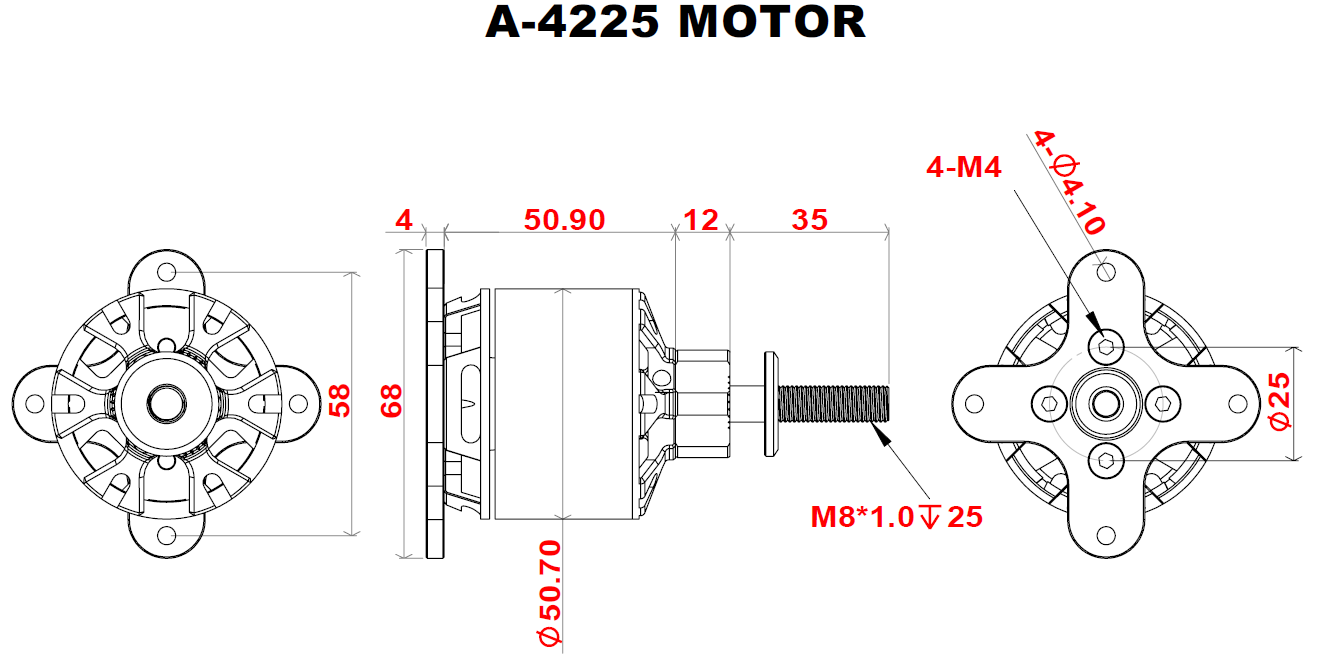

| Motor Body Dimensions | 50.7mm x 50.9mm (+12.0mm prop spacer) (1.99" x 2.00" (+ 0.47") ) |
| External Shaft Diameter | 8mm |
| Continuous Current | 100A |
| Continuous Power | 2220 Watts |
| Peak Current* | 140A |
| Peak Power* | 3108 Watts |
| Max Rated Lipo Cell | 6s |
| Stator Arms | 12 |
| Magnet Poles | 14 |
| ESC SPECIFICATIONS : | |
| Max Continuous Current | 120 Amps |
| Peak Current | 160Amps |
| Operating Voltage Range | 11-26.1 Volts |
| BEC Output voltage***: | OFF/5.1/6.1/7.1/8.1 |
| Max Continuous BEC Output | 10 Amps @ 8.1 V |
| Peak BEC Output | 30 Amps/1s @ 8.1 V |
| Size | 76.7 x 36.5 x 25.4 mm (3.02 x 1.44 x 1 in) |
| Weight (Without Connectors) | 120g (4.23 oz) |
| Drive frequency | 8kHz - 32kHz |
| Cable gauge | 12 AWG |
| Back Up Guard II (Power Board) SPECIFICATIONS : | |
| Weight | 10 grams (without battery) |
| Dimension | 44mm x 25.2mm x 10.5mm |
| Li-Po input | 2S/7.4V (500~1000mah recommended) |
| Output | DC 5V/ 10 Amp Continues Current. |
| Charging Plug | JST-XHR |
| *Our ratings are classified as TRUTHFUL. Continuous Current / Power correlates to actual sustainable power levels. Peak Power is for intermittent full throttle usage ranging from 5 - 60 seconds depending on use case and cooling* | |
