Savox SV-1273TG+ HV Std Size Ultra Fast 16kg/0.065s@7.4v

Savox SV-1273TG+ HV Std Size Ultra Fast 16kg/0.065s@7.4v SAV-SV1273TG+

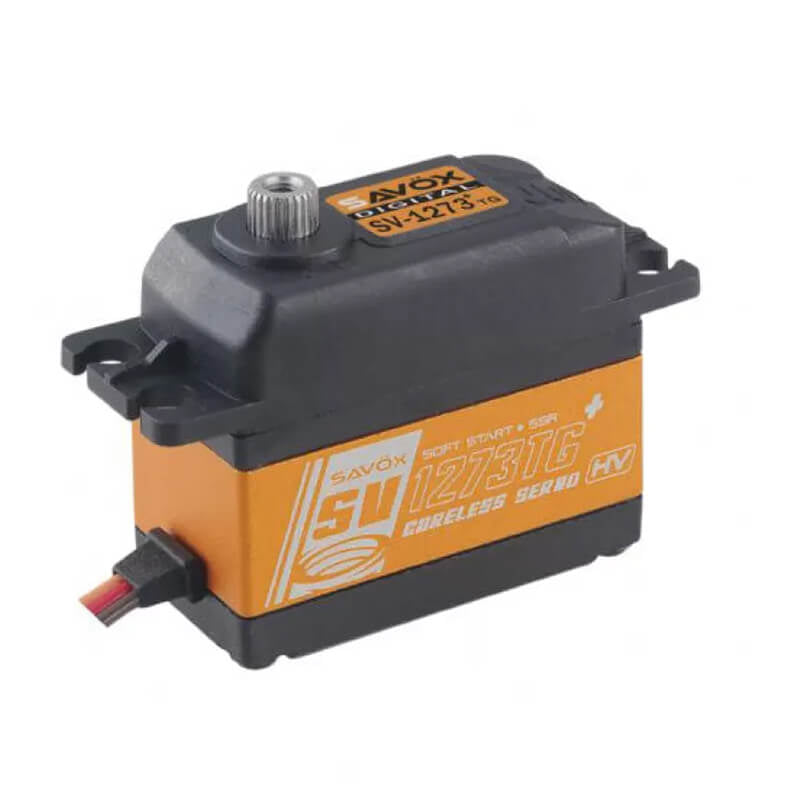

This is the Savox SV1273TG+ Ultra Speed High Voltage Titanium Gear Digital Servo. Our servos are totally green - from materials to production, these servos are environmentally friendly. Ideal for large-scale airplane, jet, and 1/5th scale surface.

Features:

• Extremely fast for its size at .065 sec/60.
• Super strong and precision made unique steel gears provide high level of durability and survives heavy use.
• Coreless motor brings output performance to the top level - smoother, faster, and more efficient.
• Special design for high voltage native 2s LiPo operation.
• Water-proof with 4 silicon seals.

Specifications:

• Dimensions (mm): 40.3x20.2x37.2
• Weight (g): 63.0
• Speed (@6.0V sec/60): .08
• Torque (@6.0V oz-in): 194.4
• Speed (@7.4V sec/60): .065
• Torque (@7.4V oz-in): 222.2
• Gear: Titanium & Aluminum
• Bearing: 2BB
• Case: Aluminum
• 25 Tooth Spline

Technical Details:

• Operating Temperature: 14° - 122°F (-10° - 50°C)

• Running Current (no load): 120mA @6.0V, 150mA @7.4V

• Stall Current (at locked): 4000mA @6.0V, 5000mA @7.4V

• Idle Current: 5mA @4.8V, 5mA @6.0V

• Wire Length: 200 ± 5mm

• Output Gear Spline: 25 Tooth

• Bearings: 2BB

• Operating Travel: 100° (1000 → 2000 µ second)

• Neutral Position: 1500 µ second

• Pulse Width Range: 800 → 2200 µ second

• Maximum Travel: Appx 130° (900 → 2100 µ second)

• Refresh Rate: 333 Hz

• Motor Type: Coreless
