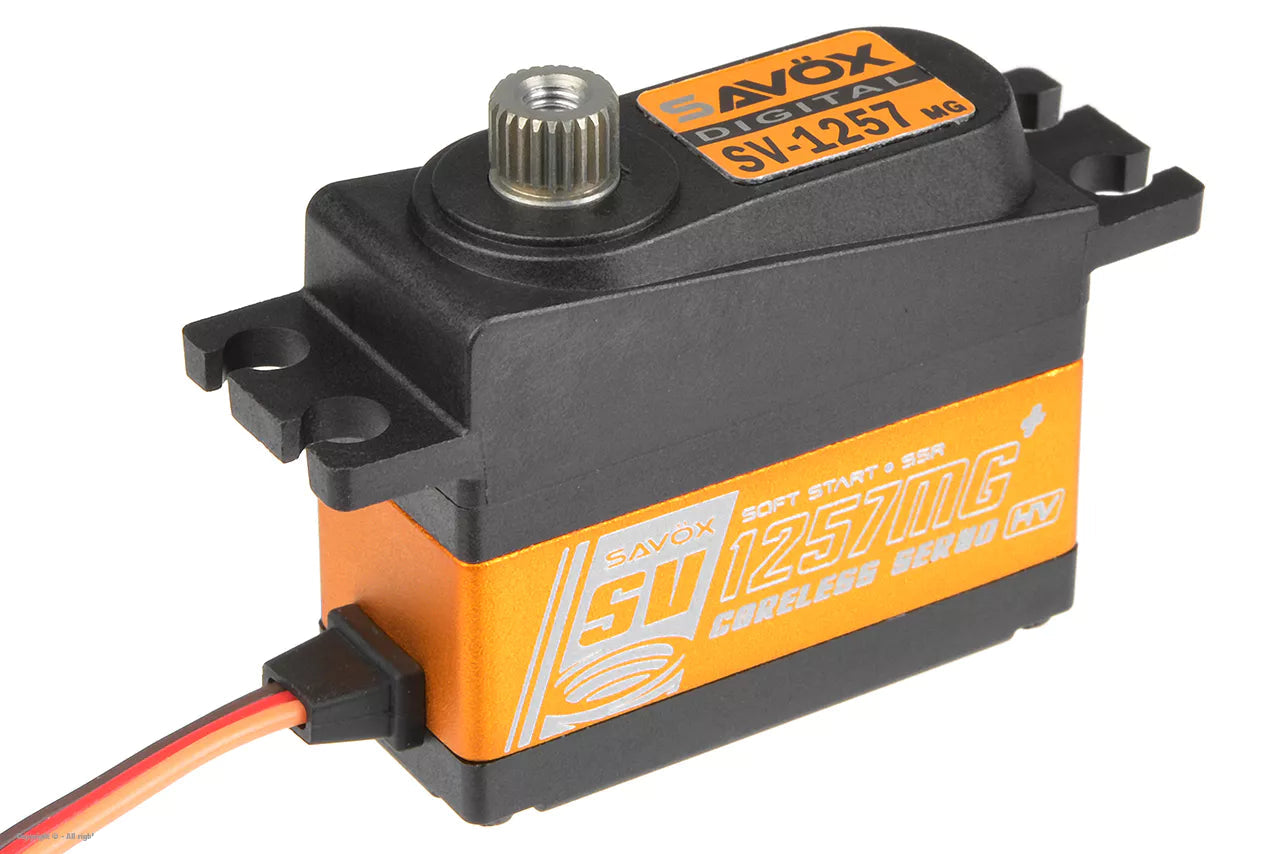

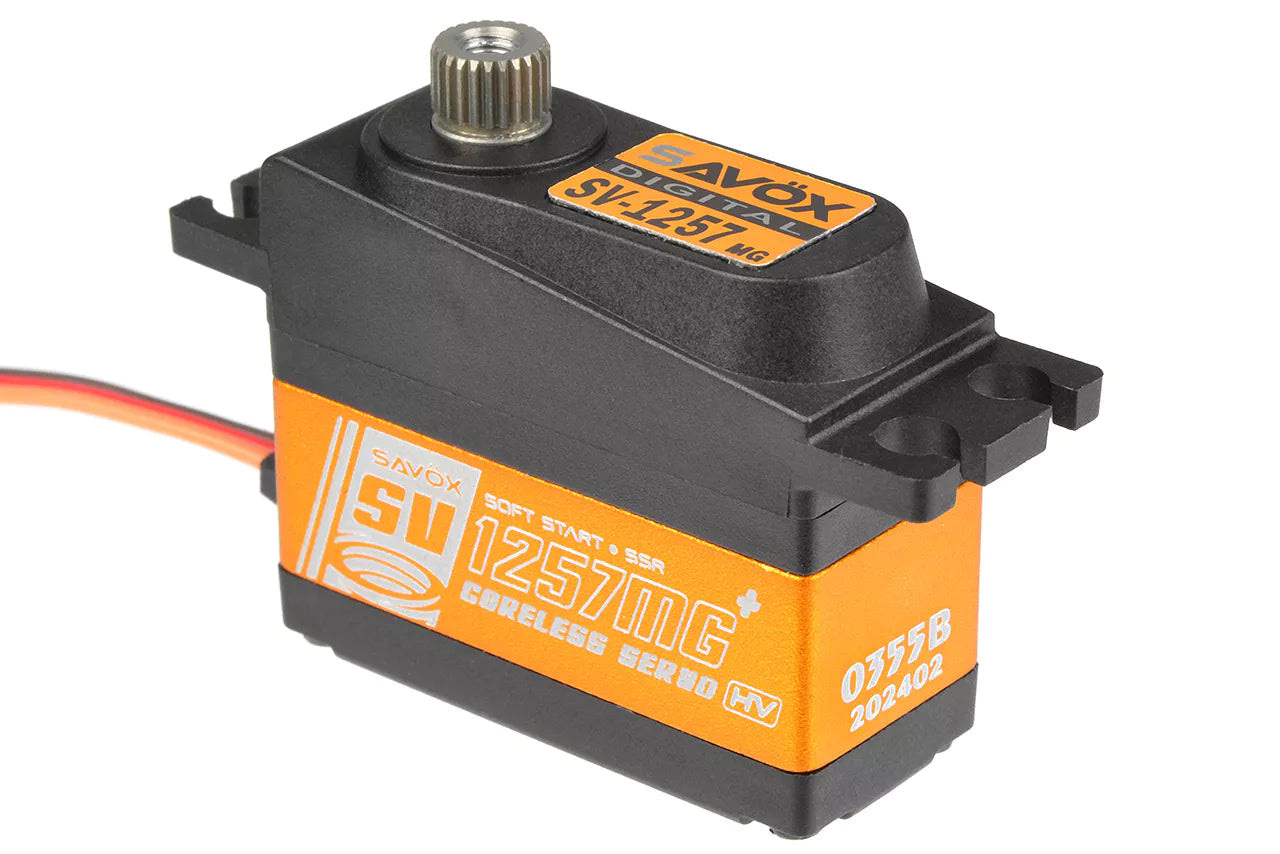

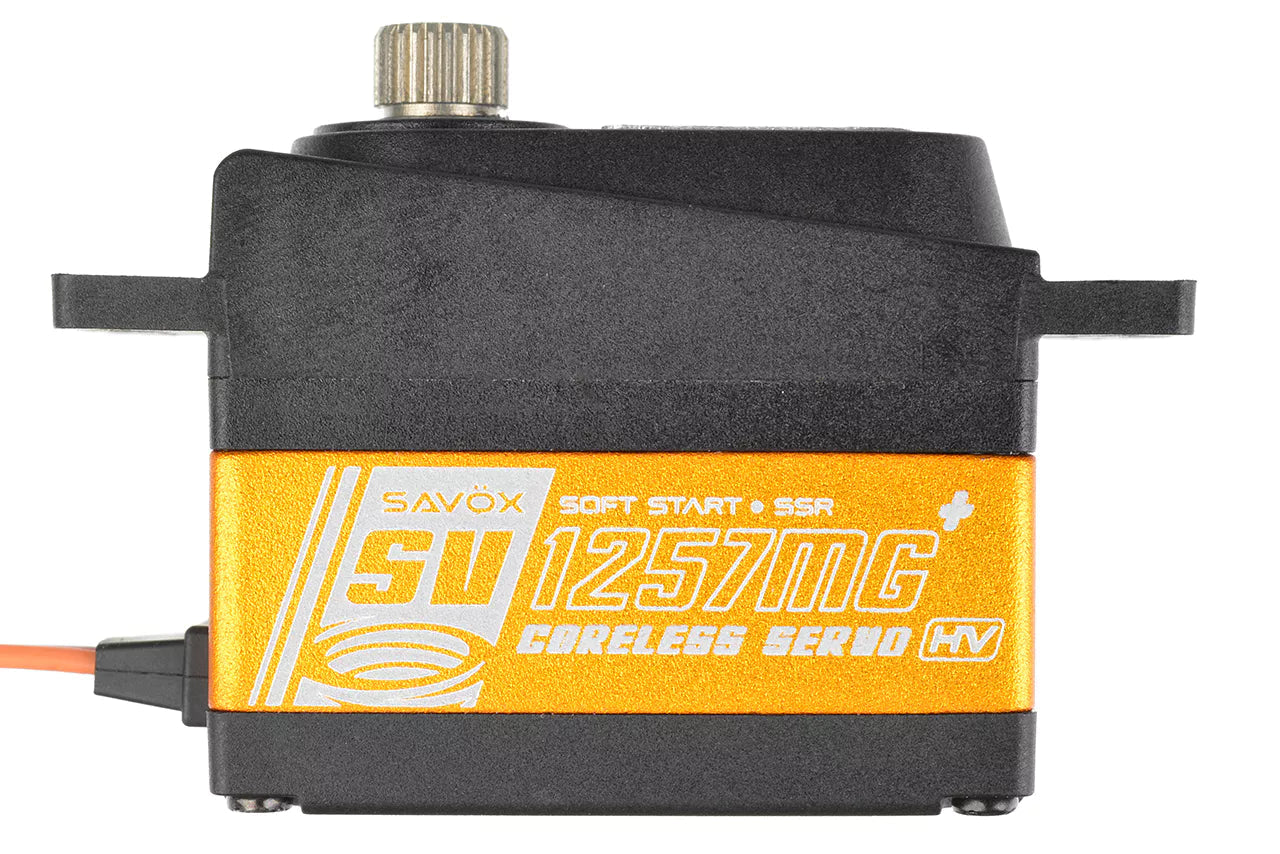

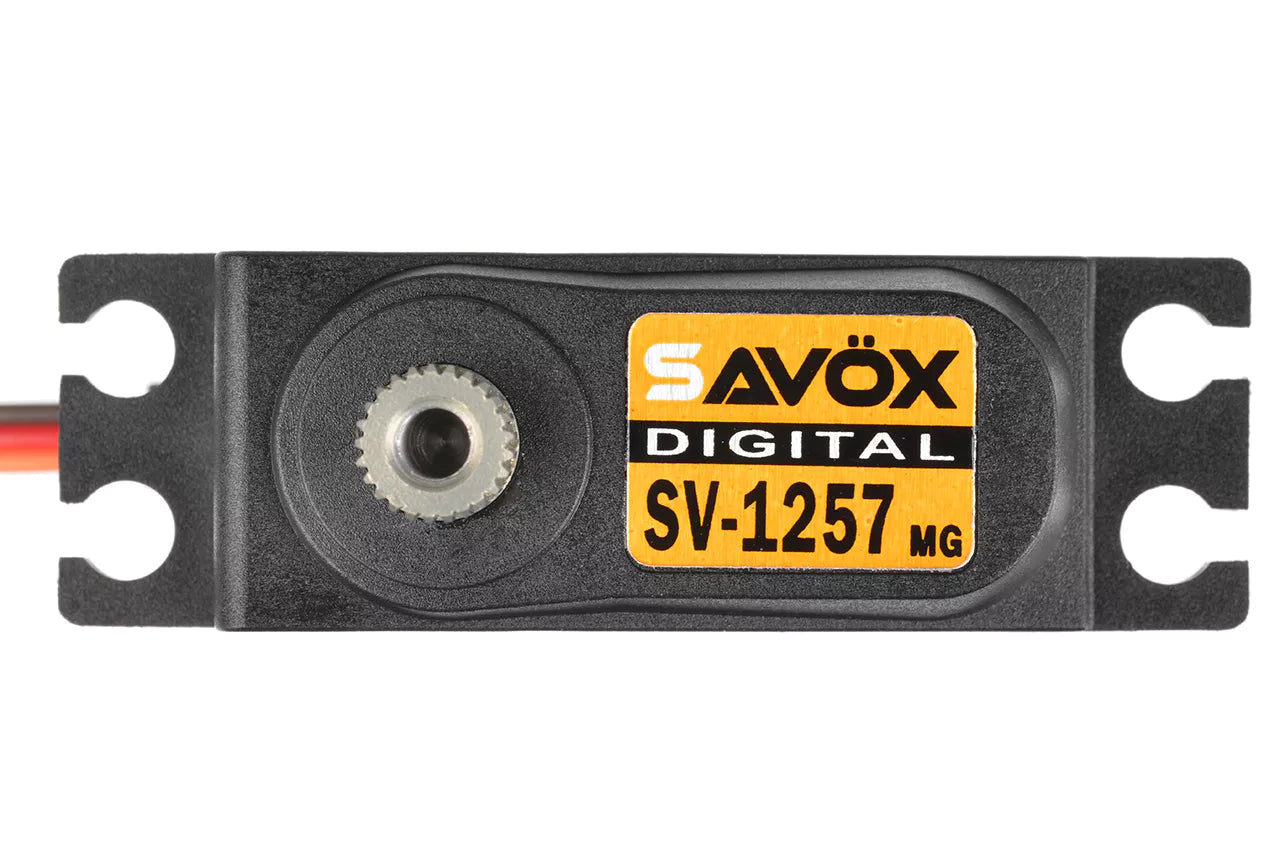

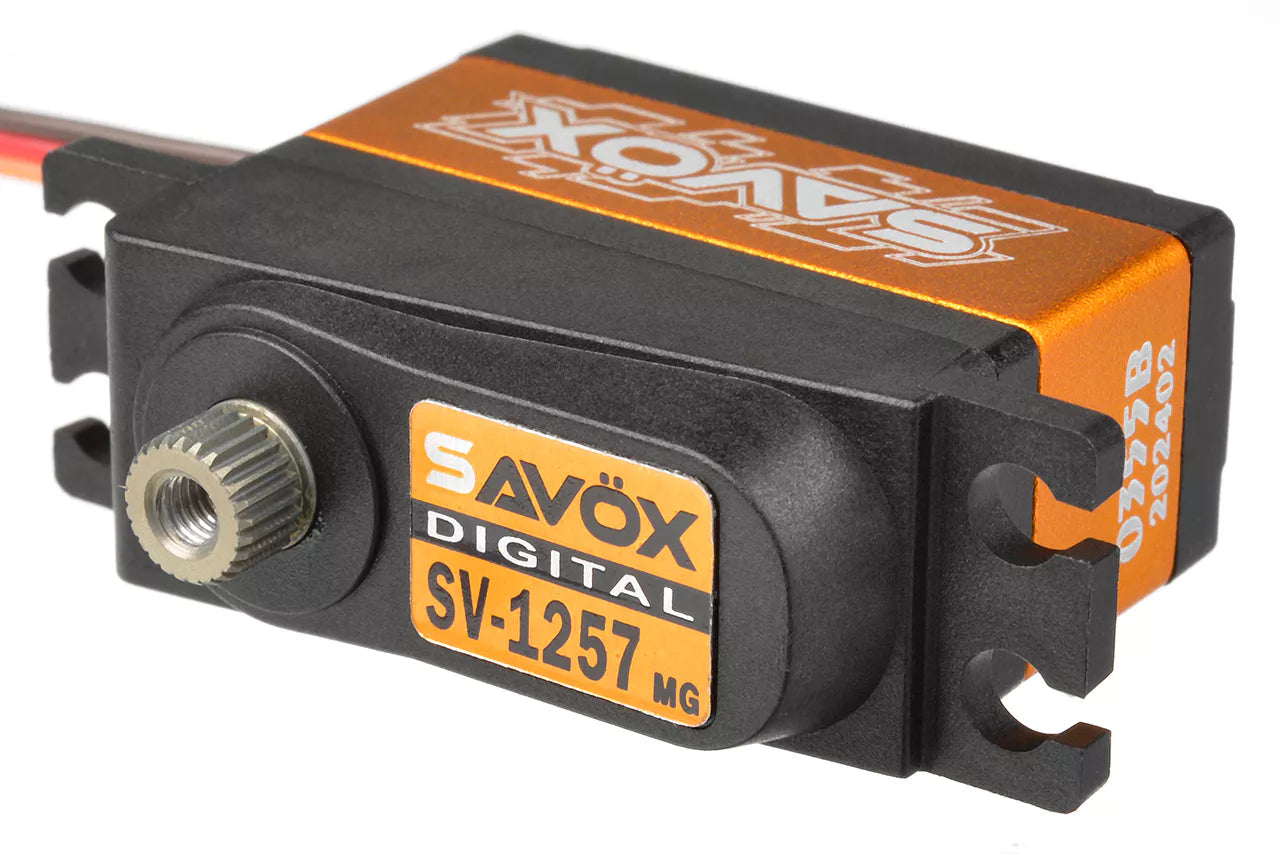

Savox HV Digi Mini Size Rudder Servo 4KG/0.055S@7.4V - Plus SAV-SV1257MG+
The SV1257MG+ is the perfect tail servo for all helicopters from the 500 class and leaves nothing to be desired. Specs of 4kg torque and 0.055° speed speak for themselves! It can be operated directly on a 2s LiPo and is ideal for all models where strength and speed is needed.
Features:
• Leading edge digital servo technology
• High efficiency Coreless motor
• Accurate and fast response
• Super high resolution
• Aluminium center case for improved motor cooling and total strength
• Ball beared
• Precision Metal gears
Technical specifications:
• Servo Technology: Digital High Voltage
• Input Voltage (V): 6.0V - 8.4V
• Servo Type / Size: Midi
• Motor Type: Coreless Motor
• Gear Material: Metal Gears
• Ball Beared: Ball Beared
• Servo Case: Aluminium - Composite
• Speed 60°/Sec @ 6.0V: 0.07 Sec/60°
• Torque kg/cm @ 6.0V: 2.5 Kg/cm
• Speed 60°/Sec @ 7.4V: 0.055 Sec/60°
• Torque kg/cm @ 7.4V: 4.0 Kg/cm
• Length (mm): 35.0 mm
• Width (mm): 15.0 mm
• Height (mm): 29.2 mm
• Weight (g): 30 g

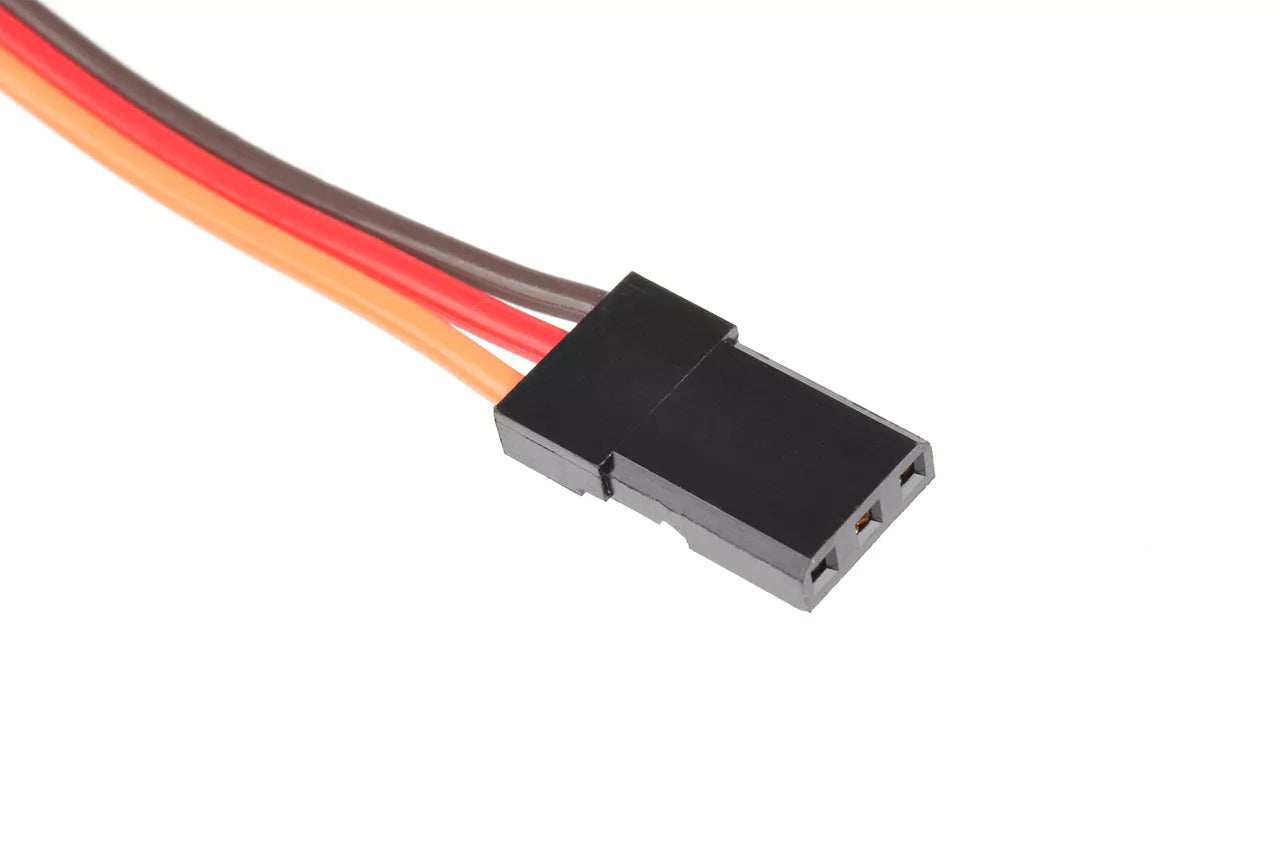

• Connector type: JR
• Spline size: 25T Spline
New Savox servos : now feature the Soft Start Mode and Sanwa SSR compatibility as standard.
