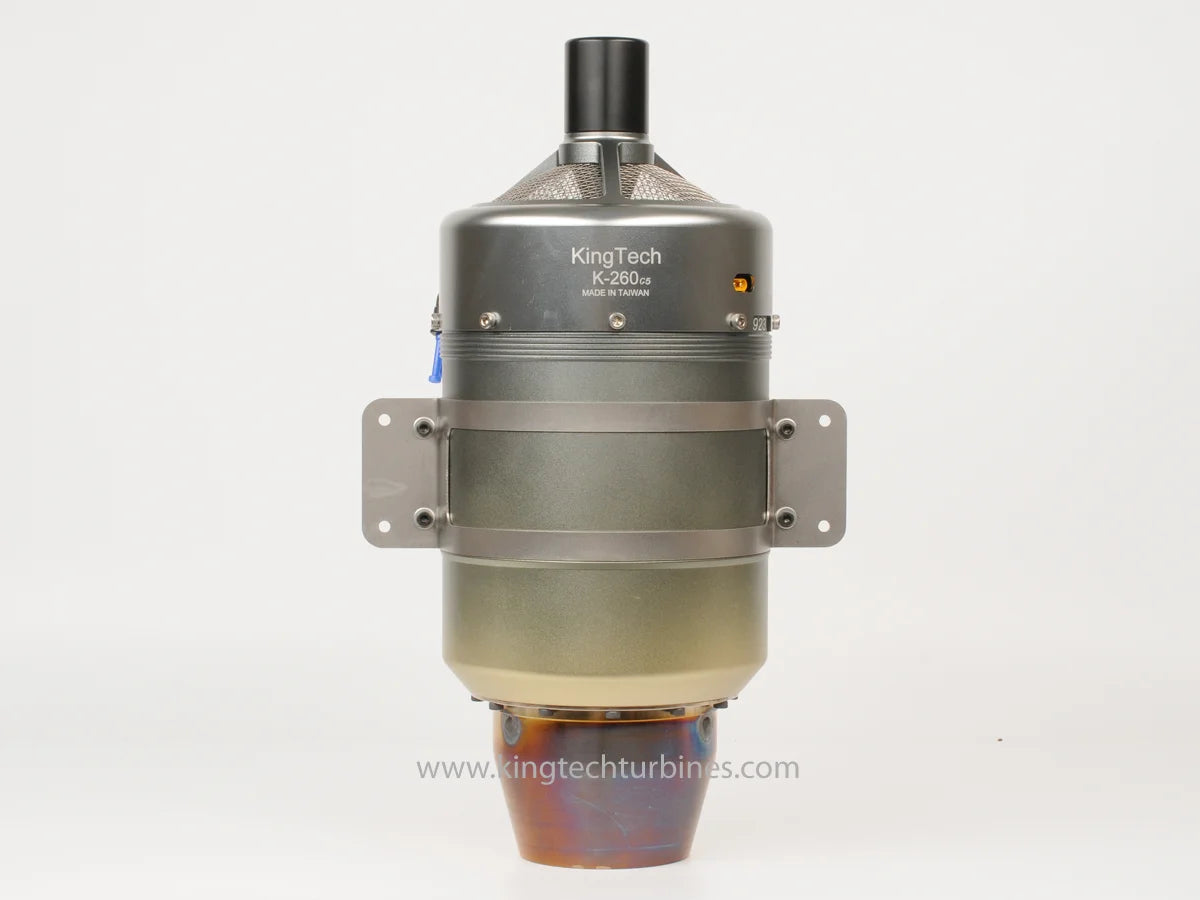

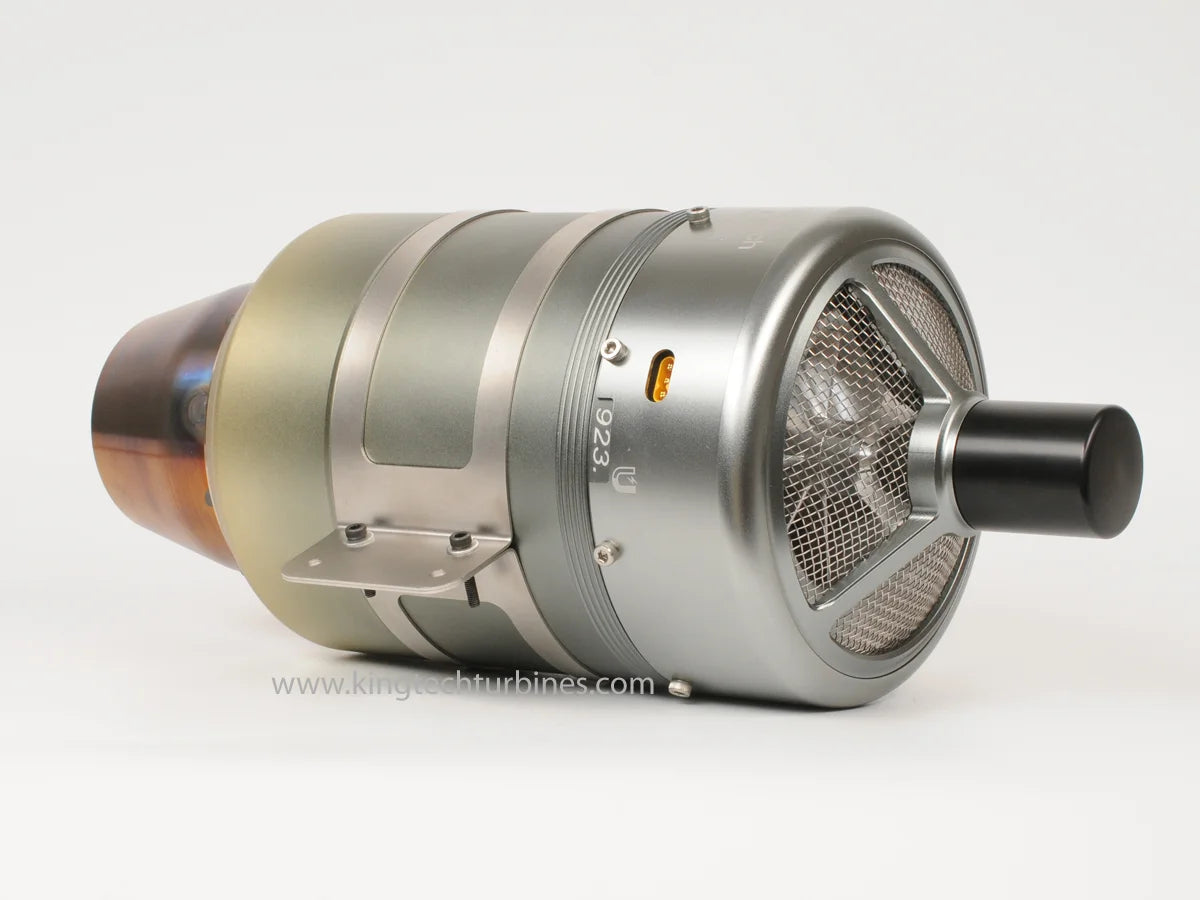

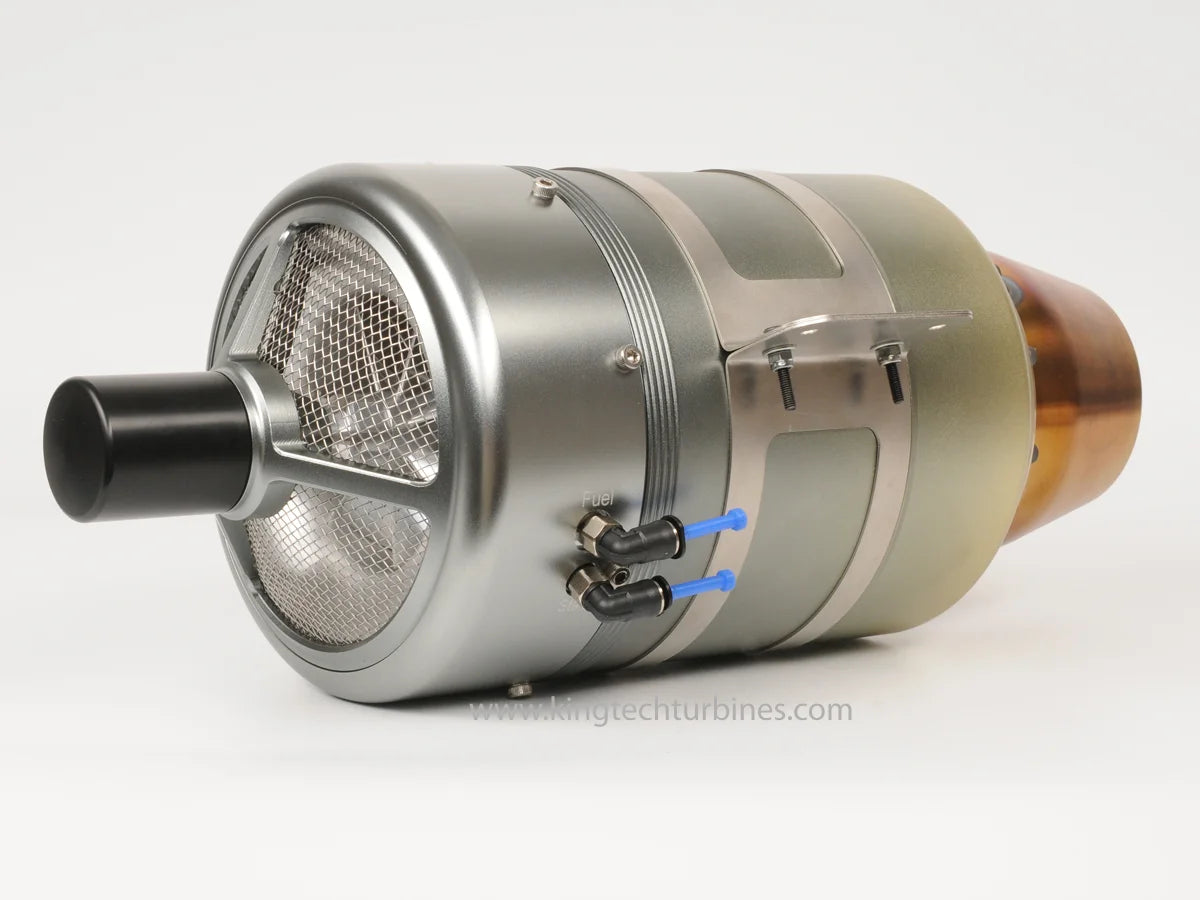

The New Generation 5 K260 G5 Turbine Engine
The G5 versions what's new:
Very fast starting behaviour between 9-15 seconds depending on the turbine.
Fast restart in the event of a flameout.
New electronics, new pump.
G5 is operated with Lipo 3S.
K-260 G5 SPECIFICATIONS
Diameter: 120mm / 4.72”
Length: 299mm / 11.77”
Weight: 2200g / 4.85lb
Maximum RPM: 112,000RPM

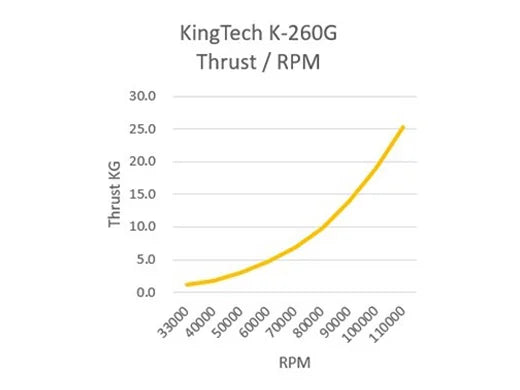

Max Thrust: 26kg ±0.5 ( 57lb )
EGT: 750°C max
Pump type: Digital sbus brushless pump KP1000DP
Battery:11.1v Lipo ( At least 2200mah 35C )
Start time: 10~15 seconds

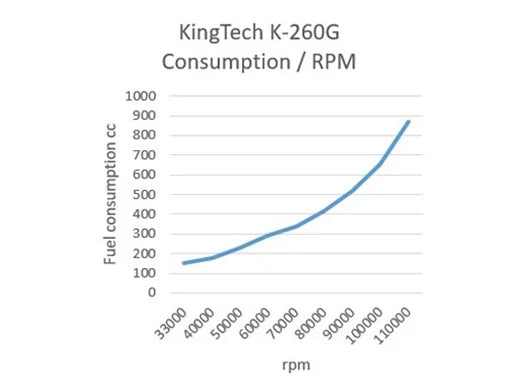

Fuel consumption: 760g / min ( 26.80oz )
Fuel: Diesel, Jet A1, Kerosene
Lubrication: 5%
Maintenance cycle: 25 hr

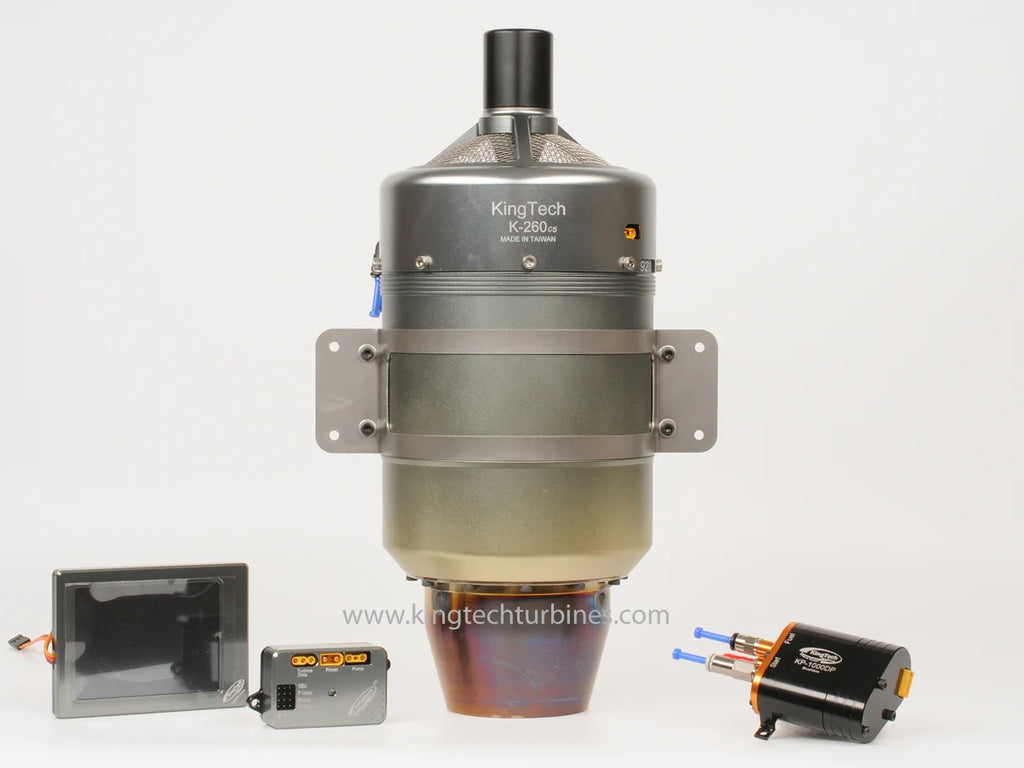

G5 MODEL COMPONENTS LIST
• Engine
• Data Relay Module (DRM)
• Ground Support Unit (GSU)
• Digital Sbus brushless pump KP1200DP
• Wire Harness and Tubing Set
• Fuel Pump, Filter and Shout-off Valve
• Fuel Inlet Attachments
• Instruction Manual
