JETI Central Box 210 + 2 RSat2
Product description and features

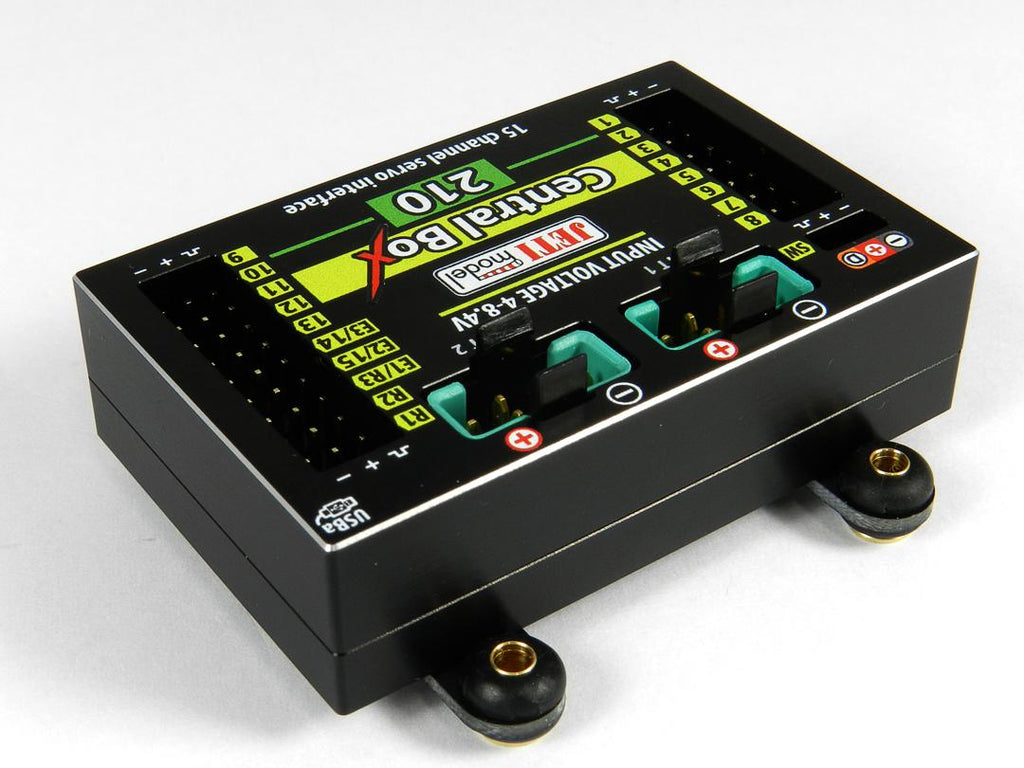

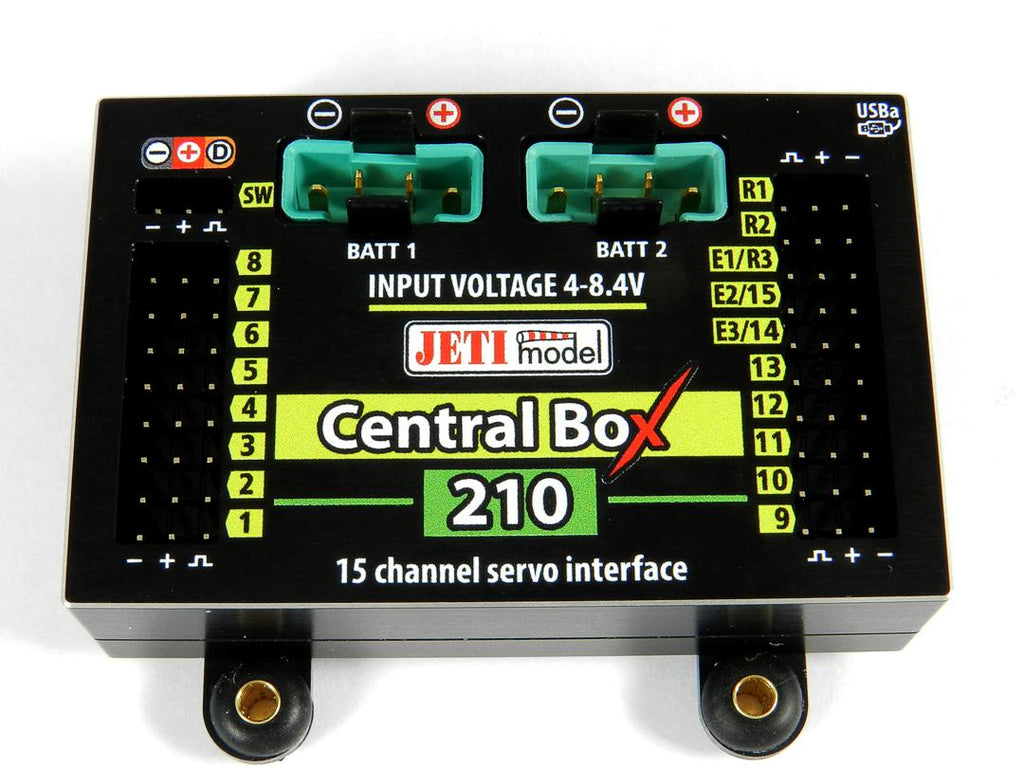

The Central Box 210 is a switchboard designed for the complete management of servos in a model. The Central Box can manage two batteries and fully supports the JETI EX telemetry system. Up to three receivers with serial output can be connected to the Central Box. With JETI DC/DS transmitter, the full potential of the Central Box can be used, such as an easy way to configure the Central Box, EX telemetry and DITEX servos telemetry. Central Box 210 supports up to 15 servo outputs, two battery inputs and incorporates possibility to connect an RC or magnetic switch.
Attributes
Support of DITEX telemetry servos
Possibility to connect up to 3 receivers with serial interface (EX-Bus, PPM)
Built-in Expander function for up to 3 sensors

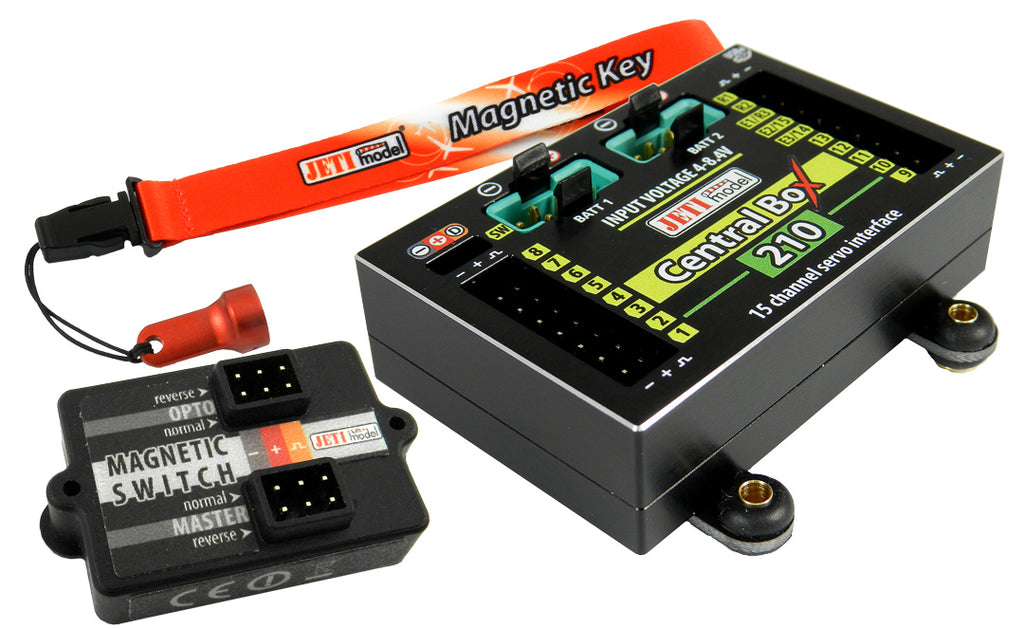

Input for magnetic switch or RC switch
Two MPX battery input connectors
100Hz mode of servo outputs (10ms period)
Supports EX telemetry (voltage, current, capacity, and temperature measurement, overload indication, ...)
Easy settings changes via DC/DS transmitter
Firmware updates by user
Suitable for use with high voltage (HV) servos
Compact size for easy installation
Aluminium Case for Extra Cooling and Protection
