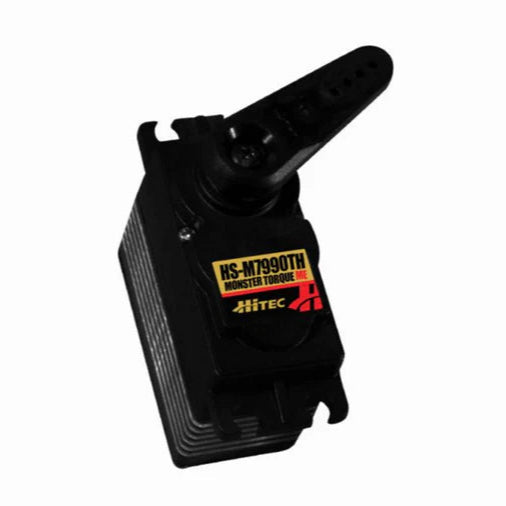

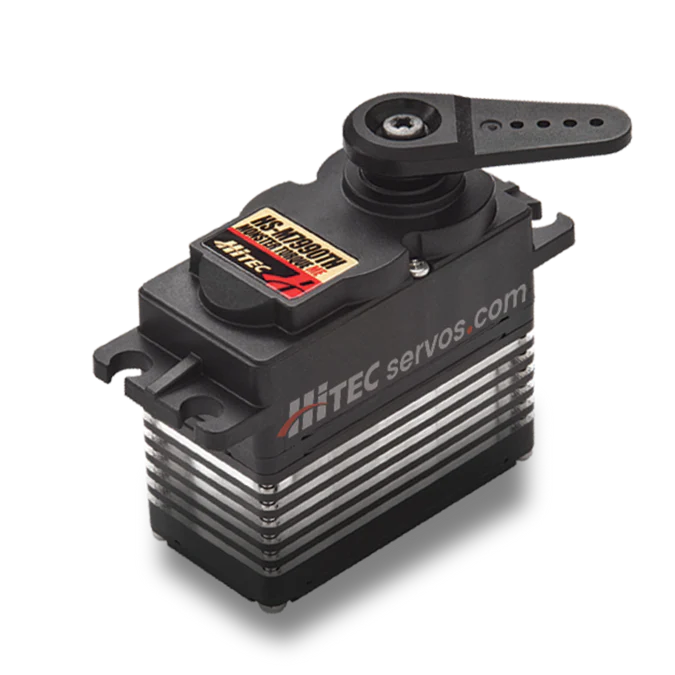

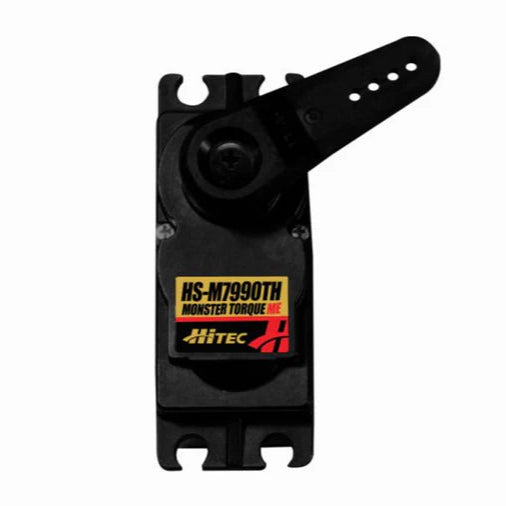

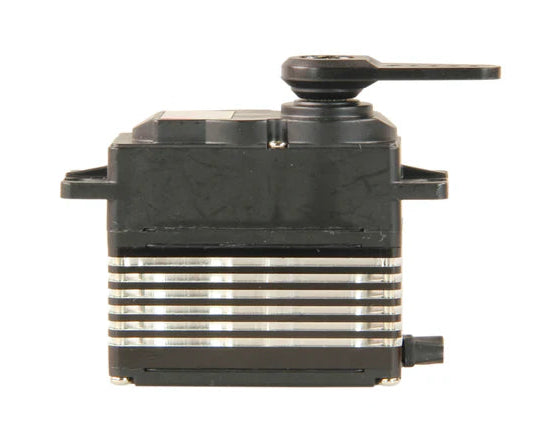

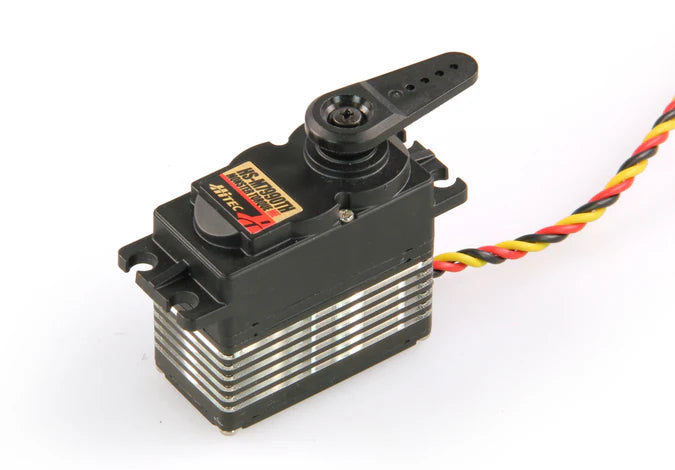

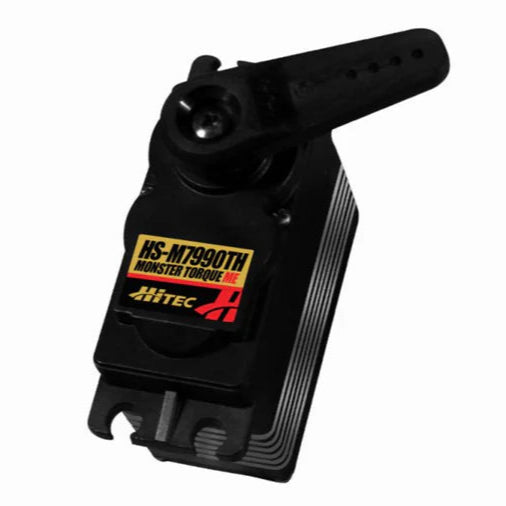

Hitec HSM7990TH Premium High Voltage (HV) Monster Torque Magnet Encoder Servo
Hitec's most technologically advanced servo, the "Monster Torque" HS-M7990TH features an ultra precise high resolution magnetic encoder instead of a conventional mechanical potentiometer. Designed to operate on a two cell LiPo Pack the HS-M7990TH features our newest high resolution "G2.5" 12 bit generation programmable digital circuit and our indestructible Titanium gears. Other features of the HS-M7990TH include a 7.4V optimized coreless motor, integrated heat sink case, and a top case with two hardened steel gear pins supported by brass axial bushings.
Features
- High Resolution Magnetic Digital Ecoder
- G2.5 12 bit Digital Programmable Circuit
- Titanium Gear Train (MK first gear)
- Ultra Performance Coreless Motor
- Integrated Heatsink Case
- (8) O-Rings for Water/Dust/Fuel protection
- Dual Ball Bearing Supported Output Shaft
- 10% larger than a HS-7955TG
Programming Functions
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Overload Protection
- Resolution
- Data Save / Load
- Program Reset
Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.21 ~ 0.17 |
| Maximum Torque Range oz. / in. |
500 ~ 611 |
| Maximum Torque Range kg. / cm. |
36.0 ~ 44.0 |
| Current Draw at Idle |
23 mA |
| No Load Operating Current Draw |
480 mA |
| Stall Current Draw |
9,800 mA |
| Dead Band Width |
1 µs |
| Physical Specifications |

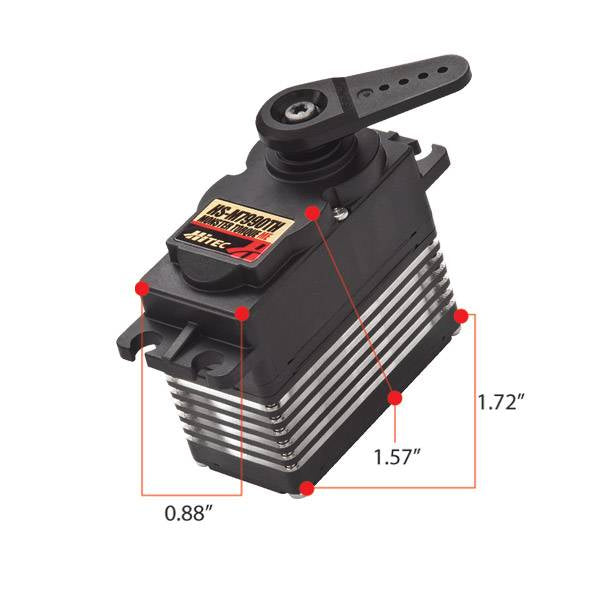

| Dimensions (Inches) |
1.72 x 0.88 x 1.57 |
| Dimensions (Metric) |
43.8 x 22.4 x 40.0 |
| Weight (Ounces) |
2.78 |
| Weight (Gram) |
79.0 |
| Circuit Type |
G2.5 Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Metal |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic / Aluminum |
| Dust / Water Resistance |
Splash Proof |
| Connector Gauge (AWG) / Strand Count |
20 / 80 |
