Hitec HS-7985MG Standard Digital Coreless Servo 62g 12.4kg/0.13s 4.8V - 6.0V 2218550
The new HS-7985MG High Torque Digital Servo has the added benefit of our new G2 second generation programmable digital circuit. This circuit has twice the resolution of our original circuit while adding programmable overload protection. The technology doesn’t stop at the circuit board, with a high performance coreless motor, dual ball bearing supported output shaft, bushing supported gear shafts and our Heavy Duty Metal gear train the HS-7985MG was designed to withstand the stress of larger high performance aircraft and on/off road vehicles.
Features:
- G2 Digital Circuit
- Coreless Motor
- Dual Ball Bearing Supported Output Shaft
- Metal Gear Train (MK first gear)
Programmable Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Programmable Features Include:
- - Dead Band Width
- - Direction of Rotation
- - Speed of Rotation (slower)
- - End Points
- - Neutral Points
- - Fail Safe On/Off
- - Fail Safe Point
- - Resolution* (default is high resolution)
- - Overload Protection* (default is off)
*These features are only programmable with the HFP-20 field programmer.
Specifications:
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.16 ~ 0.13 |
| Maximum Torque Range oz. / in. |
144 ~ 172 |
| Maximum Torque Range kg. / cm. |
10.4 ~ 12.4 |
| Current Draw at Idle |
9 mA |
| No Load Operating Current Draw |
240 mA |
| Stall Current Draw |
3,000 mA |
| Dead Band Width |
1 µs |
| Physical Specifications |

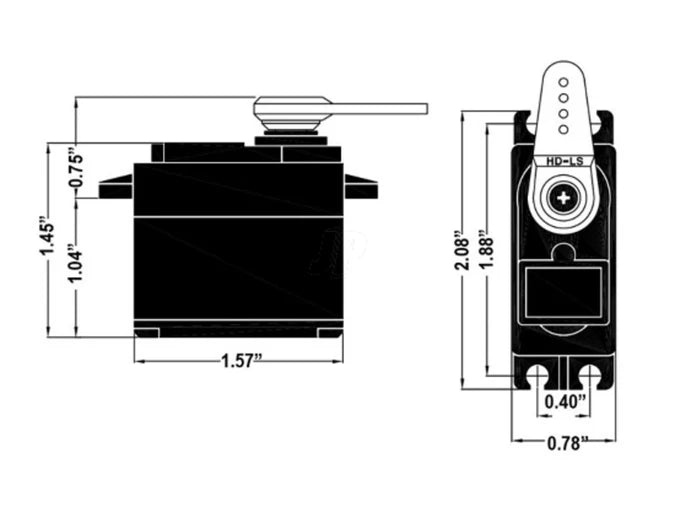

| Dimensions (Inches) |
1.57 x 0.78 x 1.45 |
| Dimensions (Metric) |
40.0 x 20.0 x 37.0 |
| Weight (Ounces) |
2.18 |
| Weight (Gram) |
62.0 |
| Circuit Type |
G2 Programable Digital |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Metal |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
Splash Proof |
| Connector Gauge (AWG) / Strand Count |
22 / 60 |
