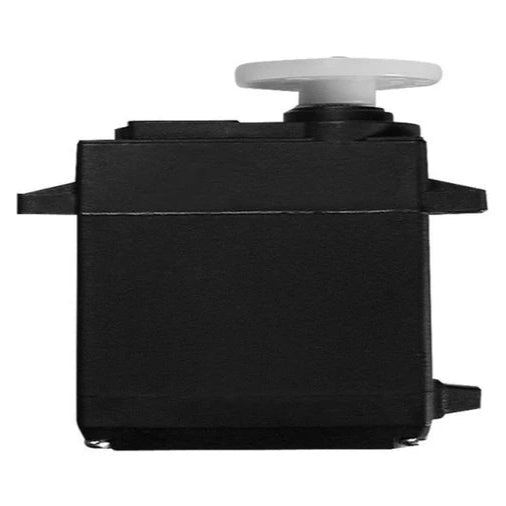

Hitec HS-5625MG Standard Digital Cored Servo 60g 9.4kg/0.14s 4.8V - 6.0V 2217610
For those applications that require a fast standard size servo, the HS-5625MG is an excellent choice. With a custom designed programmable digital circuit and our unique M/P and metal gear train technology, the HS-5645MG will deliver powerful high speed results!
Note: Metal Horn (R-ML) Included
Features:
- Most Popular High Speed Standard Digital Servo
- Strong Three-Pole Ferrite Motor
- Metal Gear Train with MP Gear Technology
- Dual Ball Bearing-Supported Output Shaft
- Standard Programmable Digital Circuit Provides Fine Resolution and Centring
- Spline: Standard 24 Tooth
Programming Functions:
- End Point Adjustments
- Direction
- Fail Safe
- Dead Band
- Speed (Slower)
- Data Save / Load
- Program Reset
Specifications
| Performance Specifications |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. |
110 ~ 131 |
| Maximum Torque Range kg. / cm. |
7.9 ~ 9.4 |
| Current Draw at Idle |
3 mA |
| No Load Operating Current Draw |
500 mA |
| Stall Current Draw |
2,400 mA |
| Dead Band Width |
4 µs |
| Physical Specifications |
| Dimensions (Inches) |
1.59 x 0.77 x 1.48 |
| Dimensions (Metric) |
40.6 x 19.8 x 37.8 |
| Weight (Ounces) |
2.11 |
| Weight (Gram) |
60.0 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Metal |
| Bearing Type |
Dual Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
22 / 60 |
