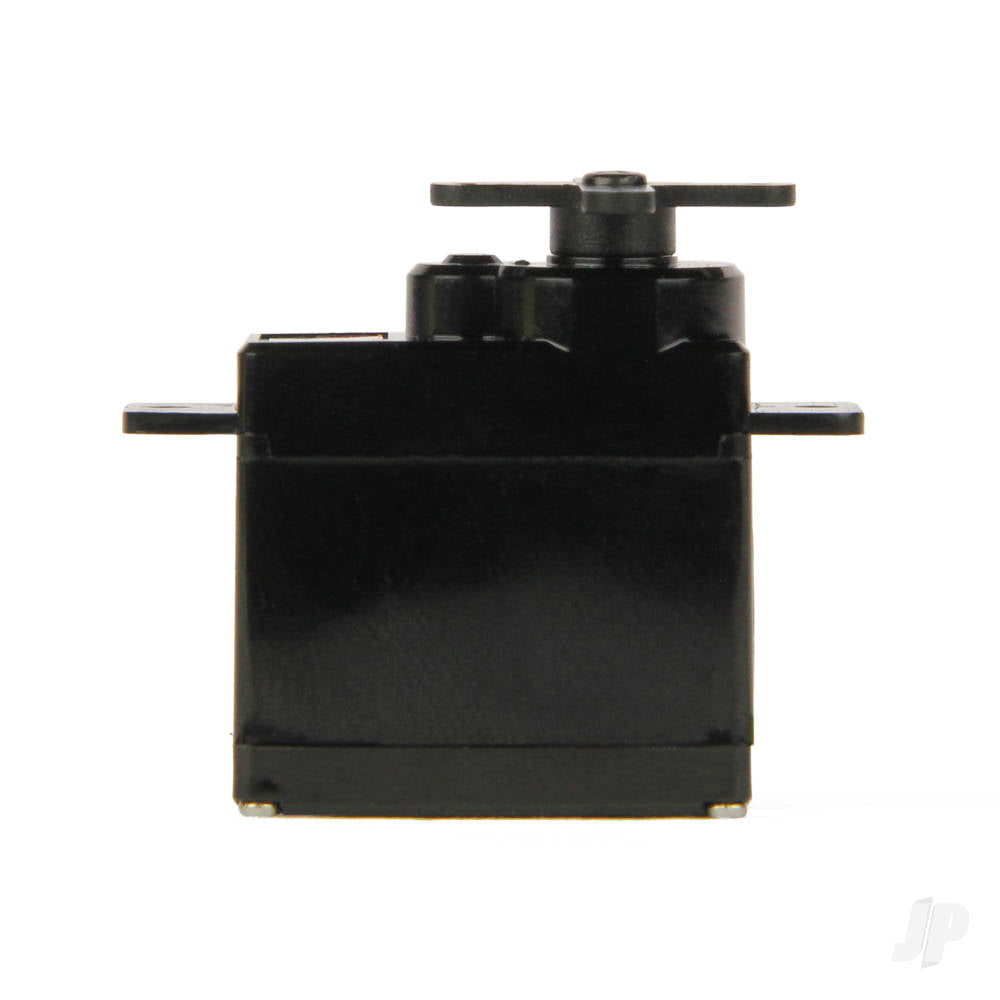

Hitec HS-55 Eco Feather Servo 8.0g 1.3kg/0.14s Hybrid 4.8V - 6.0V 2212060
The HS-55 set the standard for affordable performance, offering precision components that have been engineered to provide long lasting trouble free service! Featured in a hundred model aircraft reviews worldwide, the HS-55 is your best choice when it comes to controlling ”smaller” Electric’s and Park Flyers.
Features:
- Affordable Performance
- Precision Components
- Strong, Long-Lasting Nylon Gears
- Market's Most Reliable Micro Servo
- Most Popular Servo
- Spline: 15 Tooth
Please note: Colour may vary
Specifications:
| Performance Specifications: |
| Operating Voltage Range (Volts DC) |
4.8V ~ 6.0V |
| Speed (Second @ 60°) |
0.17 ~ 0.14 |
| Maximum Torque Range oz. / in. |
15 ~ 18 |
| Maximum Torque Range kg. / cm. |
1.1 ~ 1.3 |
| Current Draw at Idle |
5.5 mA |
| No Load Operating Current Draw |
150 mA |
| Stall Current Draw |
450 mA |
| Dead Band Width |
8 µs |
| Physical Specifications: |

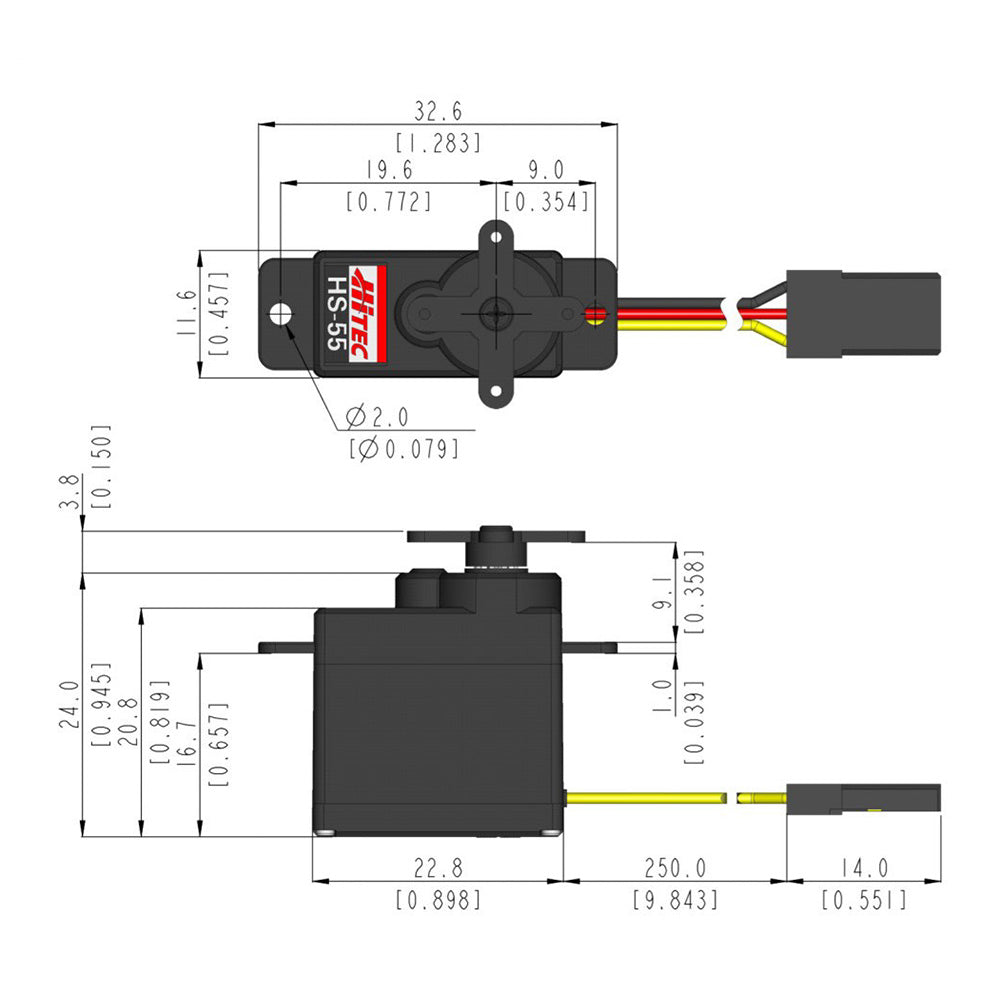

| Dimensions (Inches) |
0.89 x 0.45 x 0.94 |
| Dimensions (Metric) |
22.8 x 11.6 x 24.0 |
| Weight (Ounces) |
0.28 |
| Weight (Gram) |
8.0 |
| Circuit Type |
HT7003 Analog SMT |
| Motor Type |
Coreless Metal Brush |
| Gear Material |
Nylon |
| Bearing Type |
None |
| Output Shaft (type / Ømm) |
Feather 15 / 8 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
28 / 20 |
HS-55
