Hitec HS-5495BH Standard Digital Cored Servo 45g 7.5kg/0.15s 6.0V - 7.4V 2217590
At Hitec, we believe in developing the highest quality servos in the market at an affordable price. That philosophy stands true with the economical HS-5495BH digital sport servo. Based on the popular HS-5485HB, the HS-5495BH's heavy-duty Karbonite gears are the perfect match for sport airplanes up to 25% scale weighing under 12 pounds. With 7.4 volt, 2-cell LiPo battery capability, The HS-5495BH delivers the power you need at a price you can feel good about! Trust your hobby to Hitec.
The upgraded version of this servo is now available : D485HW
Features:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
Programmable Features Include:
- Dead Band Width
- Direction of Rotation
- Speed of Rotation (slower)
- End Points
- Neutral Points
- Fail Safe On/Off
- Fail Safe Point
Specifications:
| Performance Specifications: |
| Operating Voltage Range (Volts DC) |
6.0V ~ 7.4V |
| Speed (Second @ 60°) |
0.17 ~ 0.157 |
| Maximum Torque Range oz. / in. |
89 ~ 104 |
| Maximum Torque Range kg. / cm. |
6.4 ~ 7.5 |
| Current Draw at Idle |
12 mA |
| No Load Operating Current Draw |
190 mA |
| Stall Current Draw |
1,400 mA |
| Dead Band Width |
4 µs |

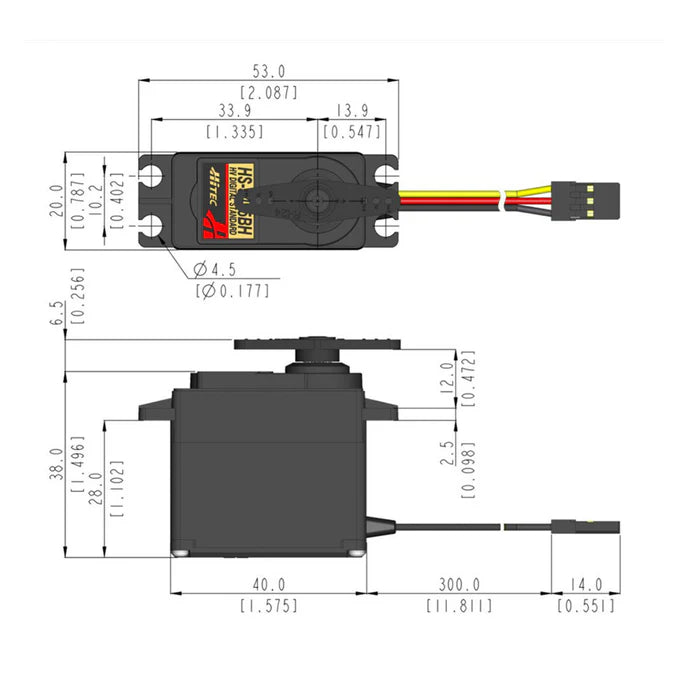

| Physical Specifications: |
| Dimensions (Inches) |
1.57 x 0.78 x 1.49 |
| Dimensions (Metric) |
39.8 x 19.8 x 38.0 |
| Weight (Ounces) |
1.59 |
| Weight (Gram) |
45.0 |
| Circuit Type |
G1 Programable Digital |
| Motor Type |
3 Pole Metal Brush Ferrite |
| Gear Material |
Karbonite |
| Bearing Type |
Top Ball Bearing |
| Output Shaft (type / Ømm) |
Standard 24 |
| Case Material |
Plastic |
| Dust / Water Resistance |
N / A |
| Connector Gauge (AWG) / Strand Count |
25 / 40 |
