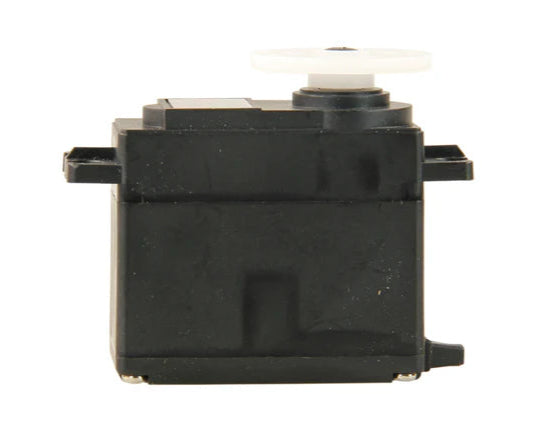

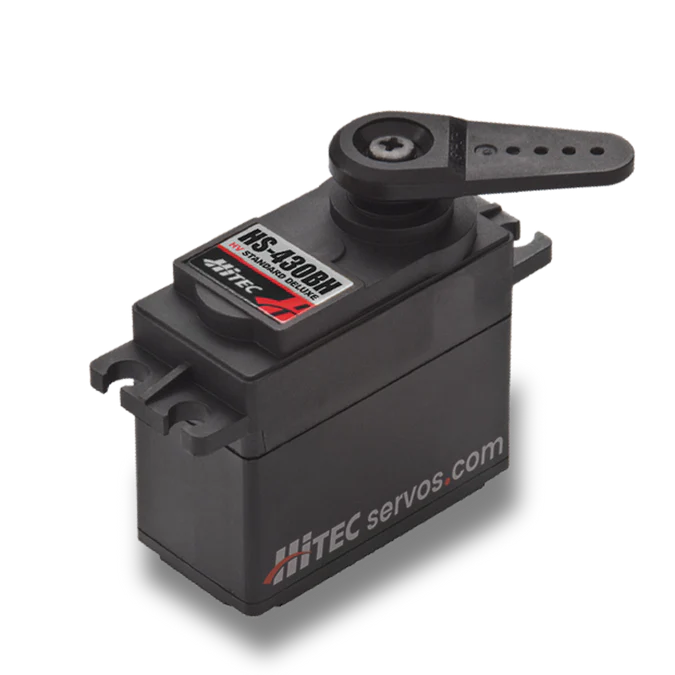

Hitec HS430BH Standard Analogue Cored Servo 45.5g 5kg/0.14s 6.0V - 7.4V 2213262

Save 15%
HitecSKU: 2213262
Price:
£15.30 £17.99
Stock:
In stock at supplier warehouse.  Lead time: 2-3 days

UK Customers = This product includes VAT.

Non-UK Customers = This product excludes UK VAT – Other taxes may apply.

Description

Specifications:

Performance Specifications
Operating Voltage Range (Volts DC) 6.0V ~ 7.4V
Speed (Second @ 60°) 0.16 ~ 0.14
Maximum Torque Range oz. / in. 57 ~ 69
Maximum Torque Range kg. / cm. 4.1 ~ 5.0
Current Draw at Idle 8 mA
No Load Operating Current Draw 160 mA
Stall Current Draw 850 mA
Dead Band Width 8 µs



Physical Specifications

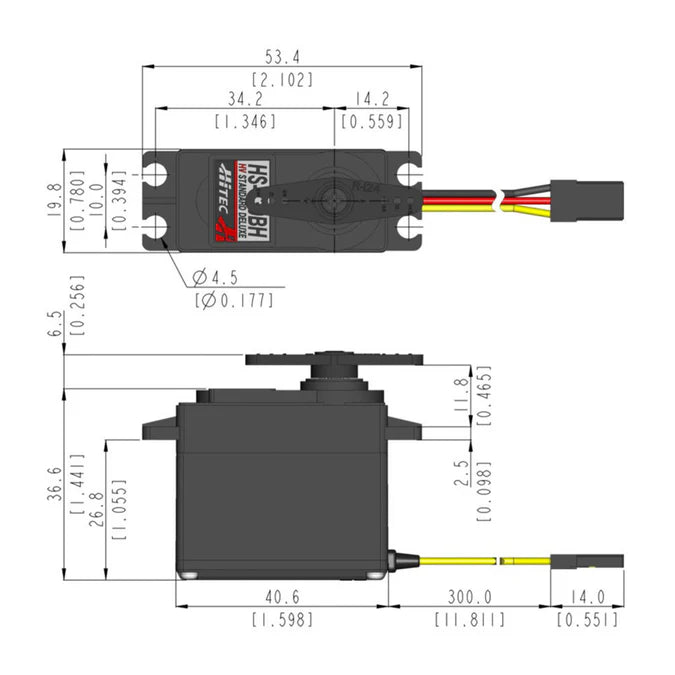

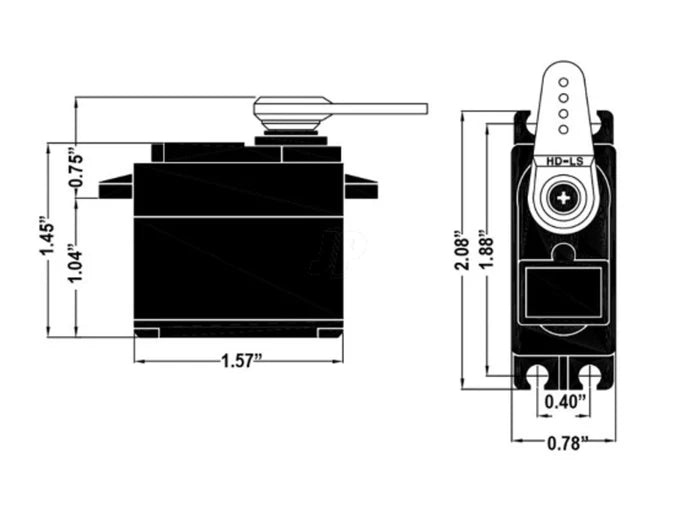

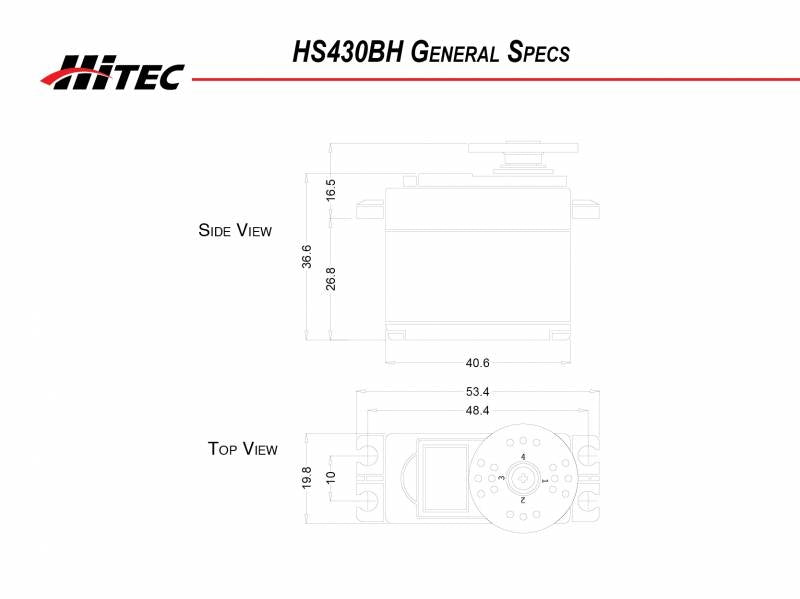

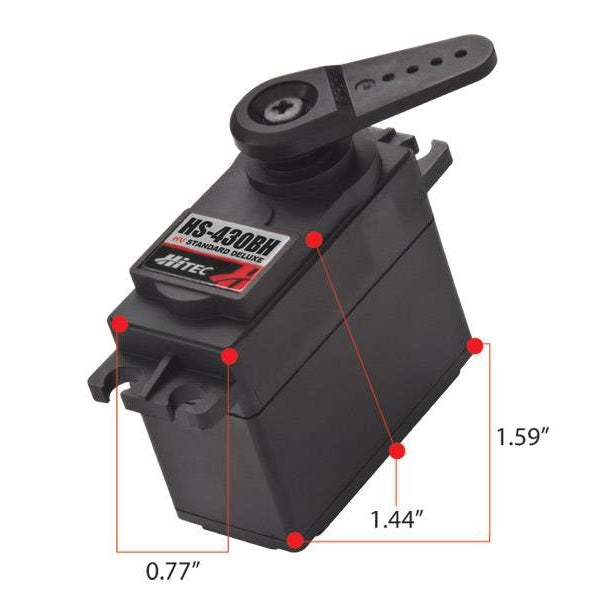

Dimensions (Inches) 1.59 x 0.77 x 1.44
Dimensions (Metric) 40.6 x 19.8 x 36.6
Weight (Ounces) 1.60
Weight (Gram) 45.5
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
  • Series - Sport
  • Size - Standard
  • Dimensions - 40.6×19.8×36.6mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 45.5 g
  • Voltage Range - 6.0V - 7.4V
  • Max Torque (kg/cm) - 5
  • Max Speed (sec/60°) - 0.14
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - Top Ball Bearing
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
Data Sheet
