Hitec HS-325HB Standard Analogue Cored Servo 42.81g 3.7kg/0.15s 2213230

Save 13%
HitecSKU: 2213230

Price:
Sale price£21.08 Regular price£24.25
Stock:
Only 2 units left
 More payment options

Description

Hitec HS-325HB Standard Analogue Cored Servo 42.81g 3.7kg/0.15s 2213230

The HS-325HB Standard Heavy Duty Servo features a ball bearing output shaft for long life and positive centring. Hitec’s HS-325HB is offered with Karbonite™ gears, that after hundreds of thousands of cycles won’t show any signs of wear. With 49 oz./in. of torque at 6 Volts, the HS-325HB is a great choice for Sport pilots all over the World!

Applications: Heli's and Aircraft up to 72" or up to 12lbs when using just one servo per control surface.

Note: Be aware that high vibration gas (not glow) engines combined with large contol surfaces and large thows (3D models) can put undue strain on the gears. Metal geared servos are recommended for these applications even if under 12lbs.

Warning: Do not use thread lockers on Karbonite geared servo as it will cause the output shaft to fail.

Features

  • Economical, Ball Bearing, Sport Servo
  • Tough Karbonite Gears
  • Ball Bearing-Supported Output Shaft
  • Long life potentiometer
  • Top ball bearings
  • Two heavy duty resin gears
Motor Type: 3 Pole
Bearing Type: Top Ball Bearing
Speed (4.8V/6.0V): 0.19 / 0.15 sec @ 60 deg.
Torque oz./in. (4.8V/6.0V): 42 / 51
Torque kg./cm. (4.8V/6.0V): 3.0 / 3.7

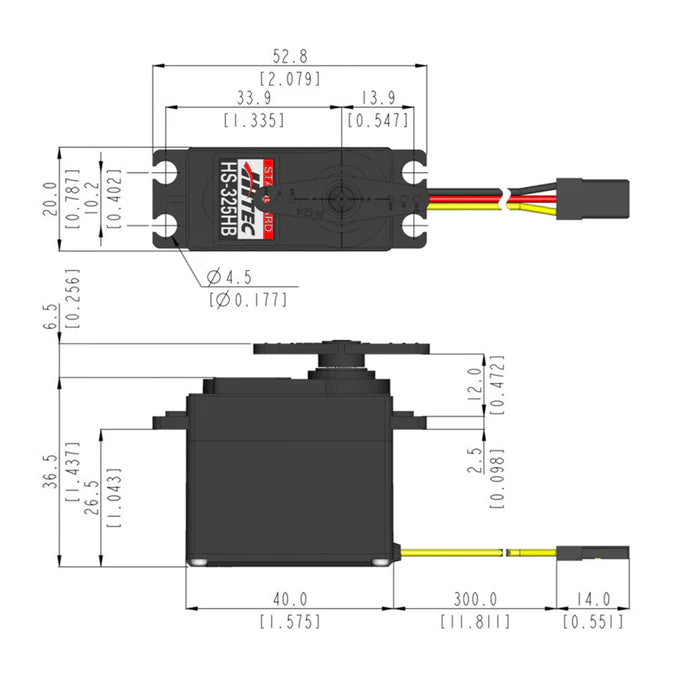

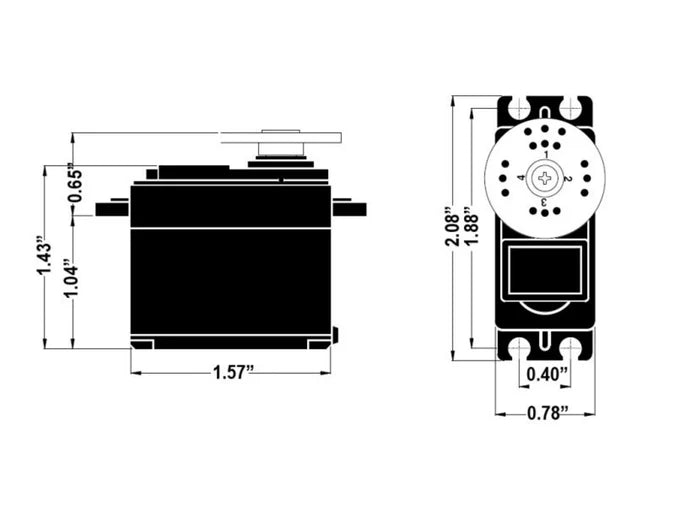

Size in Inches: 1.57 x 0.78 x 1.43
Size in Millimeters: 39.88 x 19.81 x 36.32
Weight ounces: 1.51
Weight grams: 42.81
  • Series - Sport
  • Size - Standard
  • Dimensions - 39.88×19.81×36.32mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 42.81 g
  • Max Torque (kg/cm) - 3.7
  • Max Speed (sec/60°) - 0.15
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Karbonite
  • Case - Engineering Plastic
  • Bearings - Top Ball Bearing
  • Motor Detail - 3 Pole
  • Gear Detail - 2x Karbonite
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
