Hitec HS-225BB Mini Analogue Cored Servo 27g 4.8kg/0.11s 4.8V - 6.0V 2212010

Save 13%
HitecSKU: 2212010
Price:
£16.50 £18.99
Stock:
In stock (6 units), ready to be shipped
 More payment options

Description

Hitec HS-225BB Mini Analogue Cored Servo 27g 4.8kg/0.11s 4.8V - 6.0V 2212010

The analog HS-225BB represents a good value with performance that rivals other larger and more expensive servos. Ideal for applications that call for a small, lightweight, high speed, high torque servo, the HS-225BB high performance mini servo features a top ball bearing and is built with state-of-the-art SMT technology.

Features:

  • Full Size Performance in a Mini Package
  • Durable Nylon Gears
  • Top Ball Bearings
  • Perfect for Applications Requiring a Small, Lightweight, High Speed, High Torque Servo
Performance Specifications
Operating Voltage Range (Volts DC) 4.8V ~ 6.0V
Speed (Second @ 60°) 0.14 ~ 0.11
Maximum Torque Range oz. / in. 54 ~ 67
Maximum Torque Range kg. / cm. 3.9 ~ 4.8
Current Draw at Idle 8 mA
No Load Operating Current Draw 300 mA
Stall Current Draw 1,200 mA
Dead Band Width 8 µs



Physical Specifications

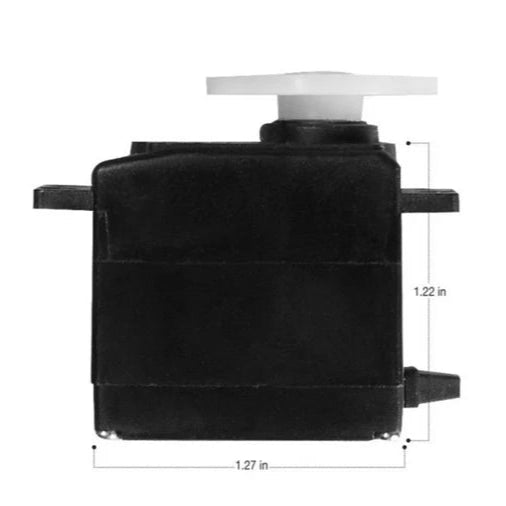

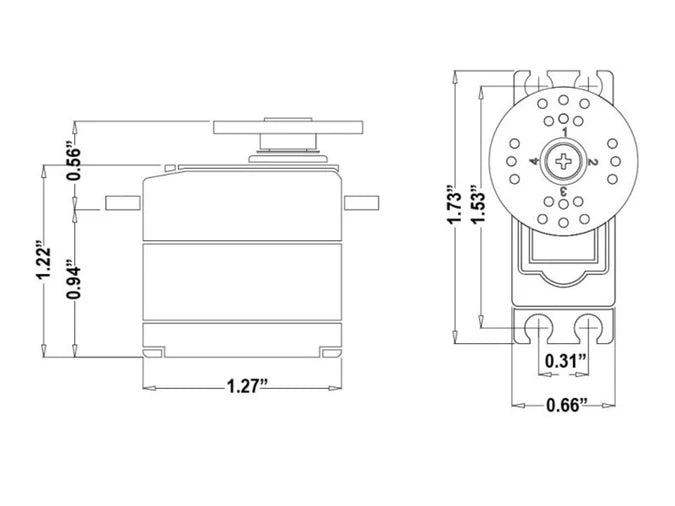

Dimensions (Inches) 1.27 x 0.66 x 1.22

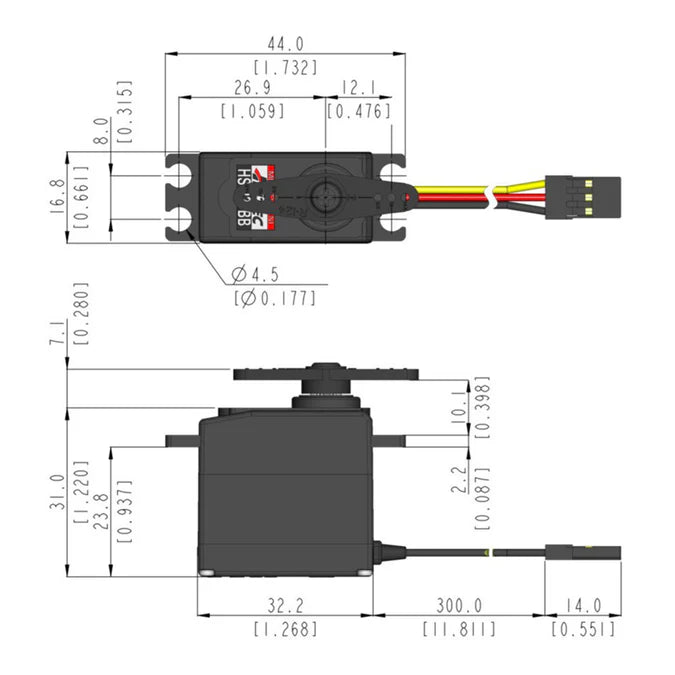

Dimensions (Metric) 32.4 x 16.8 x 31.0
Weight (Ounces) 0.95
Weight (Gram) 27.0
Circuit Type HT7003 Analog SMT
Motor Type 3 Pole Metal Brush Ferrite
Gear Material Nylon
Bearing Type Top Ball Bearing
Output Shaft (type / Ømm) Standard 24
Case Material Plastic
Dust / Water Resistance N / A
Connector Gauge (AWG) / Strand Count 25 / 40
  • Size - Mini
  • Dimensions - 32.4×16.8×31mm
  • Command Protocol - PWM
  • Circuit - Analogue
  • Weight - 27 g
  • Voltage Range - 4.8V - 6.0V
  • Max Torque (kg/cm) - 4.8
  • Max Speed (sec/60°) - 0.11
  • Spline - 24T (Ø6mm)
  • Motor - Cored
  • Gears - Nylon
  • Case - Engineering Plastic
  • Bearings - Top Ball Bearing
  • Circuit Detail - HT7003 Analog SMT
  • Motor Detail - 3 Pole Metal Brush Ferrite
  • Gear Detail - 4x All Heavy Duty Resin
  • Compatible Horns - Micro Horn [M-I, M-X, M-O, R-O, R-X, R-I, R-D, R-C] & Heavy Duty Horn [HD-IL, HD-IM, HD-IS, HD-LS, HD-IG, HD-LL, HD-LG, HD-OS] & Metal Horn [R-ML] & Quarter Scale Horn [Q-O, Q-I, Q-X] & Super Horn [R-XA] & Spool Drum Horn & Sail Arm Horn
