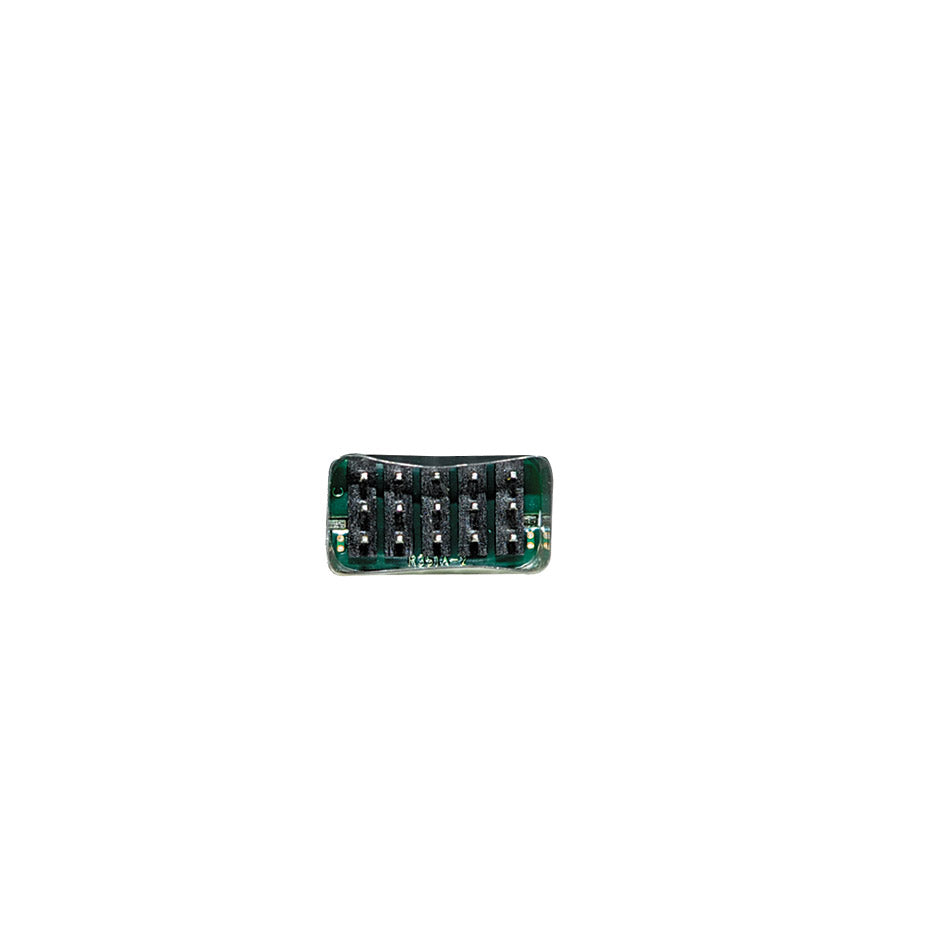

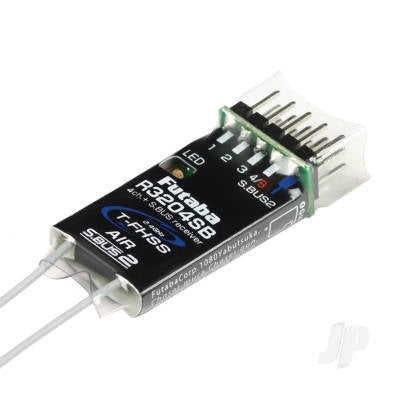

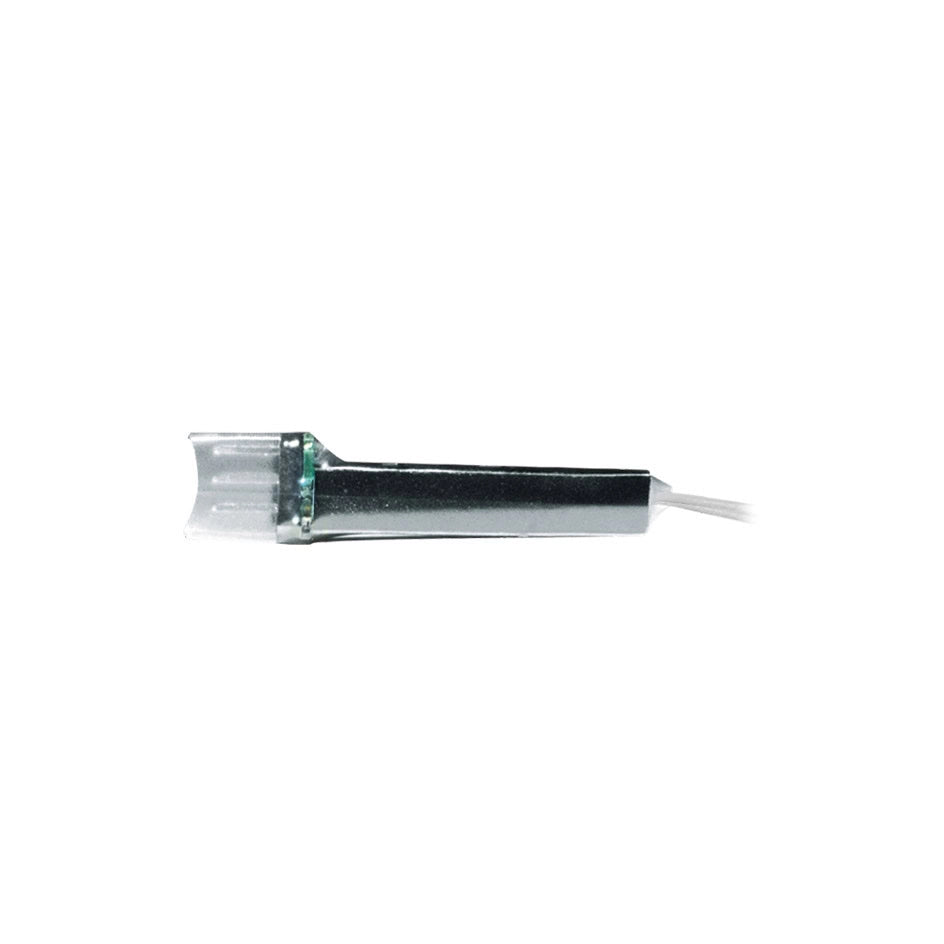

Futaba R3204SB 4 Channel Receiver T-FHSS (S.Bus) FUT05102738-3
The particularly small and light futaba receiver. 4/18-channel T-FHSS 2.4 GHz telemetry receiver with S.BUS2
New version of the R3104SB. Not suitable for FASST transmitters or S-FHSS transmitters. 4 PWM / 18 S.BUS Servo functions
With the Futaba R3204SB, Futaba offers a particularly light and small receiver with telemetry. Due to its narrow design, it is ideal for use in narrow hulls and, due to its low weight of only 4.8 g, ideally suited for indoor models.
Analog or digital servies can be connected to ports 1 to 4. To enable shorter response times, the servo output signal for digital servos can be changed to 6.3 ms (instead of 16 ms for analog servos).
Up to 18 programmable S.BUS servos or other S.BUS components such as gyros, flybarless systems or governor can be connected to the S.BUS port. All S.BUS servos are digitally addressed and can be connected with a single power line (3 wires). Although 4 servos are installed in a wing, only one servo cable enters the wing. This keeps the complete cabling very simple and clear. If analog servos are to be used on the S.BUS, they must be connected via PWM adapter.
The R3204SB has antenna diversity. The receiver constantly compares the antenna on which the better signal is applied and switches to it at lightning speed.
S.BUS2 sensors can be connected to the S.BUS2 port. They transmit up to 32 telemetry data sets. The receiver has an integrated telemetry transmitter that transmits the data to the transmitter. In this way, the measured values can be displayed or output acoustically at the transmitter. In addition, the receiver automatically transmits the voltage of the receiver power supply (voltage sensor is integrated) and the strength of the receive signal.
FEATURES:
4/18-channel FASSTest / FASST receiver
Telemetry with S.BUS2
Telemetry with 32 channels
S.BUS / S.BUS2 port
Hi-Voltage (HV)
Antenna diversity
Impulse switching digital servos
Weight: 4.8 g
Input Voltage: 3.5-8.4 V
